STGFW40 Series

Catalog

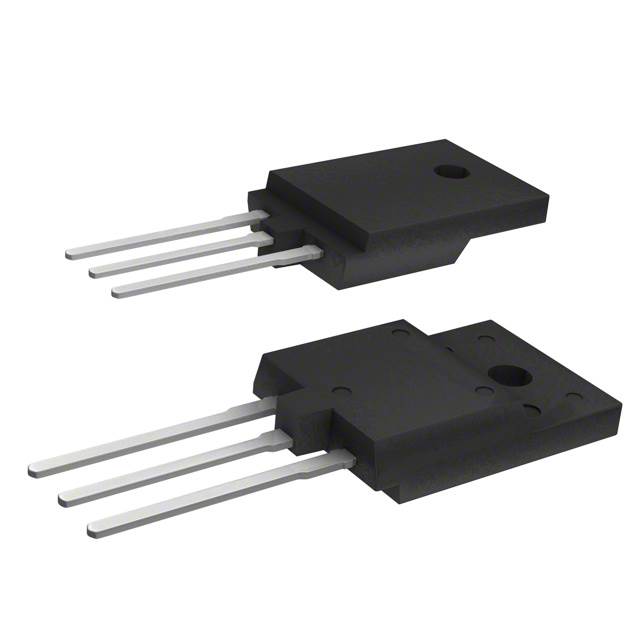

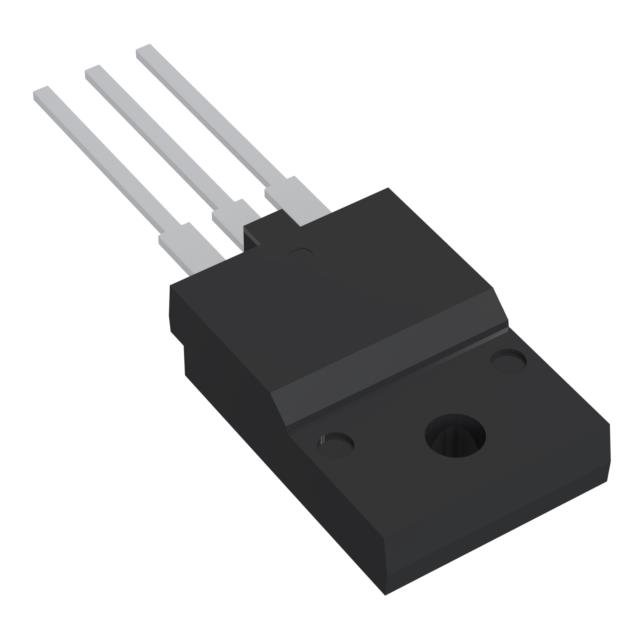

TRENCH GATE FIELD-STOP 650 V, 40 A HIGH SPEED HB SERIES IGBT

Part	Current - Collector (Ic) (Max) [Max]	Td (on/off) @ 25°C [custom]	Td (on/off) @ 25°C [custom]	Test Condition	Vce(on) (Max) @ Vge, Ic	Mounting Type	IGBT Type	Operating Temperature [Max]	Operating Temperature [Min]	Gate Charge	Supplier Device Package	Switching Energy	Power - Max [Max]	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Vce(on) (Max) @ Vge, Ic [Max]	Td (on/off) @ 25°C
STMicroelectronics STGFW40H65FB	80 A	142 ns	40 ns	5 Ohm 15 V 40 A 400 V	2 V	Through Hole	Trench Field Stop	175 °C	-55 °C	210 nC	TO-3PF-3	363 µJ 498 µJ	62.5 W	TO-3P-3 Full Pack	650 V
STMicroelectronics STGFW40V60F	80 A			10 Ohm 15 V 40 A 400 V		Through Hole	Trench Field Stop	175 °C	-55 °C	226 nC	TO-3PF	411 µJ 456 µJ	62.5 W	TO-3P-3 Full Pack	600 V	2.3 V	52 ns 208 ns
