G05N Series

Catalog

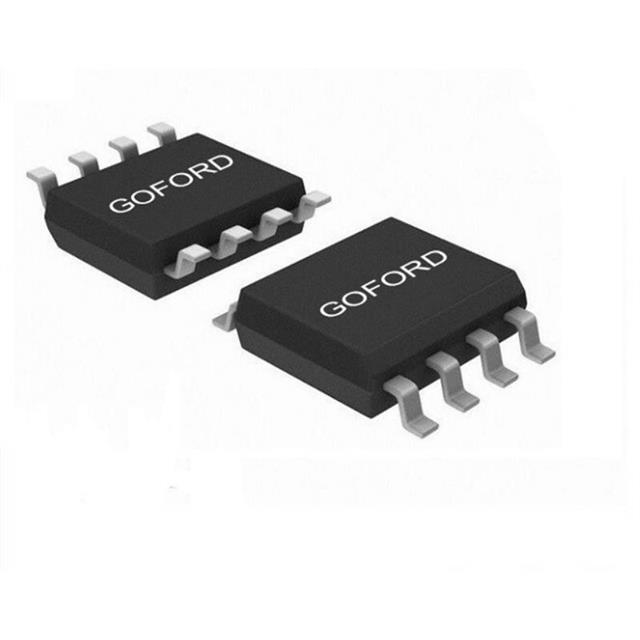

MOSFET 2N-CH 60V 5A 8SOP

Part	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Gate Charge (Qg) (Max) @ Vgs	Package / Case	Package / Case	Package / Case	Current - Continuous Drain (Id) @ 25°C	Technology	Supplier Device Package	Rds On (Max) @ Id, Vgs	Mounting Type	Power - Max	Input Capacitance (Ciss) (Max) @ Vds
Goford Semiconductor G05N06S2	2 N-Channel 2 N-Channel (Dual)	150 °C	-55 °C	2.5 V	60 V	1374 pF	22 nC 26 nC	0.154 in	8-SOIC	3.9 mm	5 A	MOSFET (Metal Oxide)	8-SOP	35 mOhm	Surface Mount
Goford Semiconductor G05NP06S2	N and P-Channel	150 °C	-55 °C	2 V 2.2 V	60 V		22 nC 37 nC	0.154 in	8-SOIC	3.9 mm	3.1 A 5 A	MOSFET (Metal Oxide)	8-SOP	36 mOhm 80 mOhm	Surface Mount	1.9 W 2.5 W	1336 pF 1454 pF
