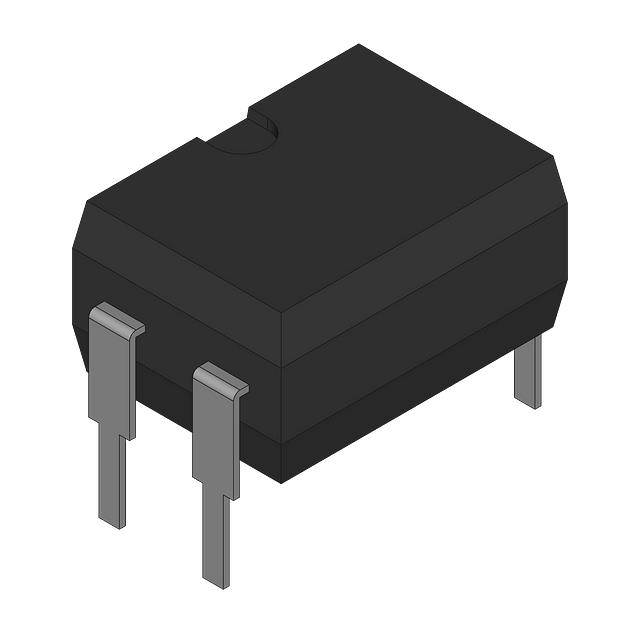

FOD817D Series

4-Pin DIP Phototransistor Optocouplers

Catalog

4-Pin DIP Phototransistor Optocouplers

Part	Output Type	Current Transfer Ratio (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Number of Channels	Current - DC Forward (If) (Max)	Package / Case	Vce Saturation (Max)	Voltage - Output (Max) [Max]	Current - Output / Channel	Input Type	Current Transfer Ratio (Max)	Mounting Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current Transfer Ratio (Max) [Max]
ON Semiconductor FOD817C3S	1.81 mOhm	200 %	-55 °C	110 °C	4-SMD	1	50 mA	4-SMD Gull Wing	200 mV	70 V	50 mA	DC	400 %	Surface Mount	3 µs	4 µs
ON Semiconductor FOD817DS	1.81 mOhm	300 %	-55 °C	110 °C	4-SMD	1	50 mA	4-SMD Gull Wing	200 mV	70 V	50 mA	DC		Surface Mount	3 µs	4 µs	600 %
ON Semiconductor FOD817ASD_F117
ON Semiconductor FOD817A3SD	1.81 mOhm	80 %	-55 °C	110 °C	4-SMD	1	50 mA	4-SMD Gull Wing	200 mV	70 V	50 mA	DC		Surface Mount	3 µs	4 µs	160 %
ON Semiconductor FOD8173SD	1.81 mOhm	50 %	-55 °C	110 °C	4-SMD	1	50 mA	4-SMD Gull Wing	200 mV	70 V	50 mA	DC		Surface Mount	3 µs	4 µs	600 %
ON Semiconductor FOD817D300	1.81 mOhm	300 %	-55 °C	110 °C	4-DIP	1	50 mA	4-DIP (0.300" 7.62mm)	200 mV	70 V	50 mA	DC		Through Hole	3 µs	4 µs	600 %
ON Semiconductor FOD817A3S	1.81 mOhm	80 %	-55 °C	110 °C	4-SMD	1	50 mA	4-SMD Gull Wing	200 mV	70 V	50 mA	DC		Surface Mount	3 µs	4 µs	160 %
ON Semiconductor FOD817300	1.81 mOhm	50 %	-55 °C	110 °C	4-DIP	1	50 mA	4-DIP (0.300" 7.62mm)	200 mV	70 V	50 mA	DC		Through Hole	3 µs	4 µs	600 %
ON Semiconductor FOD817D	1.81 mOhm	300 %	-55 °C	110 °C	4-DIP	1	50 mA	4-DIP (0.300" 7.62mm)	200 mV	70 V	50 mA	DC		Through Hole	3 µs	4 µs	600 %
ON Semiconductor FOD817300W	1.81 mOhm	50 %	-55 °C	110 °C	4-DIP	1	50 mA	4-DIP	200 mV	70 V	50 mA	DC		Through Hole	3 µs	4 µs	600 %

Catalog

4-Pin DIP Phototransistor Optocouplers

Key Features

• AC Input Response (FOD814)

• Current Transfer Ratio in Selected Groups:

• FOD814: 20-300%

• FOD814A: 50-150%

• FOD817: 50-600%

• FOD817A: 80-160%

• FOD817B: 130-260%

• FOD817C: 200-400%

• FOD817D: 300-600%

• Minimum BVCEO of 70 V Guaranteed

• Safety and Regulatory Approvals

• UL1577, 5,000 VACRMSfor 1 Minute

• DIN EN/IEC60747-5-5

Description

The FOD814 consists of two gallium arsenide infrared emitting diodes, connected in inverse parallel, driving a silicon phototransistor output in a 4-pin dual in-line package. The FOD817 Series consists of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 4-pin dual in-line package.
