RGTH40TK65D Series

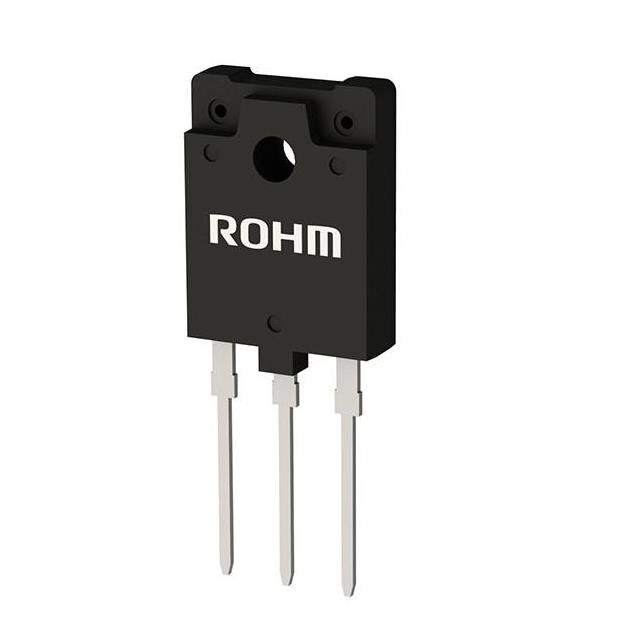

High-Speed Switching Type, 650V 20A, FRD Built-in, TO-3PFM, Field Stop Trench IGBT

Catalog

High-Speed Switching Type, 650V 20A, FRD Built-in, TO-3PFM, Field Stop Trench IGBT

Part	Test Condition	Power - Max [Max]	Current - Collector Pulsed (Icm)	Mounting Type	Vce(on) (Max) @ Vge, Ic	Package / Case	Current - Collector (Ic) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Collector Emitter Breakdown (Max)	Supplier Device Package	Td (on/off) @ 25°C	Gate Charge	IGBT Type	Current - Collector (Ic) (Max)	Reverse Recovery Time (trr)
Rohm Semiconductor RGTH40TS65GC13	10 Ohm 15 V 20 A 400 V	144 W	80 A	Through Hole	2.1 V	TO-247-3	40 A	-40 C	175 °C	650 V	TO-247G	22 ns 73 ns	40 nC	Trench Field Stop
Rohm Semiconductor RGTH40TK65GC11	10 Ohm 15 V 20 A 400 V	56 W	80 A	Through Hole	2.1 V	SC-93-3 TO-3PFM		-40 C	175 °C	650 V	TO-3PFM	22 ns 73 ns	40 nC	Trench Field Stop	23 A
Rohm Semiconductor RGTH40TK65DGC11	10 Ohm 15 V 20 A 400 V	56 W	80 A	Through Hole	2.1 V	SC-93-3 TO-3PFM		-40 C	175 °C	650 V	TO-3PFM	22 ns 73 ns	40 nC	Trench Field Stop	23 A	58 ns
Rohm Semiconductor RGTH40TS65DGC11	10 Ohm 15 V 20 A 400 V	144 W	80 A	Through Hole	2.1 V	TO-247-3	40 A	-40 C	175 °C	650 V	TO-247N	22 ns 73 ns	40 nC	Trench Field Stop		58 ns

Catalog

High-Speed Switching Type, 650V 20A, FRD Built-in, TO-3PFM, Field Stop Trench IGBT

Key Features

• Low Collector-Emitter Saturation Voltage, High Speed Switching, Low Switching Loss & Soft Switching, Built in Very Fast & Soft Recovery FRD (RFN-Series), Pb-free Lead Plating; RoHS Compliant

Description

ROHM's IGBT products will contribute to energy saving high efficiency and a wide range of high voltage and high-current applications.
