NST3904F3T5G Series

Dual NPN Bipolar Transistor

Catalog

Dual NPN Bipolar Transistor

Part	Frequency - Transition	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max)	Mounting Type	Package / Case	Current - Collector (Ic) (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Operating Temperature [Min]	Operating Temperature [Max]	Power - Max [Max]	Transistor Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Cutoff (Max) [Max]
ON Semiconductor NST3904DXV6T1	300 MHz	SOT-563	40 V	Surface Mount	SOT-563 SOT-666	200 mA	300 mV	-55 °C	150 °C	500 mW	2 NPN (Dual)	100
ON Semiconductor NST3904F3T5G	200 MHz	SOT-1123		Surface Mount	SOT-1123	200 mA	300 mV	-55 °C	150 °C	290 mW	NPN	100	40 V
ON Semiconductor NSVT3904DP6T5G	200 MHz	SOT-963	40 V	Surface Mount	SOT-963	200 mA	300 mV	-55 °C	150 °C	350 mW	2 NPN (Dual)	100

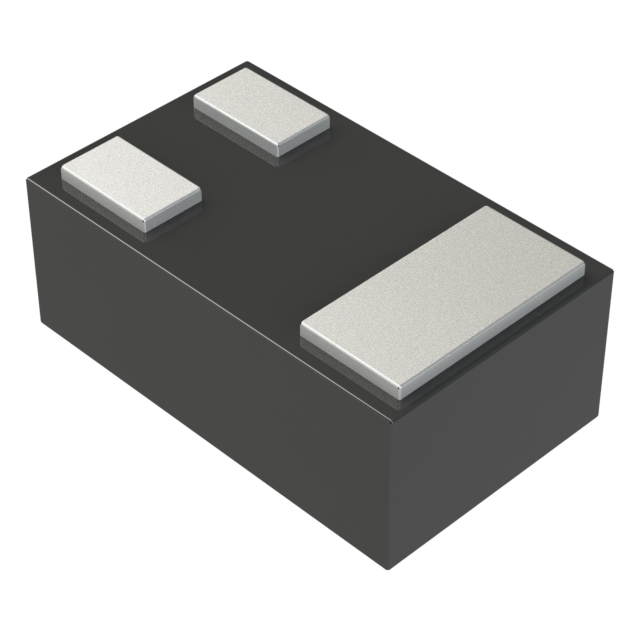

ON Semiconductor NST3904MX2T5G	250 MHz	3-X2DFN (1x0.6)		Surface Mount	3-XFDFN	200 mA	300 mV	-55 °C	150 °C	165 mW	NPN	100	40 V	50 nA
ON Semiconductor NSVT3904DXV6T1G	300 MHz	SOT-563	40 V	Surface Mount	SOT-563 SOT-666	200 mA	300 mV	-55 °C	150 °C	500 mW	2 NPN (Dual)	100

Catalog

Dual NPN Bipolar Transistor

Key Features

• These are Pb-Free Devices

• S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

Description

The Dual NPN Bipolar Transistor device is a spin off of our popular SOT23, SOT323, SOT563 three leaded device. It is designed for general purpose amplifier applications and is housed in the SOT963 six leaded surface mount package. With two discrete devices in one package, this device is ideal for low power surface mount applications where board space is at a premium.
