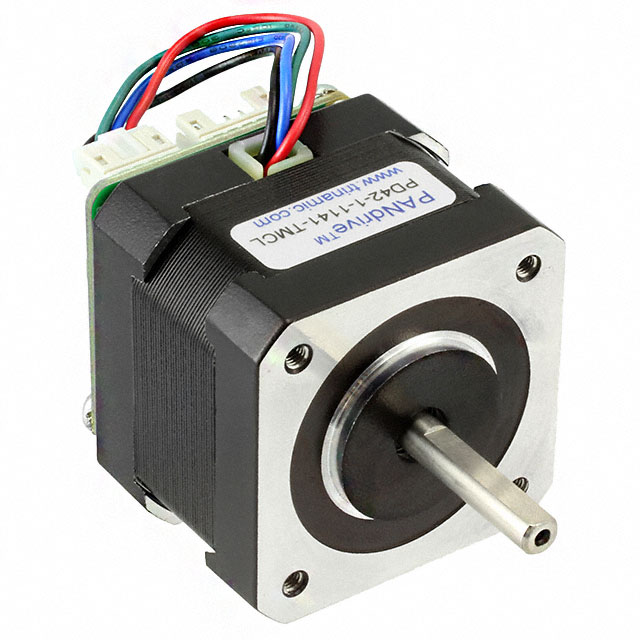

PD42-1 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

SERVOMOTOR 4000 RPM 24V

Part	Voltage - Rated	Function	RPM	Length - Shaft and Bearing	Length - Shaft and Bearing	Mounting Hole Spacing	Mounting Hole Spacing	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	Type	Motor Type	NEMA Frame Size	Coil Type	Steps per Revolution	Weight	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Step Angle	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Current Rating (Amps)	Rotor Inertia	Coil Resistance	Termination Style	Weight

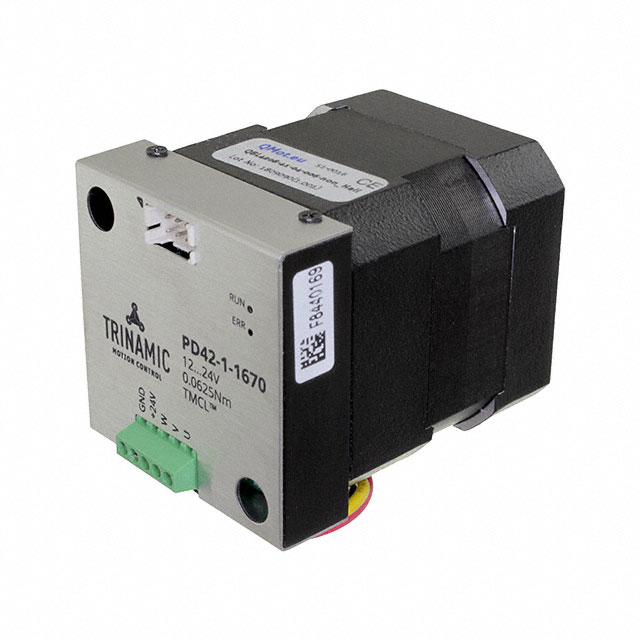

Analog Devices Inc./Maxim Integrated PD42-1-1670-TMCL	24 VDC	Servomotor	4000 RPM	0.866 in	22 mm	0.988 in	25.1 mm	0.197 in	5 mm	-20 C	40 °C	42 mm	1.654 "	1.654 in	42 mm	Flatted Shaft Integrated Controller	DC Motor	Brushless (BLDC)
Analog Devices Inc./Maxim Integrated PD42-1-1140-TMCL	24 VDC							0.197 in	5 mm			42 mm	1.654 "	1.654 in	42 mm	Flatted Shaft Integrated Controller	Hybrid		17	Bipolar	200	0.486 lb 220.45 g	31.2 oz-in	220 mNm	1.8 °	24 mm	0.945 in	2 A
Analog Devices Inc./Maxim Integrated PD42-1-1140-CANOPEN	24 VDC							0.197 in	5 mm			42 mm	1.654 "	1.654 in	42 mm	Flatted Shaft Integrated Controller	Hybrid		17	Bipolar	200	0.486 lb 220.45 g	31.2 oz-in	220 mNm	1.8 °	24 mm	0.945 in	2 A
Analog Devices Inc./Maxim Integrated PD42-1-1240-TMCL	24 VDC					1.22 in	31 mm	0.197 in	5 mm	-20 C	50 °C	42 mm	1.654 "	1.654 in	42 mm	Flatted Shaft Integrated Controller	Hybrid		17	Bipolar	200		31.15 oz-in	220 mNm	1.8 °	24 mm	0.945 in	2 A	35 gcm²	1 Ohms
Analog Devices Inc./Maxim Integrated PD42-1-1370-TMCL	2 VDC					1.22 in	31 mm	0.197 in	5 mm	-20 C	50 °C	42 mm	1.654 "	1.654 in	42 mm	Flatted Shaft Integrated Controller	Hybrid		17	Bipolar	200		31.16 oz-in	220 mNm	1.8 °	24 mm	0.945 in	2 A	35 gcm²	1 Ohms	Connector
Analog Devices Inc./Maxim Integrated PD42-1-1070	24 VDC					1.22 in	30.99 mm			-20 C	50 °C	42 mm	1.654 "	1.654 in	42 mm	Integrated Controller Round Shaft	Hybrid		17	Bipolar	200	0.573 lb	31.2 oz-in	220 mNm	1.8 °			1 A	35 gcm²	1 Ohms	Connector	259.91 g
