MCP9800 Series

Catalog

TEMPERATURE SENSOR IC, DIGITAL, ± 1°C, -55 °C, 125 °C, SOT-23, 5 PINS

Part	Output Type	Package / Case	Accuracy - Highest (Lowest)	Sensing Temperature - Local [Max]	Sensing Temperature - Local [Min]	Resolution	Mounting Type	Features	Sensor Type	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Test Condition [Min]	Test Condition [Min]	Test Condition [Max]	Test Condition [Max]	Sensitivity	Supplied Contents	Interface	Utilized IC / Part	Sensing Range [Min]	Sensing Range [Max]	Grade	Qualification
Microchip Technology MCP9800A0T-M/OT	I2C/SMBus	SC-74A SOT-753	1 °C 3 °C	125 °C	-55 ¯C	11 b	Surface Mount	One-Shot Output Switch Programmable Limit Programmable Resolution Shutdown Mode	Digital Local	SOT-23-5	2.7 V	5.5 V	-55 °C	125 °C	-10 °C	-55 °C	85 °C	125 °C
Microchip Technology MCP9800DM-DL									Temperature		2.7 V	5.5 V							0.5 °C	Board(s)	I2C SMBus	MCP9800	-55 °C	125 °C
Microchip Technology MCP9800A5T-M/OT	I2C/SMBus	SC-74A SOT-753	1 °C 3 °C	125 °C	-55 ¯C	11 b	Surface Mount	One-Shot Output Switch Programmable Limit Programmable Resolution Shutdown Mode	Digital Local	SOT-23-5	2.7 V	5.5 V	-55 °C	125 °C	-10 °C	-55 °C	85 °C	125 °C

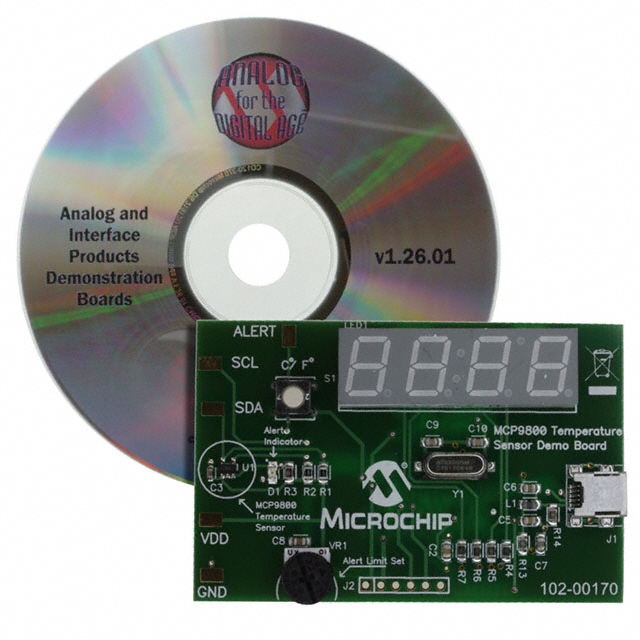

Microchip Technology MCP9800DM-TS1									Temperature		2.7 V	5.5 V							0.5 °C	Board(s)	I2C SMBus	MCP9800	-55 °C	125 °C
Microchip Technology MCP9800DM-PCTL									Temperature		2.7 V	5.5 V							0.5 °C	Board(s)	I2C SMBus	MCP9800	-55 °C	125 °C
Microchip Technology MCP9800A5T-M/OTVAO	I2C/SMBus	SC-74A SOT-753	1 °C 3 °C	125 °C	-55 ¯C	11 b	Surface Mount	One-Shot Output Switch Programmable Limit Programmable Resolution Shutdown Mode	Digital Local	SOT-23-5	2.7 V	5.5 V	-55 °C	125 °C	-10 °C	-55 °C	85 °C	125 °C							Automotive	AEC-Q100
Microchip Technology MCP9800A5T-M/OTG	I2C/SMBus	SC-74A SOT-753	1 °C 3 °C	125 °C	-55 ¯C	11 b	Surface Mount	One-Shot Output Switch Programmable Limit Programmable Resolution Shutdown Mode	Digital Local	SOT-23-5	2.7 V	5.5 V	-55 °C	125 °C	-10 °C	-55 °C	85 °C	125 °C
Microchip Technology EV15S71A									Temperature		2.7 V	5.5 V							0.5 °C	Board(s)	I2C SMBus	MCP9800	-55 °C	125 °C
