FDMC7678 Series

N-Channel Dual CoolTM 33 PowerTrench® MOSFET 30V, 40A, 2.2mΩ

Catalog

N-Channel Dual CoolTM 33 PowerTrench® MOSFET 30V, 40A, 2.2mΩ

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max)	Package / Case	Gate Charge (Qg) (Max) @ Vgs [Max]	Mounting Type	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On)	Vgs(th) (Max) @ Id	Vgs (Max)	Rds On (Max) @ Id, Vgs	FET Type	Technology	Supplier Device Package	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs	Vgs(th) (Max) @ Id [Max]

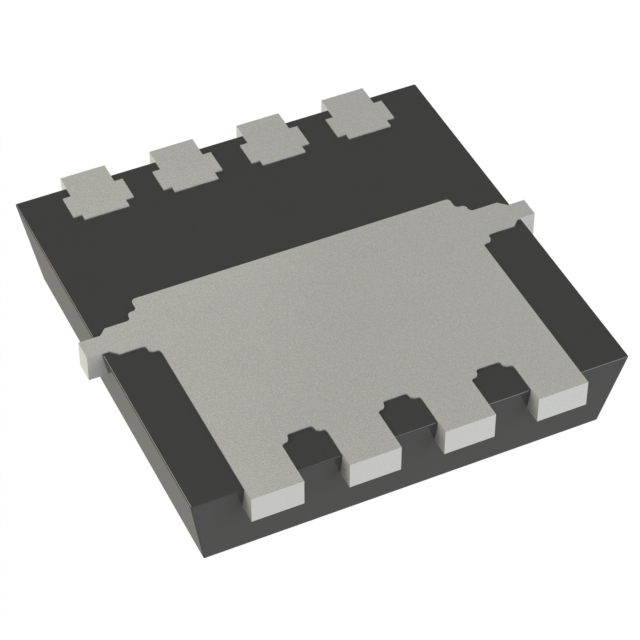

ON Semiconductor FDMC7678	-55 °C	150 °C	17.5 A 19.5 A	2.3 W 31 W	8-PowerWDFN	39 nC	Surface Mount	30 V	4.5 V 10 V	3 V	20 V	5.3 mOhm	N-Channel	MOSFET (Metal Oxide)	8-MLP (3.3x3.3)	2410 pF
ON Semiconductor FDMC7680	-55 °C	150 °C	14.8 A	2.3 W 31 W	8-PowerWDFN		Surface Mount	30 V	4.5 V 10 V	3 V	20 V	7.2 mOhm	N-Channel	MOSFET (Metal Oxide)	8-MLP (3.3x3.3)	2855 pF	42 nC
ON Semiconductor FDMC7678-L701	-55 °C	150 °C	17.5 A 19.5 A	2.3 W 31 W	8-PowerWDFN	39 nC	Surface Mount	30 V	4.5 V 10 V	3 V	20 V	5.3 mOhm	N-Channel	MOSFET (Metal Oxide)	8-MLP (3.3x3.3)	2410 pF

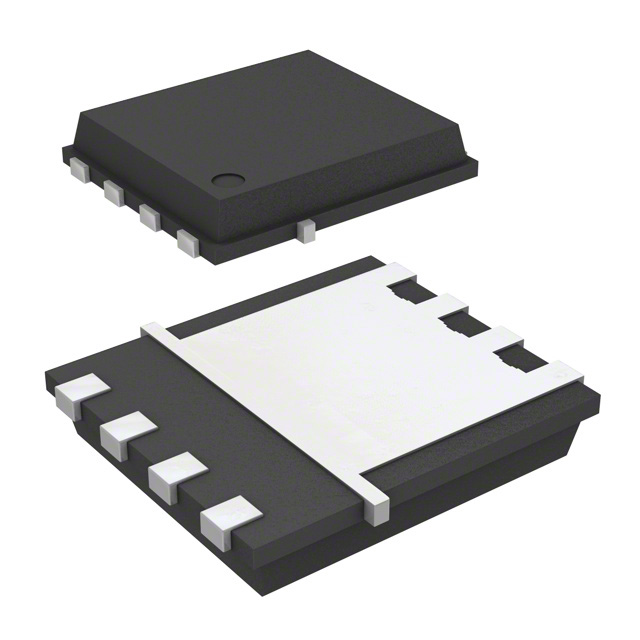

ON Semiconductor FDMC7660DC	-55 °C	150 °C	30 A 40 A	3 W 78 W	8-PowerTDFN		Surface Mount	30 V	4.5 V 10 V	2.5 V	20 V	2.2 mOhm	N-Channel	MOSFET (Metal Oxide)	Dual Cool ™ 33	5170 pF	76 nC
ON Semiconductor FDMC7660S	-55 °C	150 °C	20 A 40 A	2.3 W 41 W	8-PowerTDFN		Surface Mount	30 V	4.5 V 10 V		20 V	2.2 mOhm	N-Channel	MOSFET (Metal Oxide)	Power33	4325 pF	66 nC	2.5 V

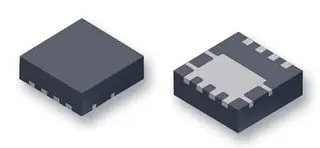

ON Semiconductor FDMC7660	-55 °C	150 °C	20 A 40 A	2.3 W 41 W	8-PowerTDFN	86 nC	Surface Mount	30 V	4.5 V 10 V	2.5 V	20 V	2.2 mOhm	N-Channel	MOSFET (Metal Oxide)	Power33	4830 pF
ON Semiconductor FDMC7672_F125	-55 °C	150 °C	16.9 A 20 A	2.3 W 33 W	8-PowerWDFN		Surface Mount	30 V	4.5 V 10 V	3 V	20 V	5.7 mOhm	N-Channel	MOSFET (Metal Oxide)	8-MLP (3.3x3.3)	3890 pF	57 nC
ON Semiconductor FDMC7680	-55 °C	150 °C	14.8 A	2.3 W 31 W	8-PowerWDFN		Surface Mount	30 V	4.5 V 10 V	3 V	20 V	7.2 mOhm	N-Channel	MOSFET (Metal Oxide)	8-MLP (3.3x3.3)	2855 pF	42 nC
ON Semiconductor FDMC7660S	-55 °C	150 °C	20 A 40 A	2.3 W 41 W	8-PowerTDFN		Surface Mount	30 V	4.5 V 10 V		20 V	2.2 mOhm	N-Channel	MOSFET (Metal Oxide)	Power33	4325 pF	66 nC	2.5 V

Catalog

N-Channel Dual CoolTM 33 PowerTrench® MOSFET 30V, 40A, 2.2mΩ

Key Features

• Dual Cool™ Top Side Cooling PQFN package

• Max rDS(on)= 2.2 mΩ at VGS= 10 V, ID= 22 A

• Max rDS(on)= 3.3 mΩ at VGS= 4.5 V, ID= 18 A

• High performance technology for extremely low rDS(on)

• Termination is Lead-free and RoHS Compliant

Description

This part number is not recommended for new designs. Please apply NTTFS4C06NTAG as a replacement. This N-Channel MOSFET is produced using an advanced Power Trench®process that has been especially tailored to minimize the on-state resistance. This device is well suited for Power Management and load switching applications common in Notebook Computers and Portable Battery Packs.
