AD5684R Series

Quad, 12-BitnanoDAC+ with 2 ppm/°C On-Chip Reference and SPI Interface

Catalog

Quad, 12-BitnanoDAC+ with 2 ppm/°C On-Chip Reference and SPI Interface

Part	Number of D/A Converters	Package / Case [x]	Package / Case	Package / Case [y]	Number of Bits	Architecture	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Settling Time	Output Type	Data Interface	INL/DNL (LSB)	Reference Type	Mounting Type	Supplier Device Package	Utilized IC / Part	Supplied Contents	Number of DAC's	DAC Type
Analog Devices AD5684ARUZ	4	0.173 in	16-TSSOP	4.4 mm	12 bits	String DAC	2.7 V	5.5 V	-40 °C	105 ░C	7 µs	Voltage - Buffered	SPI	0.12 LSB 1 LSB	External	Surface Mount	16-TSSOP

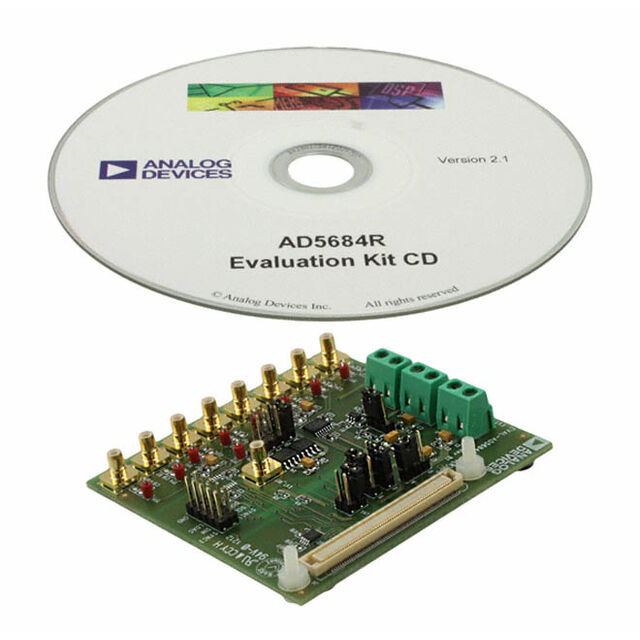

Analog Devices EVAL-AD5684RSDZ					12 bits						5 µs		SPI					AD5684R	Board(s)	4	Voltage
Analog Devices AD5684RBCPZ-RL7	4		16-WFQFN Exposed Pad CSP		12 bits	String DAC	2.7 V	5.5 V	-40 °C	105 ░C	7 µs	Voltage - Buffered	DSP SPI	0.12 LSB 1 LSB	External Internal	Surface Mount	16-LFCSP (3x3)
Analog Devices AD5684BRUZ	4	0.173 in	16-TSSOP	4.4 mm	12 bits	String DAC	2.7 V	5.5 V	-40 °C	105 ░C	7 µs	Voltage - Buffered	SPI	0.12 LSB 1 LSB	External	Surface Mount	16-TSSOP
Analog Devices AD5684RARUZ-RL7	4	0.173 in	16-TSSOP	4.4 mm	12 bits	String DAC	2.7 V	5.5 V	-40 °C	105 ░C	7 µs	Voltage - Buffered	DSP SPI	0.12 LSB 1 LSB	External Internal	Surface Mount	16-TSSOP
Analog Devices AD5684BCPZ-RL7	4		16-WFQFN Exposed Pad CSP		12 bits	String DAC	2.7 V	5.5 V	-40 °C	105 ░C	7 µs	Voltage - Buffered	SPI	0.12 LSB 1 LSB	External	Surface Mount	16-LFCSP (3x3)
Analog Devices AD5684RARUZ	4	0.173 in	16-TSSOP	4.4 mm	12 bits	String DAC	2.7 V	5.5 V	-40 °C	105 ░C	7 µs	Voltage - Buffered	DSP SPI	0.12 LSB 1 LSB	External Internal	Surface Mount	16-TSSOP
Analog Devices AD5684ARUZ-RL7	4	0.173 in	16-TSSOP	4.4 mm	12 bits	String DAC	2.7 V	5.5 V	-40 °C	105 ░C	7 µs	Voltage - Buffered	SPI	0.12 LSB 1 LSB	External	Surface Mount	16-TSSOP
Analog Devices AD5684RBRUZ-RL7	4	0.173 in	16-TSSOP	4.4 mm	12 bits	String DAC	2.7 V	5.5 V	-40 °C	105 ░C	7 µs	Voltage - Buffered	DSP SPI	0.12 LSB 1 LSB	External Internal	Surface Mount	16-TSSOP

Catalog

Quad, 12-BitnanoDAC+ with 2 ppm/°C On-Chip Reference and SPI Interface

Key Features

• High relative accuracy (INL): ±2 LSB maximum at 16 bits

• Low drift 2.5 V reference: 2 ppm/°C typical

• Tiny package: 3 mm × 3 mm, 16-lead LFCSP

• Total unadjusted error (TUE): ±0.1% of FSR maximum

• Offset error: ±1.5 mV maximum

• Gain error: ±0.1% of FSR maximum

• High drive capability: 20 mA, 0.5 V from supply rails

• User selectable gain of 1 or 2 (GAIN pin)

• Reset to zero scale or midscale (RSTSEL pin)

• 1.8 V logic compatibility

• 50 MHz SPI with readback or daisy chain

• Low glitch: 0.5 nV-sec

• Low power: 3.3 mW at 3 V

• 2.7 V to 5.5 V power supply

• −40°C to +105°C temperature range

• High relative accuracy: AD5684R (12-bit): ±1LSB INL max

• Low drift on-chip reference: 2.5V, 2ppm/°C temperature drift

• Two package options: 3mm × 3mm 16-lead LFCSP or 16-lead TSSOP

• Optical transceivers

• Base-station power amplifiers

• Process control (PLC I/O cards)

• Industrial automation

• Data acquisition systems

Description

The AD5686/AD5684, a member of thenanoDAC+™ family, is a low power, quad, 16-/12-bit buffered voltage output DAC. The device includes a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). All devices operate from a single 2.7 V to 5.5 V supply, is guaranteed monotonic by design, and exhibits less than 0.1% FSR gain error and 1.5 mV offset error performance. The devices are available in a 3 mm × 3 mm LFCSP and a TSSOP package.The AD5686/AD5684 also incorporate a power-on reset circuit and a RSTSEL pin that ensures that the DAC outputs power up to zero scale or midscale and remain at that level until a valid write takes place. Each part contains a per-channel power-down feature that reduces the current consumption of the device to 4 μA at 3 V while in power-down mode.The AD5686/AD5684 employ a versatile SPI interface that operates at clock rates up to 50 MHz, and all devices contain a VLOGICpin intended for 1.8 V/3 V/5 V logic.Product HighlightsHigh Relative Accuracy (INL): ±2 LSB maximumExcellent DC Performance.Total unadjusted error: ±0.1% of FSR maximumOffset error: ±1.5 mV maximumGain error: ±0.1% of FSR maximumTwo Package Options: 3 mm × 3 mm, 16-lead LFCSP and 16-lead TSSOPApplicationsDigital gain and offset adjustmentProgrammable attenuatorsProcess control (PLC I/O cards)Industrial automationData acquisition systems
