STGW60 Series

Catalog

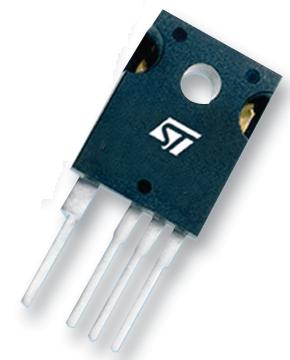

TRANSISTOR I GBT N-CH 650V 80A 4-PIN TO-247 TUBE

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Reverse Recovery Time (trr)	IGBT Type	Vce(on) (Max) @ Vge, Ic	Current - Collector (Ic) (Max) [Max]	Mounting Type	Test Condition	Gate Charge	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector Pulsed (Icm)	Switching Energy	Td (on/off) @ 25°C [custom]	Td (on/off) @ 25°C [custom]	Power - Max [Max]	Supplier Device Package	Td (on/off) @ 25°C
STMicroelectronics STGW60H65DFB-4	650 V	TO-247-4	60 ns	Trench Field Stop	2 V	80 A	Through Hole	10 Ohm 15 V 60 A 400 V	306 nC	175 °C	-55 °C	240 A	1.161 mJ 346 µJ	261 ns	65 ns	375 W	TO-247-4
STMicroelectronics STGW60H65F	650 V	TO-247-3		Trench Field Stop	1.9 V	120 A	Through Hole	10 Ohm 15 V 60 A 400 V	217 nC	150 °C	-55 °C	240 A	1.05 mJ 750 µJ			360 W	TO-247-3	65 ns 180 ns
