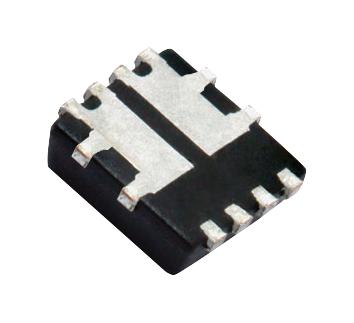

NVMFD5C674NL Series

Power MOSFET 40 V, 36 A, 11.7 mΩ, Dual N-Channel, Standard Level

Catalog

Power MOSFET 40 V, 36 A, 11.7 mΩ, Dual N-Channel, Standard Level

Part	Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Vgs(th) (Max) @ Id	Grade	Drain to Source Voltage (Vdss)	Mounting Type	Power - Max [Max]	Current - Continuous Drain (Id) @ 25°C	Package / Case	Qualification	Supplier Device Package	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs	Rds On (Max) @ Id, Vgs	Power - Max	Gate Charge (Qg) (Max) @ Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds [Max]
ON Semiconductor NVMFD5C680NLWFT1G	2 N-Channel (Dual)	-55 °C	175 ░C	MOSFET (Metal Oxide)	2.2 V	Automotive	60 V	Surface Mount	3 W 19 W	7.5 A 26 A	8-PowerTDFN	AEC-Q101	8-DFN (5x6) Dual Flag (SO8FL-Dual)	350 pF	2 nC
ON Semiconductor NVMFD5C478NLT1G	2 N-Channel (Dual)	-55 °C	175 ░C	MOSFET (Metal Oxide)	2.2 V	Automotive	40 V	Surface Mount		10.5 A 29 A	8-PowerTDFN	AEC-Q101	8-DFN (5x6) Dual Flag (SO8FL-Dual)	420 pF	8.1 nC	14.5 mOhm	3.1 W 23 W
ON Semiconductor NVMFD5C674NLT1G	2 N-Channel (Dual)	-55 °C	175 ░C	MOSFET (Metal Oxide)	2.2 V	Automotive	60 V	Surface Mount		11 A 42 A	8-PowerTDFN	AEC-Q101	8-DFN (5x6) Dual Flag (SO8FL-Dual)	640 pF		14.4 mOhm	3 W 37 W	4.7 nC
ON Semiconductor NVMFD5C470NT1G	2 N-Channel (Dual)	-55 °C	175 ░C	MOSFET (Metal Oxide)	3.5 V	Automotive	40 V	Surface Mount		11.7 A 36 A	8-PowerTDFN	AEC-Q101	8-DFN (5x6) Dual Flag (SO8FL-Dual)	420 pF		11.7 mOhm		8 nC
ON Semiconductor NVMFD5C446NLT1G	2 N-Channel (Dual)	-55 °C	175 ░C	MOSFET (Metal Oxide)	2.2 V	Automotive	40 V	Surface Mount	3.5 W	25 A 145 A	8-PowerTDFN	AEC-Q101	8-DFN (5x6) Dual Flag (SO8FL-Dual)	3170 pF		2.65 mOhm		25 nC
ON Semiconductor NVMFD5C462NWFT1G						Automotive		Surface Mount			8-PowerTDFN	AEC-Q101	8-DFN (5x6) Dual Flag (SO8FL-Dual)
ON Semiconductor NVMFD5C674NLWFT1G	2 N-Channel (Dual)	-55 °C	175 ░C	MOSFET (Metal Oxide)	2.2 V	Automotive	60 V	Surface Mount		11 A 42 A	8-PowerTDFN	AEC-Q101	8-DFN (5x6) Dual Flag (SO8FL-Dual)	640 pF		14.4 mOhm	3 W 37 W	4.7 nC
ON Semiconductor NVMFD5C668NLT1G	2 N-Channel (Dual)	-55 °C	175 ░C	MOSFET (Metal Oxide)	2 V	Automotive	60 V	Surface Mount		15.5 A 68 A	8-PowerTDFN	AEC-Q101	8-DFN (5x6) Dual Flag (SO8FL-Dual)		21.3 nC	6.5 mOhm	3 W 57.5 W		1440 pF
ON Semiconductor NVMFD5C470NWFT1G	2 N-Channel (Dual)	-55 °C	175 ░C	MOSFET (Metal Oxide)	3.5 V	Automotive	40 V	Surface Mount		11.7 A 36 A	8-PowerTDFN	AEC-Q101	8-DFN (5x6) Dual Flag (SO8FL-Dual)	420 pF		11.7 mOhm		8 nC
ON Semiconductor NVMFD5C680NLT1G	2 N-Channel (Dual)	-55 °C	175 ░C	MOSFET (Metal Oxide)	2.2 V	Automotive	60 V	Surface Mount	3 W 19 W	7.5 A 26 A	8-PowerTDFN	AEC-Q101	8-DFN (5x6) Dual Flag (SO8FL-Dual)	350 pF	2 nC

Catalog

Power MOSFET 40 V, 36 A, 11.7 mΩ, Dual N-Channel, Standard Level

Key Features

• Small Footprint (5x6 mm)

• Low RDS(on)

• Low QGand Capacitance

• NVMFD5C668NLWF − Wettable Flank Option for Enhanced Optical Inspection

• AEC−Q101 Qualified and PPAP Capable

• These Devices are Pb−Free and are RoHS Compliant

Description

Automotive Power MOSFET in a 5 x 6 mm flat lead package designed for compact and efficient designs and including high thermal performance. Wettable Flank Option available for Enhanced Optical Inspection. AEC-Q101 Qualified MOSFET and PPAP capable suitable for automotive applications.
