R6020ENZ4 Series

600V 20A TO-3PF, PrestoMOS™ with integrated high-speed diode

Catalog

600V 20A TO-3PF, PrestoMOS™ with integrated high-speed diode

Part	FET Type	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs	Drive Voltage (Max Rds On, Min Rds On)	Current - Continuous Drain (Id) @ 25°C	Vgs (Max)	Gate Charge (Qg) (Max) @ Vgs [Max]	Package / Case	Drain to Source Voltage (Vdss)	Operating Temperature	Mounting Type	Power Dissipation (Max) [Max]	Technology	Supplier Device Package	Power Dissipation (Max)	Gate Charge (Qg) (Max) @ Vgs	Vgs(th) (Max) @ Id	Operating Temperature [Min]	Operating Temperature [Max]	Rds On (Max) @ Id, Vgs [Max]
Rohm Semiconductor R6020ENZ4C13	N-Channel	1400 pF	196 mOhm	10 V	20 A	20 V	60 nC	TO-247-3	600 V	150 °C	Through Hole	231 W	MOSFET (Metal Oxide)	TO-247
Rohm Semiconductor R6020ENJTL	N-Channel	1400 pF	196 mOhm	10 V	20 A	20 V	60 nC	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	600 V	150 °C	Surface Mount		MOSFET (Metal Oxide)	LPTS	40 W
Rohm Semiconductor R6020JNJGTL	N-Channel	1500 pF	234 mOhm	15 V	20 A	30 V		D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	600 V		Surface Mount	252 W	MOSFET (Metal Oxide)	LPTS		45 nC	7 V	-55 °C	150 °C

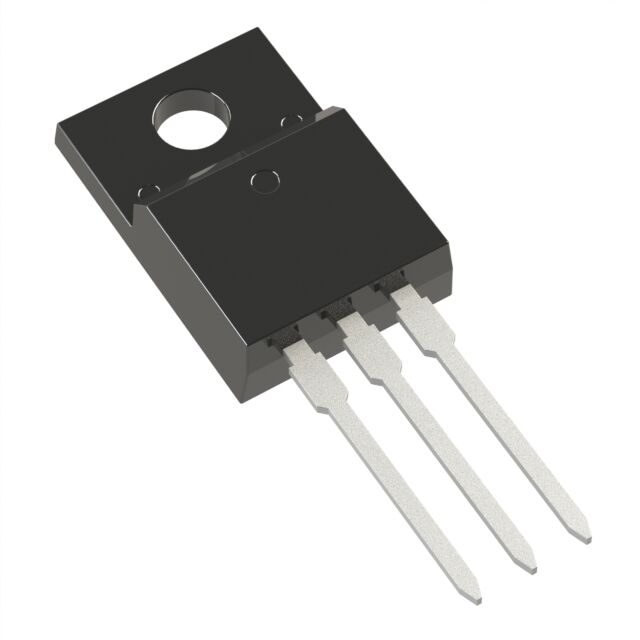

Rohm Semiconductor R6020ENX	N-Channel	1400 pF		10 V	20 A	20 V	60 nC	TO-220-3 Full Pack	600 V	150 °C	Through Hole	50 W	MOSFET (Metal Oxide)	TO-220FM						196 mOhm
Rohm Semiconductor R6020FNX	N-Channel	2040 pF		10 V	20 A	30 V	65 nC	TO-220-3 Full Pack	600 V	150 °C	Through Hole	50 W	MOSFET (Metal Oxide)	TO-220FM						250 mOhm
Rohm Semiconductor R6020ENZC17	N-Channel	1400 pF	196 mOhm	10 V	20 A	20 V	60 nC	TO-3P-3 Full Pack	600 V	150 °C	Through Hole		MOSFET (Metal Oxide)	TO-3PF	120 W
Rohm Semiconductor R6020KNZC17	N-Channel	1550 pF	196 mOhm	10 V	20 A	20 V	40 nC	TO-3P-3 Full Pack	600 V	150 °C	Through Hole		MOSFET (Metal Oxide)	TO-3PF	68 W
Rohm Semiconductor R6020JNZC17	N-Channel	1500 pF	234 mOhm	15 V	20 A	30 V		TO-3P-3 Full Pack	600 V	150 °C	Through Hole	76 W	MOSFET (Metal Oxide)	TO-3PF		45 nC	7 V

Catalog

600V 20A TO-3PF, PrestoMOS™ with integrated high-speed diode

Key Features

• Low on-resistance, Fast switching speed, Gate-source voltage (VGSS) guaranteed to be ±20V, Drive circuits can be simple, Parallel use is easy, Pb-free lead plating ; RoHS compliant

Description

R6020JNZ is a power MOSFET with fast reverse recovery time (trr), suitable for the switching applications.PrestoMOS™ series, R60xxJNx series increases design flexibility while maintaining the industry’s fastest reverse recovery time (trr) optimized for EV charging stations and motor drive in home appliances such as refrigerators and Air Conditioners (ACs).
