APTM50HM65FT3G-Module Series

500V/Single switch + series and parallel diode/Si MOSFET

Catalog

500V/Single switch + series and parallel diode/Si MOSFET

Part	Power Dissipation (Max)	Operating Temperature [Max]	Operating Temperature [Min]	FET Type	Current - Continuous Drain (Id) @ 25°C	Vgs (Max)	Drain to Source Voltage (Vdss)	Gate Charge (Qg) (Max) @ Vgs	Technology	Rds On (Max) @ Id, Vgs	Supplier Device Package	Vgs(th) (Max) @ Id	Package / Case	Drive Voltage (Max Rds On, Min Rds On)	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds	Power Dissipation (Max) [Max]	Input Capacitance (Ciss) (Max) @ Vds [Max]	Configuration	Power - Max [Max]	Configuration	Gate Charge (Qg) (Max) @ Vgs [Max]
Microchip Technology APTM50SKM17G	1250 W	150 °C	-40 °C	N-Channel	180 A	30 V	500 V	560 nC	MOSFET (Metal Oxide)	20 mOhm	SP6	5 V	SP6	10 V	Chassis Mount	28000 pF

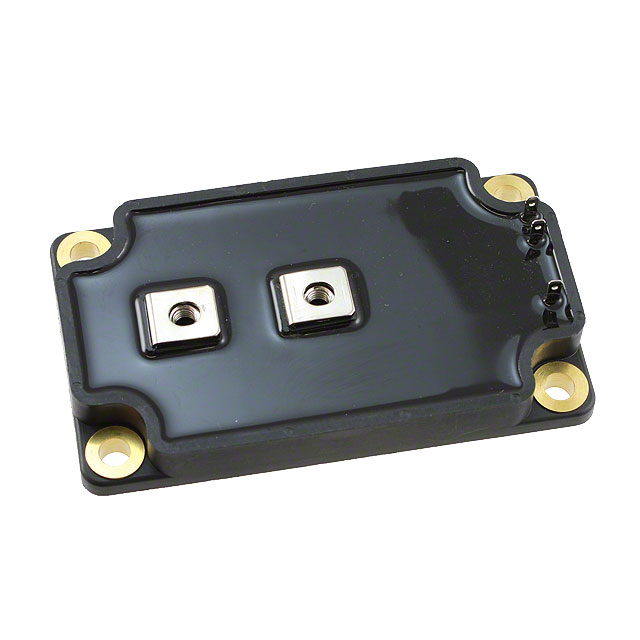

Microchip Technology APTM50UM09FAG		150 °C	-40 °C	N-Channel	497 A	30 V	500 V	1200 nC	MOSFET (Metal Oxide)	10 mOhm	SP6	5 V	SP6	10 V	Chassis Mount	63300 pF	5000 W
Microchip Technology APTM50DDA10T3G		150 °C	-40 °C		37 A		500 V		MOSFET (Metal Oxide)	120 mOhm	SP3		SP3		Chassis Mount			4367 pF	2 N-Channel (Dual)	312 W
Microchip Technology APTM50DAM17G	1250 W	150 °C	-40 °C	N-Channel	180 A	30 V	500 V	560 nC	MOSFET (Metal Oxide)	20 mOhm	SP6	5 V	SP6	10 V	Chassis Mount	28000 pF

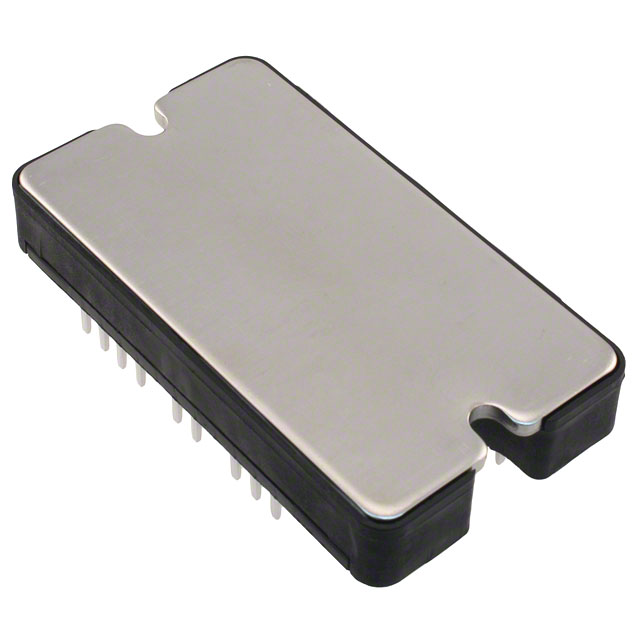

Microchip Technology APTM50HM65FT3G		150 °C	-40 °C		51 A		500 V	140 nC	MOSFET (Metal Oxide)	78 mOhm	SP3	5 V	SP3		Chassis Mount			7000 pF		390 W	4 N-Channel
Microchip Technology APTM50AM19FG		150 °C	-40 °C		163 A		500 V	492 nC	MOSFET (Metal Oxide)	22.5 mOhm	SP6	5 V	SP6		Chassis Mount	22400 pF			2 N-Channel (Half Bridge)	1136 W
Microchip Technology APTM50DAM19G	1136 W	150 °C	-40 °C	N-Channel	163 A	30 V	500 V	492 nC	MOSFET (Metal Oxide)	22.5 mOhm	SP6	5 V	SP6	10 V	Chassis Mount	22400 pF
Microchip Technology APTM50AM24SCG		150 °C	-40 °C		150 A		500 V		Silicon Carbide (SiC)	28 mOhm	SP6	5 V	SP6		Chassis Mount	19600 pF			2 N-Channel (Half Bridge)	1250 W		434 nC
Microchip Technology APTM50HM75FT3G		150 °C	-40 °C		46 A		500 V		MOSFET (Metal Oxide)	90 mOhm	SP3	5 V	SP3		Chassis Mount	5600 pF				357 W	4 N-Channel	123 nC
Microchip Technology APTM50HM65FTG		150 °C	-40 °C		51 A		500 V	140 nC	MOSFET (Metal Oxide)	78 mOhm	SP4	5 V	SP4		Chassis Mount			7000 pF		390 W	4 N-Channel

Catalog

500V/Single switch + series and parallel diode/Si MOSFET

Key Features

• + Configuration: Full bridge + series FRED and SiC parallel diodes

• + VDSS (V): 500

• + RDSon (mR) typ: 75

• + Current (A) Tc=80C: 34

• + Silicon type: MOSFET

• + Package: SP4

Description

* FREDFETs * Low RDSon * Low input and Miller capacitance * Low gate charge * Fast intrinsic reverse diode * Avalanche energy rated * Very rugged * Kelvin source for easy drive * Low stray inductance * Outstanding performance at high frequency operation * Direct mounting to heatsink (isolated package) * Low junction to case thermal resistance * Internal thermistor for temperature monitoring (optional) * RoHS Compliant
