RFUH20 Series

Super Fast Recovery Diode

Manufacturer: Rohm Semiconductor

Catalog

Super Fast Recovery Diode

Description

AI

ROHM's fast recovery diodes are ultra high-speed, low VF, and suited for significant efficiency increase of switching power supply as well as reduction of switching loss.

Catalog

Super Fast Recovery Diode

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Mounting Type	Current - Reverse Leakage @ Vr	Speed	Reverse Recovery Time (trr)	Supplier Device Package	Operating Temperature - Junction	Technology	Voltage - Forward (Vf) (Max) @ If	Voltage - Forward (Vf) (Max) @ If [Max]	Operating Temperature - Junction [Max]
Rohm Semiconductor RFUH20NS3STL	350 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Surface Mount	10 µA	200 mA 500 ns	25 ns	LPDS	150 ¯C	Standard	1.5 V
Rohm Semiconductor RFUH20TB3SNZC9	350 V	TO-220-2 Full Pack	Through Hole	10 nA	200 mA 500 ns	25 ns	TO-220NFM	150 ¯C	Standard	1.5 V
Rohm Semiconductor RFUH20NS4STL	430 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Surface Mount	10 µA	200 mA 500 ns	25 ns	LPDS	150 ¯C	Standard	20 A	1.7 V

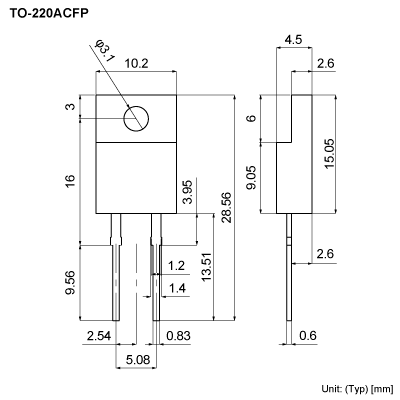

Rohm Semiconductor RFUH20TJ6SGC9	600 V	TO-220-2 Full Pack	Through Hole	10 µA	200 mA 500 ns	80 ns	TO-220ACFP	150 ¯C	Standard	2.8 V
Rohm Semiconductor RFUH20TB4SNZC9	430 V	TO-220-2 Full Pack	Through Hole	10 µA	200 mA 500 ns	25 ns	TO-220NFM	150 ¯C	Standard	20 A	1.7 V
Rohm Semiconductor RFUH20TF6S	600 V	TO-220-2	Through Hole	10 µA	200 mA 500 ns	35 ns	TO-220NFM		Standard	2.8 V		150 °C
Rohm Semiconductor RFUH20TF6SC9	600 V	TO-220-2 Full Pack	Through Hole	10 µA	200 mA 500 ns	35 ns	TO-220NFM	150 ¯C	Standard	2.8 V
