STTH4R02 Series

Catalog

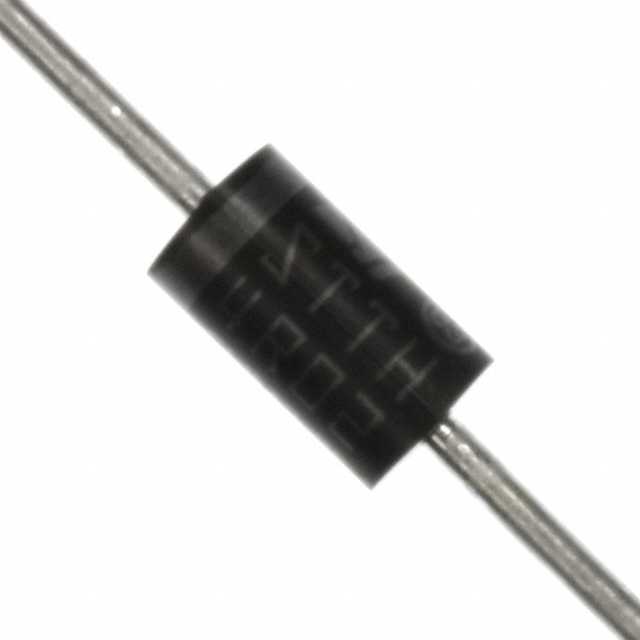

DIODE GEN PURP 200V 4A DO201AB

Part	Supplier Device Package	Mounting Type	Operating Temperature - Junction [Max]	Reverse Recovery Time (trr)	Technology	Current - Reverse Leakage @ Vr	Package / Case	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Speed
STMicroelectronics STTH4R02	DO-201AB	Through Hole	175 ░C	30 ns	Standard	3 µA	Axial DO-201AB DO-32	4 A	200 V	1.05 V	200 mA 500 ns
STMicroelectronics STTH4R02U	SMB	Surface Mount	175 ░C	30 ns	Standard	3 µA	DO-214AA SMB	4 A	200 V	1.05 V	200 mA 500 ns
STMicroelectronics STTH4R02D	TO-220AC	Through Hole	175 ░C	30 ns	Standard	3 µA	TO-220-2	4 A	200 V	1.05 V	200 mA 500 ns
STMicroelectronics STTH4R02S	SMC	Surface Mount	175 ░C	30 ns	Standard	3 µA	DO-214AB SMC	4 A	200 V	1.05 V	200 mA 500 ns
