1200V/120mohm SiC MOSFET TO-247-3L
Description
AI
Littelfuse Silicon Carbide (SiC) MOSFET LSIC1MO120E0120 1200 V come in ratings of 1200 V, 120 mOhm in a TO-247-3L package.
Beta
⌘K
1200V/120mohm SiC MOSFET TO-247-3L
1200V/120mohm SiC MOSFET TO-247-3L
| Part | Power Dissipation (Max) | Mounting Type | Supplier Device Package | Input Capacitance (Ciss) (Max) @ Vds [Max] | Current - Continuous Drain (Id) @ 25°C | Operating Temperature [Max] | Operating Temperature [Min] | FET Type | Package / Case | Rds On (Max) @ Id, Vgs | Drain to Source Voltage (Vdss) | Vgs (Max) [Max] | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs [Max] | Gate Charge (Qg) (Max) @ Vgs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

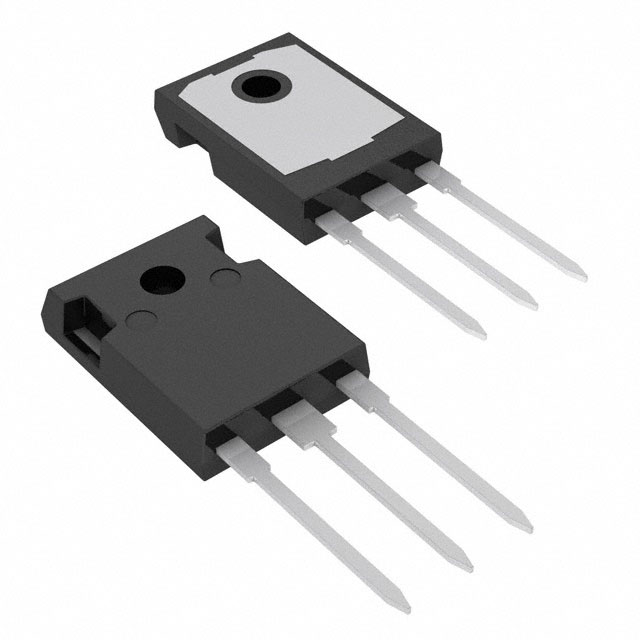

 LITTELFUSE | 125 W | Through Hole | TO-247AD | 870 pF | 22 A | 150 °C | -55 °C | N-Channel | TO-247-3 | 200 mOhm | 1.2 kV | -6 V 22 V | 4 V | ||

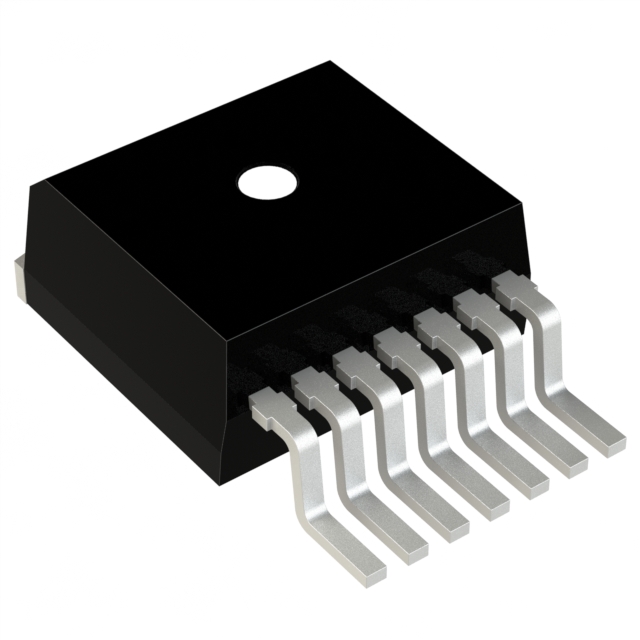

 LITTELFUSE | Surface Mount | TO-263-7 | 39 A | N-Channel | D2PAK (7 Leads + Tab) TO-263-8 TO-263CA | 1.2 kV | |||||||||
LITTELFUSE | 139 W | Through Hole | TO-247AD | 1125 pF | 27 A | 150 °C | -55 °C | N-Channel | TO-247-3 | 150 mOhm | 1.2 kV | -6 V 22 V | 4 V | 80 nC | |
 LITTELFUSE | 179 W | Through Hole | TO-247AD | 1825 pF | 39 A | 150 °C | -55 C | N-Channel | TO-247-3 | 100 mOhm | 1.2 kV | -6 V 22 V | 4 V | 95 nC |
