IPZA60 Series

Manufacturer: INFINEON

Catalog

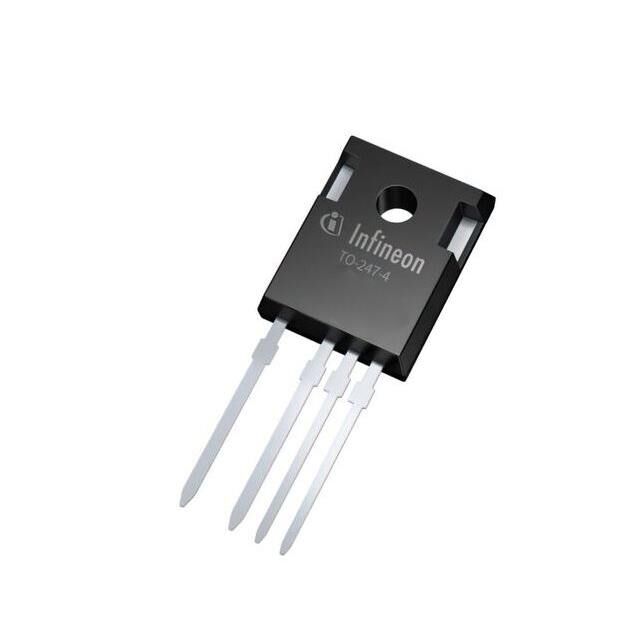

MOSFET N-CH 600V 101A TO247-4-3

Part	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs [Max]	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Technology	Rds On (Max) @ Id, Vgs	Power Dissipation (Max)	FET Type	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds [Max]	Vgs (Max)	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs	Rds On (Max) @ Id, Vgs [Max]
INFINEON IPZA60R024P7XKSA1	PG-TO247-4-3	164 nC	101 A	600 V	10 V	150 °C	-55 °C	TO-247-4	Through Hole	MOSFET (Metal Oxide)	24 mOhm	291 W	N-Channel	4 V	7144 pF	20 V
INFINEON IPZA60R120P7XKSA1	PG-TO247-4		26 A	600 V	10 V	150 °C	-55 °C	TO-247-4	Through Hole	MOSFET (Metal Oxide)	120 mOhm	95 W	N-Channel	4 V		20 V	1544 pF	36 nC
INFINEON IPZA60R037P7XKSA1	PG-TO247-4	121 nC	76 A	600 V	10 V	150 °C	-55 °C	TO-247-4	Through Hole	MOSFET (Metal Oxide)	37 mOhm	255 W	N-Channel	4 V		20 V	5243 pF
INFINEON IPZA60R080P7XKSA1	PG-TO247-4		37 A	600 V	10 V	150 °C	-55 °C	TO-247-4	Through Hole	MOSFET (Metal Oxide)		129 W	N-Channel	4 V		20 V	2180 pF	51 nC	80 mOhm
INFINEON IPZA60R180P7XKSA1	PG-TO247-4		18 A	600 V	10 V	150 °C	-55 °C	TO-247-4	Through Hole	MOSFET (Metal Oxide)	180 mOhm	72 W	N-Channel	4 V	1081 pF	20 V		25 nC
