APTGT100DA120T1G-Module Series

600V/Triple Dual common source/IGBT modules

Catalog

600V/Triple Dual common source/IGBT modules

Part	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]	Mounting Type	Supplier Device Package	IGBT Type	Voltage - Collector Emitter Breakdown (Max)	Vce(on) (Max) @ Vge, Ic	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector (Ic) (Max) [Max]	Package / Case	Configuration	Input	Input Capacitance (Cies) @ Vce	Voltage - Collector Emitter Breakdown (Max) [Max]

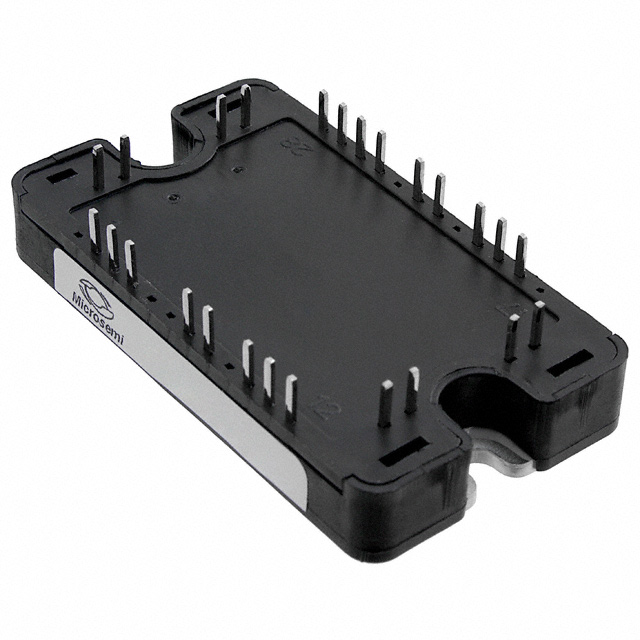

Microchip Technology APTGT100A170TG	250 µA	560 W	Chassis Mount	SP4	Trench Field Stop	1700 V	2.4 V	150 °C	-40 °C	150 A	SP4	Half Bridge	Standard	9 nF
Microchip Technology APTGT100H170G	350 µA	560 W	Chassis Mount	SP6	Trench Field Stop	1700 V	2.4 V	150 °C	-40 °C	150 A	SP6	Full Bridge Inverter	Standard	9 nF

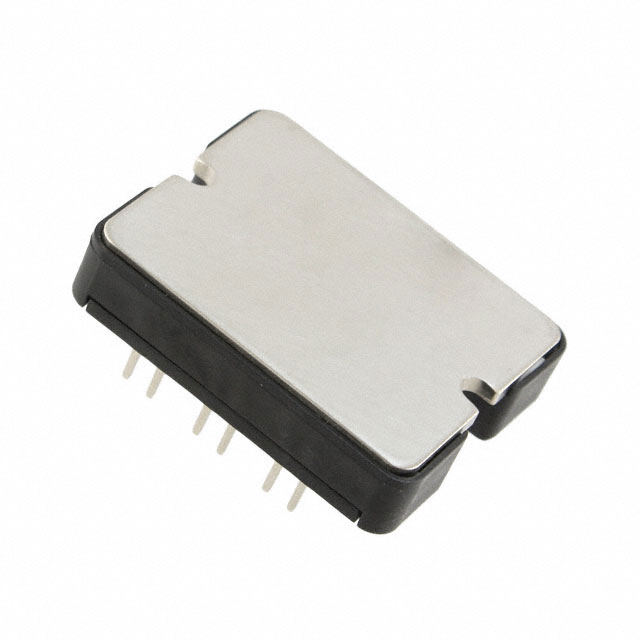

Microchip Technology APTGT100A60T1G	250 µA	340 W	Chassis Mount	SP1	Trench Field Stop		1.9 V	175 °C	-40 C	150 A	SP1	Half Bridge	Standard	6.1 nF	600 V
Microchip Technology APTGT100TDU60PG	250 µA	340 W	Chassis Mount	SP6-P	Trench Field Stop		1.9 V	175 °C	-40 C	150 A	SP6	Dual Triple	Standard	6.1 nF	600 V
Microchip Technology APTGT100A120TG	250 µA	480 W	Chassis Mount	SP4	Trench Field Stop		2.1 V	150 °C	-40 °C	140 A	SP4	Half Bridge	Standard	7.2 nF	1200 V
Microchip Technology APTGT100DH60TG	250 µA	340 W	Chassis Mount	SP4	Trench Field Stop		1.9 V	175 °C	-40 C	150 A	SP4	Asymmetrical Bridge	Standard	6.1 nF	600 V
Microchip Technology APTGT100A120T3AG	250 µA	595 W	Through Hole	SP3	Trench Field Stop		2.1 V	150 °C	-40 °C	140 A	SP3	Half Bridge	Standard	7.2 nF	1200 V
Microchip Technology APTGT100TL170G	350 µA	560 W	Chassis Mount	SP6	Trench Field Stop	1700 V	2.4 V	150 °C	-40 °C	150 A	Module	Three Level Inverter	Standard	9 nF
Microchip Technology APTGT100H120G	250 µA	480 W	Chassis Mount	SP6	Trench Field Stop		2.1 V	150 °C	-40 °C	140 A	SP6	Full Bridge Inverter	Standard	7.2 nF	1200 V
Microchip Technology APTGT100SK170TG	250 µA	560 W	Chassis Mount	SP4	Trench Field Stop	1700 V	2.4 V	150 °C	-40 °C	150 A	SP4	Single	Standard	9 nF

Catalog

600V/Triple Dual common source/IGBT modules

Key Features

• + Configuration: Triple Dual common source

• + VCES (V): 600

• + VCESat (V): 1.5

• + Current (A) Tc=80C: 100

• + Silicon type: TRENCH 3 IGBT

• + Package: SP6P

Description

* IGBT 3 * Low voltage drop * Low tail current * Switching frequency up to 20 kHz * Low leakage current * Kelvin emitter for easy drive * Low stray inductance * Stable temperature behavior * Internal thermistor for temperature monitoring (optional) * Very rugged * Direct mounting to heatsink (isolated package) * Low junction to case thermal resistance * Internal thermistor for temperature monitoring (optional) * Easy paralleling due to positive TC of VCEsat * Low profile * RoHS Compliant
