EPC210 Series

Manufacturer: EPC

Catalog

GANFET 2N-CH 80V 9.5A/38A DIE

Part	Technology	Package / Case	Gate Charge (Max)	Vgs(th) (Max)	Input Capacitance (Ciss) (Max)	Rds On (Max)	Package Name	Channel Count	Configuration - Features	Configuration	Drain to Source Voltage (Vdss)	Operating Temperature (Min)	Operating Temperature (Max)	Current - Continuous Drain (Id) (Typical)	Mounting Type	Current - Continuous Drain (Id) (Tj)	Current - Continuous Drain (Id)	Current - Continuous Drain (Id) (Maximum)	Package Width	Package Length	Current - Continuous Drain (Id) (Ta) (2)	Current - Continuous Drain (Id) (Ta)
EPC EPC2105	GaNFET (Gallium Nitride)	Die	2.5 nC	2.5 V 2.5 V	300 pF 1100 pF	3.4 mOhm 14.5 mOhm	Die	2	Half Bridge	N-Channel	80 V	-40 °C	150 °C	9.5 A	Surface Mount
EPC EPC2102ENGRT	GaNFET (Gallium Nitride)	Die	6.8 nC	2.5 V	830 pF	4.4 mOhm	Die	2	Half Bridge	N-Channel	60 V	-40 °C	150 °C		Surface Mount	23 A
EPC EPC2106ENGRT	GaNFET (Gallium Nitride)	Die	0.73 nC	2.5 V	75 pF	70 mOhm	Die	2	Half Bridge	N-Channel	100 V	-40 °C	150 °C		Surface Mount		1.7 A
EPC EPC2104	GaNFET (Gallium Nitride)	Die	7 nC	2.5 V	800 pF	6.3 mOhm	Die	2	Half Bridge	N-Channel	100 V	-40 °C	150 °C		Surface Mount		23 A
EPC EPC2103ENGRT	GaNFET (Gallium Nitride)	Die	6.5 nC	2.5 V		5.5 mOhm	Die	2	Half Bridge	N-Channel	80 V				Surface Mount		23 A

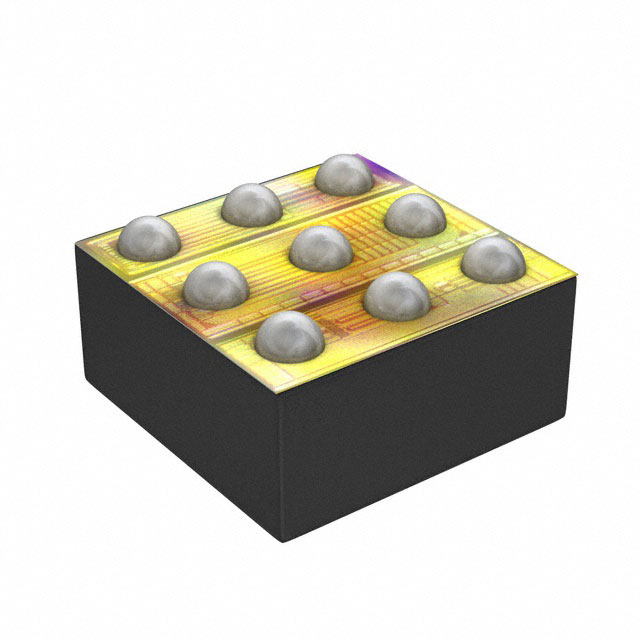

EPC EPC2107	GaNFET (Gallium Nitride)	9-VFBGA	0.044 nC 0.16 nC	2.5 V 2.5 V	7 pF 16 pF	3.3 Ohm 320 mOhm	9-BGA	3	Half Bridge Synchronous Bootstrap	N-Channel	100 V	-40 °C	150 °C	1.7 A	Surface Mount			500 mA	1.35 mm	1.35 mm
EPC EPC2105ENGRT	GaNFET (Gallium Nitride)	Die	2.5 nC	2.5 V	300 pF	14.5 mOhm	Die	2	Half Bridge	N-Channel	80 V	-40 °C	150 °C		Surface Mount		9.5 A
EPC EPC2103	GaNFET (Gallium Nitride)	Die	6.5 nC	2.5 V	760 pF	5.5 mOhm	Die	2	Half Bridge	N-Channel	80 V	-40 °C	150 °C		Surface Mount		28 A
EPC EPC2100ENGRT	GaNFET (Gallium Nitride)	Die	4.9 nC 19 nC	2.5 V 2.5 V	475 pF 1960 pF	2.1 mOhm 8.2 mOhm	Die	2	Half Bridge	N-Channel	30 V	-40 °C	150 °C		Surface Mount						40 A	10 A
EPC EPC2104ENGRT	GaNFET (Gallium Nitride)	Die	7 nC	2.5 V	800 pF	6.3 mOhm	Die	2	Half Bridge	N-Channel	100 V	-40 °C	150 °C		Surface Mount		23 A
