Connectors, Interconnects

09338162601

Obsolete

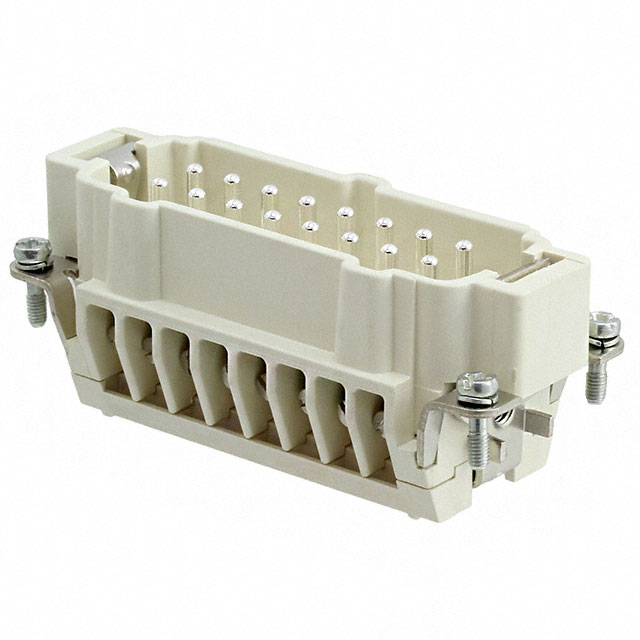

HAN HIGH TEMP 16E-S MALE

Search across all available documentation for this part.

Connectors, Interconnects

Obsolete

HAN HIGH TEMP 16E-S MALE

Technical Specifications

Parameters and characteristics for this part

Specification	09338162601

Color	Gray
Connector Type	Insert
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Number of Positions	16+Ground
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-40 C
Size	16 B
Termination Style	Screw
Voltage Rating	400 V

Part	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination Style	Connector Type	Contact Type	Voltage Rating	Gender	Number of Positions	Size	Contact Material	Material Flammability Rating	Color
HARTING 09338162704	Liquid Crystal Polymer (LCP)	-40 C	200 °C	16 A	Crimp	Insert without Contacts	Han® E	500 V	Female	16+Ground	16 B
HARTING 09338162602	Liquid Crystal Polymer (LCP)	-40 C	200 °C	16 A	Crimp	Insert without Contacts	Han® E	400 V	Male	16+Ground	16 B
HARTING 09338162703	Liquid Crystal Polymer (LCP)	-40 C	200 °C	16 A	Screw	Insert		500 V	Female	16+Ground	16 B
HARTING 09338162601	Liquid Crystal Polymer (LCP)	-40 C	200 °C	16 A	Screw	Insert		400 V	Male	16+Ground	16 B	Copper Alloy	UL94 V-0	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	0	$ 0.00

General part information

Male Insert Gray 16+Ground Position Screw

Technical documentation and resources
