Connectors, Interconnects

09338162704

Active

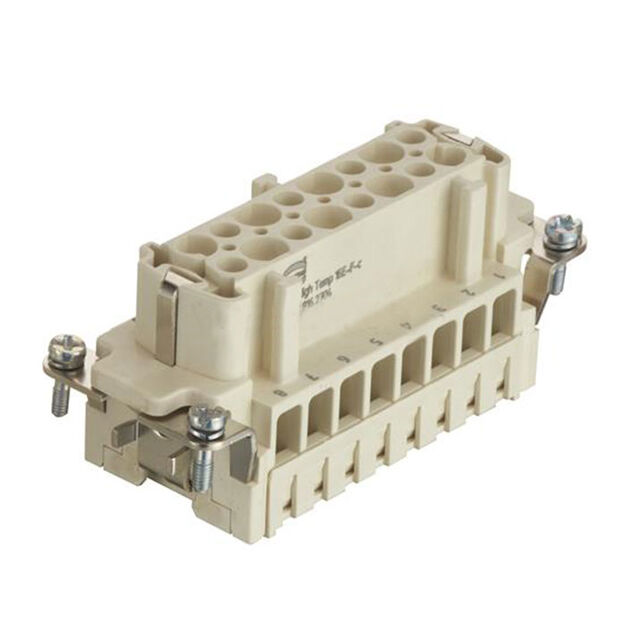

HAN 16E FEMALE CRIMP INSERT - HIGH TEMP VERSION

Search across all available documentation for this part.

Connectors, Interconnects

Active

HAN 16E FEMALE CRIMP INSERT - HIGH TEMP VERSION

Technical Specifications

Parameters and characteristics for this part

Part	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination Style	Connector Type	Contact Type	Voltage Rating	Gender	Number of Positions	Size	Contact Material	Material Flammability Rating	Color
HARTING 09338162704	Liquid Crystal Polymer (LCP)	-40 C	200 °C	16 A	Crimp	Insert without Contacts	Han® E	500 V	Female	16+Ground	16 B
HARTING 09338162602	Liquid Crystal Polymer (LCP)	-40 C	200 °C	16 A	Crimp	Insert without Contacts	Han® E	400 V	Male	16+Ground	16 B
HARTING 09338162703	Liquid Crystal Polymer (LCP)	-40 C	200 °C	16 A	Screw	Insert		500 V	Female	16+Ground	16 B
HARTING 09338162601	Liquid Crystal Polymer (LCP)	-40 C	200 °C	16 A	Screw	Insert		400 V	Male	16+Ground	16 B	Copper Alloy	UL94 V-0	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert without Contacts 16+Ground Position Crimp
