Connectors, Interconnects

09338162602

Obsolete

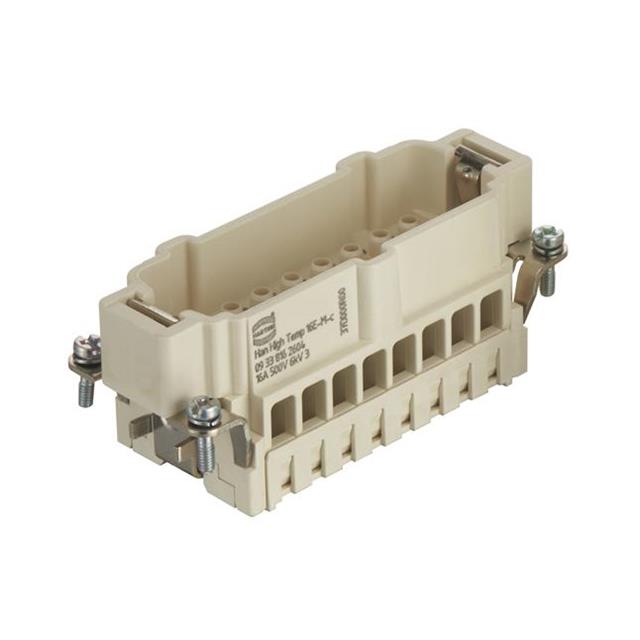

HAN HIGH TEMP 16E CRIMP MALE

Search across all available documentation for this part.

Connectors, Interconnects

Obsolete

HAN HIGH TEMP 16E CRIMP MALE

Technical Specifications

Parameters and characteristics for this part

Part	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination Style	Connector Type	Contact Type	Voltage Rating	Gender	Number of Positions	Size	Contact Material	Material Flammability Rating	Color
HARTING 09338162704	Liquid Crystal Polymer (LCP)	-40 C	200 °C	16 A	Crimp	Insert without Contacts	Han® E	500 V	Female	16+Ground	16 B
HARTING 09338162602	Liquid Crystal Polymer (LCP)	-40 C	200 °C	16 A	Crimp	Insert without Contacts	Han® E	400 V	Male	16+Ground	16 B
HARTING 09338162703	Liquid Crystal Polymer (LCP)	-40 C	200 °C	16 A	Screw	Insert		500 V	Female	16+Ground	16 B
HARTING 09338162601	Liquid Crystal Polymer (LCP)	-40 C	200 °C	16 A	Screw	Insert		400 V	Male	16+Ground	16 B	Copper Alloy	UL94 V-0	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	0	$ 0.00

General part information

Male Insert without Contacts 16+Ground Position Crimp
