Connectors, Interconnects

09340100501

Active

HARTING

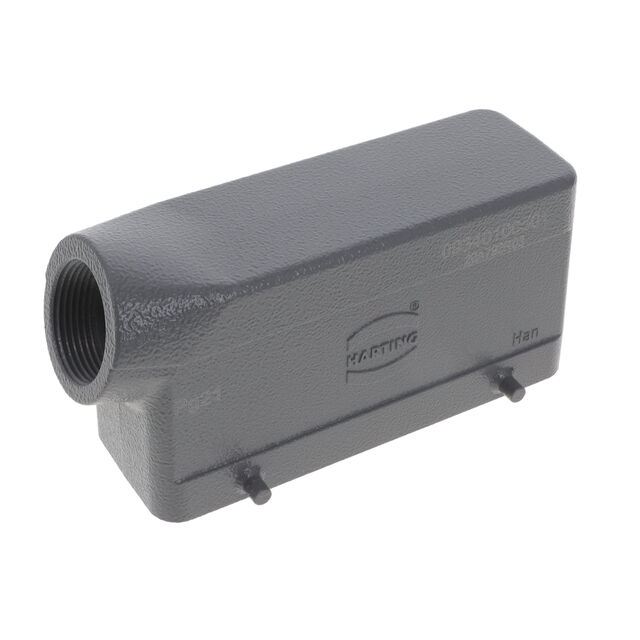

HAN HVE HOOD SIDE ENTRY LC 4 PEGS PG 21 ROHS COMPLIANT: NA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Connectors, Interconnects

09340100501

Active

HARTING

HAN HVE HOOD SIDE ENTRY LC 4 PEGS PG 21 ROHS COMPLIANT: NA

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09340100501

Connector Type	Hood
Lock Location	Locking Clip (2) on Base Bottom
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 in
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 "
Size / Dimension [z]	2.461 "
Size / Dimension [z]	62.5 mm
Style	Side Entry
Thread Size	PG21

09340100 Series

Part	Style	Connector Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Lock Location	Features	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Size	Housing Material	Housing Finish	Ingress Protection	Housing Color
HARTING 09340100302	Bottom Entry	Base - Panel Mount	1.138 "	43.4 mm	140 mm	28.9 mm	1.709 "	5.512 "	Locking Clip (2) on Hood	Cover
HARTING 09340100502	Side Entry	Hood	2.461 "	43 mm	120 mm	62.5 mm	1.693 "	4.724 in	Locking Clip (2) on Hood		PG21
HARTING 09340100501	Side Entry	Hood	2.461 "	43 mm	120 mm	62.5 mm	1.693 "	4.724 in	Locking Clip (2) on Base Bottom		PG21
HARTING 09340100301	Bottom Entry	Base - Panel Mount	1.138 "	43.4 mm	140 mm	28.9 mm	1.709 "	5.512 "	Locking Clip (2) on Base Bottom			125 °C	-40 C	24 B	Aluminum Die Cast	Powder Coated	IP65 - Dust Tight Water Resistant	Gray
HARTING 09340100401	Top Entry	Hood	2.165 "	43 mm	120 mm	55 mm	1.693 "	4.724 in	Locking Clip (2) on Hood		PG29
HARTING 09340100304	Bottom Entry	Base - Panel Mount	1.138 "	43.4 mm	140 mm	28.9 mm	1.709 "	5.512 "	Locking Clip (1) on Base Bottom	Cover
HARTING 09340100404	Top Entry	Hood	2.165 "	43 mm	120 mm	55 mm	1.693 "	4.724 in	Locking Clip (1) on Base Bottom		PG29
HARTING 09340100701	Bottom Entry Top or Bottom Entry	Hood - Coupling	2.26 in	43 mm	120 mm	57.4 mm	1.693 "	4.724 in	Locking Clip (2) on Hood Top	Cable to Cable	PG29
HARTING 09340100402	Top Entry	Hood	2.165 "	43 mm	120 mm	55 mm	1.693 "	4.724 in	Locking Clip (2) on Hood		PG29			24 B
HARTING 09340100202	Side Entry	Base - Box Mount	2.205 "	57 mm	144 mm	56 mm	2.244 "	5.669 in	Locking Clip (2) on Hood		PG21

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.31
		10	$ 26.91
		25	$ 24.20
		50	$ 22.45
		100	$ 20.91
		250	$ 19.76
	N/A	11	$ 31.99
Newark	Each	1	$ 31.54
		10	$ 28.60
		25	$ 27.46
		50	$ 25.66
		100	$ 24.68
		250	$ 23.37

Description

General part information

09340100 Series

Hood Connector Side Entry PG21
