Connectors, Interconnects

09340100301

Active

HARTING

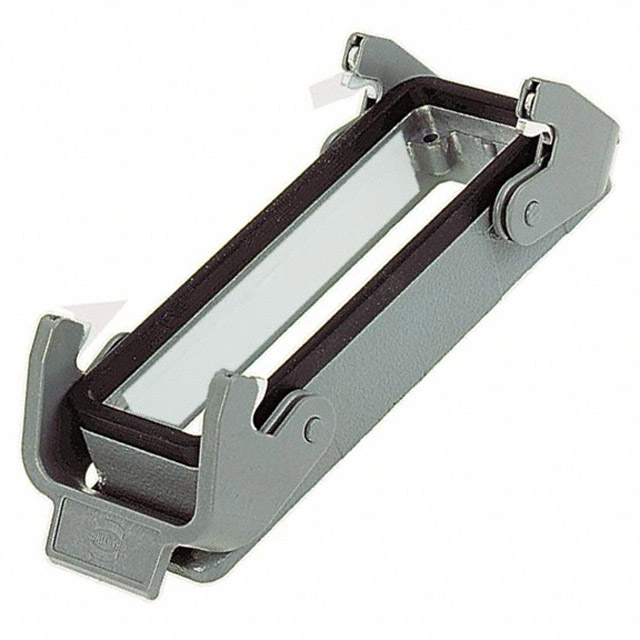

HEAVY DUTY CONNECTOR, LOW PROFILE, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 2 LEVER, 24B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Technical Data Sheet EN +1

Connectors, Interconnects

09340100301

Active

HARTING

HEAVY DUTY CONNECTOR, LOW PROFILE, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 2 LEVER, 24B

Deep-Dive with AI

DocumentsDrawing EN Technical Data Sheet EN +1

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09340100301

Connector Type	Base - Panel Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 C
Size	24 B
Size / Dimension [x]	140 mm
Size / Dimension [x]	5.512 "
Size / Dimension [y]	43.4 mm
Size / Dimension [y]	1.709 "
Size / Dimension [z]	1.138 "
Size / Dimension [z]	28.9 mm
Style	Bottom Entry

09340100 Series

Part	Style	Connector Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Lock Location	Features	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Size	Housing Material	Housing Finish	Ingress Protection	Housing Color
HARTING 09340100302	Bottom Entry	Base - Panel Mount	1.138 "	43.4 mm	140 mm	28.9 mm	1.709 "	5.512 "	Locking Clip (2) on Hood	Cover
HARTING 09340100502	Side Entry	Hood	2.461 "	43 mm	120 mm	62.5 mm	1.693 "	4.724 in	Locking Clip (2) on Hood		PG21
HARTING 09340100501	Side Entry	Hood	2.461 "	43 mm	120 mm	62.5 mm	1.693 "	4.724 in	Locking Clip (2) on Base Bottom		PG21
HARTING 09340100301	Bottom Entry	Base - Panel Mount	1.138 "	43.4 mm	140 mm	28.9 mm	1.709 "	5.512 "	Locking Clip (2) on Base Bottom			125 °C	-40 C	24 B	Aluminum Die Cast	Powder Coated	IP65 - Dust Tight Water Resistant	Gray
HARTING 09340100401	Top Entry	Hood	2.165 "	43 mm	120 mm	55 mm	1.693 "	4.724 in	Locking Clip (2) on Hood		PG29
HARTING 09340100304	Bottom Entry	Base - Panel Mount	1.138 "	43.4 mm	140 mm	28.9 mm	1.709 "	5.512 "	Locking Clip (1) on Base Bottom	Cover
HARTING 09340100404	Top Entry	Hood	2.165 "	43 mm	120 mm	55 mm	1.693 "	4.724 in	Locking Clip (1) on Base Bottom		PG29
HARTING 09340100701	Bottom Entry Top or Bottom Entry	Hood - Coupling	2.26 in	43 mm	120 mm	57.4 mm	1.693 "	4.724 in	Locking Clip (2) on Hood Top	Cable to Cable	PG29
HARTING 09340100402	Top Entry	Hood	2.165 "	43 mm	120 mm	55 mm	1.693 "	4.724 in	Locking Clip (2) on Hood		PG29			24 B
HARTING 09340100202	Side Entry	Base - Box Mount	2.205 "	57 mm	144 mm	56 mm	2.244 "	5.669 in	Locking Clip (2) on Hood		PG21

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 67.53
		10	$ 50.61
		25	$ 45.71
		50	$ 42.54
		100	$ 39.75
		250	$ 36.58
	N/A	14	$ 49.54
Mouser	N/A	1	$ 48.39
		10	$ 42.47
		25	$ 40.84
		50	$ 39.47
		100	$ 35.73
		250	$ 33.70
Newark	Each	1	$ 52.04
		10	$ 47.18
		25	$ 45.30
		50	$ 42.33
		100	$ 40.71
		250	$ 38.56

Description

General part information

09340100 Series

Base - Panel Mount Connector Bottom Entry 24B IP65 - Dust Tight, Water Resistant

Documents

Technical documentation and resources

Drawing EN

Datasheet

Technical Data Sheet EN

Datasheet
