AM5TW-2407SH35Z

Active

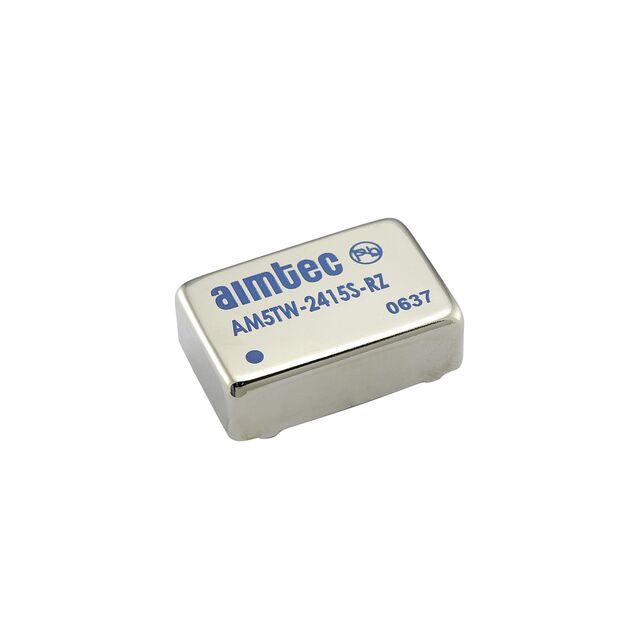

DC DC CONVERTER 7.2V 5W

Search across all available documentation for this part.

Power Supplies - Board Mount

Active

DC DC CONVERTER 7.2V 5W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Max)	Power (Watts)	Number of Outputs	Mounting Type	Voltage - Output 2	Approval Agency	Voltage - Input (Min)	Voltage - Isolation	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Efficiency	Current - Output (Max)	Voltage - Output 1	Type	Package Leads	Package Name	Operating Temperature (Min)	Operating Temperature (Max)	Applications	Voltage - Output 1 (Max)	Voltage - Output 1 (Min)	Package / Case
aimtec AM5TW-2409DZ	36 V	5 W	2	Through Hole	-9 V	CE	9 V	1500 Vrns	0.4 in	1.25 in	0.8 in	82 %	278 mA	9 V	Isolated Module	12 Leads	24-DIP Module	-40 °C	85 °C	ITE (Commercial)
aimtec AM5TW-2407D-RZ	36 V	5 W	2	Through Hole	-7.2 V	CE	9 V	1500 Vrns	0.4 in	1.25 in	0.8 in	80 %	347 mA		Isolated Module			-40 °C	85 °C	ITE (Commercial)	7.2 V	-7.2 V	24-DIP Module
aimtec AM5TW-2407SH35Z	36 V	5 W	1	Through Hole		CE	9 V	3500 Vrms	0.4 in	1.25 in	0.8 in	78 %	690 mA	7.2 V	Isolated Module			-40 °C	85 °C	ITE (Commercial)			24-DIP Module
aimtec AM5TW-2415D-RZ	36 V	5 W	2	Through Hole	-15 V	CE	9 V	1500 Vrns	0.4 in	1.25 in	0.8 in	83 %	167 mA		Isolated Module			-40 °C	85 °C	ITE (Commercial)	15 V	-15 V	24-DIP Module
aimtec AM5TW-2405S-RZ	36 V	5 W	1	Through Hole		CE	9 V	1500 Vrns	0.4 in	1.25 in	0.8 in	80 %	1 A	5 V	Isolated Module			-40 °C	85 °C	ITE (Commercial)			24-DIP Module
aimtec AM5TW-2405SH35-VZ	36 V	5 W	1	Through Hole			9 V	3500 Vrms	0.4 in	1.25 in	0.8 in	73 %	1 A	5 V	Isolated Module			-40 °C	85 °C	ITE (Commercial)			24-DIP Module
aimtec AM5TW-2405SZ	36 V	5 W	1	Through Hole		CE	9 V	1500 Vrns	0.4 in	1.25 in	0.8 in	80 %	1 A	5 V	Isolated Module			-40 °C	85 °C	ITE (Commercial)			24-DIP Module
