182-037-112-181, 182-037-113R181
Connectors, Interconnects

182-037-113R181

Active
NorComp Inc.

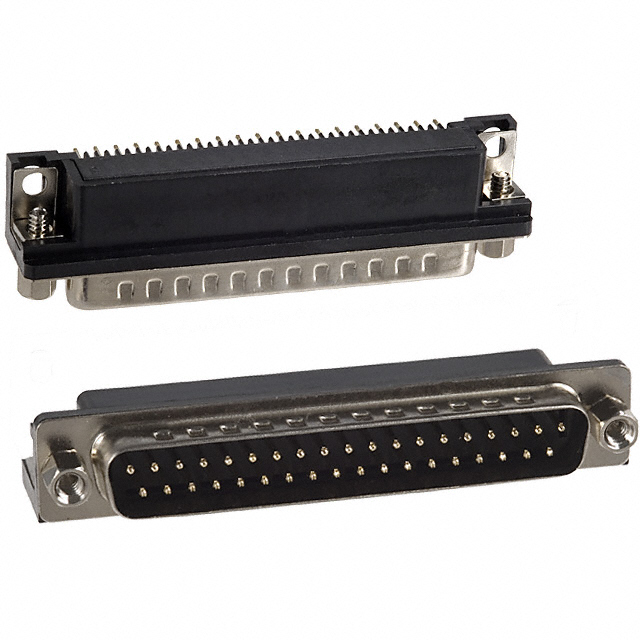

D SUB CONNECTOR, DB37, 37 CONTACTS, PLUG, THROUGH HOLE, DC, 182 SERIES, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackshell Reference GuideDatasheet+2
182-037-112-181, 182-037-113R181
Connectors, Interconnects

182-037-113R181

Active
NorComp Inc.

D SUB CONNECTOR, DB37, 37 CONTACTS, PLUG, THROUGH HOLE, DC, 182 SERIES, STEEL BODY

Deep-Dive with AI

DocumentsBackshell Reference GuideDatasheet+2

Technical Specifications

Parameters and characteristics for this part

Specification182-037-113R181
Backset Spacing8.08 mm
Backset Spacing0.318 "
ColorBlack
Connector StyleD-Sub
Connector TypePlug, Male Pins
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA9T), Nylon 9T
FeaturesGround Strap, Grounding Indents
Flange FeatureMating Side, Female Screwlock, 4-40
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Panel Mount, Right Angle
Number of Positions37
Number of Rows [custom]2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 C
Shell Material, FinishSteel, Nickel Plated
Shell Size, Connector Layout4
Shell Size, Connector LayoutDC, C
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyN/A 151$ 6.34
Tray 1$ 7.68
10$ 5.88
25$ 5.31
40$ 5.04
80$ 4.68
230$ 4.19
440$ 3.92
945$ 3.64
2400$ 3.33
NewarkEach 500$ 4.63
1000$ 3.94
5000$ 3.54

Description

General part information

182-037 Series

37 Position D-Sub Plug, Male Pins Connector
