NORCOMP 182-009-113R161
Connectors, Interconnects

182-037-113R561

Active
NorComp Inc.

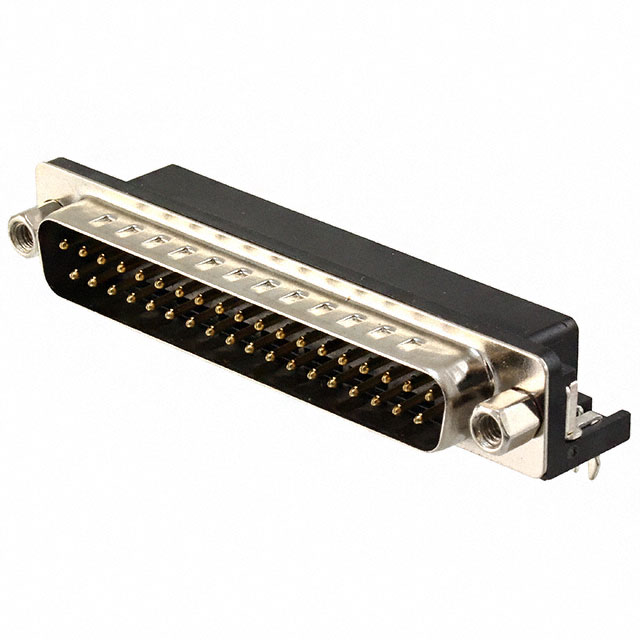

D SUB CONNECTOR, RIGHT ANGLE, DB37, 37 CONTACTS, PLUG, SOLDER, DC, 182 SERIES, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

Documents3D Product Image ENWhite Papers EN+1
NORCOMP 182-009-113R161
Connectors, Interconnects

182-037-113R561

Active
NorComp Inc.

D SUB CONNECTOR, RIGHT ANGLE, DB37, 37 CONTACTS, PLUG, SOLDER, DC, 182 SERIES, STEEL BODY

Deep-Dive with AI

Documents3D Product Image ENWhite Papers EN+1

Technical Specifications

Parameters and characteristics for this part

Specification182-037-113R561
Backset Spacing8.08 mm
Backset Spacing0.318 "
ColorBlack
Connector StyleD-Sub
Connector TypePlug, Male Pins
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA9T), Nylon 9T
FeaturesGrounding Indents, Board Lock
Flange FeatureMating Side, Female Screwlock, 4-40
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Panel Mount, Right Angle
Number of Positions37
Number of Rows [custom]2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 C
Shell Material, FinishSteel, Nickel Plated
Shell Size, Connector Layout4
Shell Size, Connector LayoutDC, C
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyN/A 0$ 4.75
Tray 520$ 2.89
NewarkEach 500$ 3.42
1000$ 2.84

Description

General part information

182-037 Series

37 Position D-Sub Plug, Male Pins Connector
