Connectors, Interconnects

182-037-112-171

Obsolete

NorComp Inc.

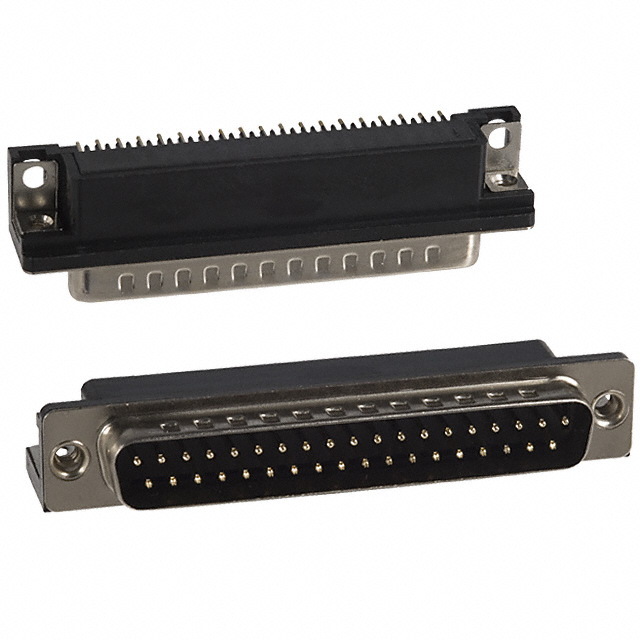

CONN D-SUB PLUG 37POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Connectors, Interconnects

182-037-112-171

Obsolete

NorComp Inc.

CONN D-SUB PLUG 37POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	182-037-112-171

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyester, Glass Filled
Features	Ground Strap, Grounding Indents
Flange Feature	Housing/Shell
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount, Right Angle
Number of Positions	37
Number of Rows [custom]	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 C
Shell Size, Connector Layout	4
Shell Size, Connector Layout	DC, C
Termination	Solder

182-037 Series

Part	Dielectric Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Number of Positions	Contact Type	Connector Type	Shell Material, Finish	Backset Spacing	Backset Spacing	Contact Finish	Termination	Number of Rows [custom]	Flange Feature	Shell Size, Connector Layout	Shell Size, Connector Layout	Material Flammability Rating	Current Rating (Amps)	Connector Style	Mounting Type	Features	Contact Material	Flange Feature
NorComp Inc. 182-037-213R431	Nylon 9T Polyamide (PA9T)	Black	-55 C	105 ░C	Flash	37	Signal	Receptacle Female Sockets	Nickel Plated Steel	8.08 mm	0.318 "	Gold	Solder	2	Housing/Shell (Unthreaded)	4	DC C	UL94 V-0	5 A	D-Sub	Panel Mount Right Angle Through Hole
NorComp Inc. 182-037-213R181	Nylon 9T Polyamide (PA9T)	Black	-55 C	105 ░C	Flash	37	Signal	Receptacle Female Sockets	Nickel Plated Steel	8.08 mm	0.318 "	Gold	Solder	2	4-40 Mating Side Female Screwlock	4	DC C	UL94 V-0	5 A	D-Sub	Panel Mount Right Angle Through Hole	Ground Strap
NorComp Inc. 182-037-212-161	Polyester Glass Filled	Black	-55 C	105 ░C	Flash	37	Signal	Receptacle Female Sockets		8.08 mm	0.318 "	Gold	Solder	2	Housing/Shell (Unthreaded)	4	DC C	UL94 V-0	5 A	D-Sub	Panel Mount Right Angle Through Hole	Ground Strap
NorComp Inc. 182-037-113R451	Nylon 9T Polyamide (PA9T)	Black	-55 C	105 ░C	Flash	37	Signal	Plug Male Pins	Nickel Plated Steel	8.08 mm	0.318 "	Gold	Solder	2	Housing/Shell	4	DC C	UL94 V-0	5 A	D-Sub	Panel Mount Right Angle Through Hole	Grounding Indents	Brass	4-40
NorComp Inc. 182-037-112-171	Polyester Glass Filled	Black	-55 C	105 ░C	Flash	37	Signal	Plug Male Pins		8.08 mm	0.318 "	Gold	Solder	2	Housing/Shell	4	DC C	UL94 V-0	5 A	D-Sub	Panel Mount Right Angle Through Hole	Ground Strap Grounding Indents		4-40
NorComp Inc. 182-037-113R481	Nylon 9T Polyamide (PA9T)	Black	-55 C	105 ░C	Flash	37	Signal	Plug Male Pins	Nickel Plated Steel	8.08 mm	0.318 "	Gold	Solder	2	4-40 Mating Side Female Screwlock	4	DC C	UL94 V-0	5 A	D-Sub	Panel Mount Right Angle Through Hole	Grounding Indents	Brass
NorComp Inc. 182-037-213R561	Nylon 9T Polyamide (PA9T)	Black	-55 C	105 ░C	Flash	37	Signal	Receptacle Female Sockets	Nickel Plated Steel	8.08 mm	0.318 "	Gold	Solder	2	4-40 Mating Side Female Screwlock	4	DC C	UL94 V-0	5 A	D-Sub	Panel Mount Right Angle Through Hole	Board Lock
NorComp Inc. 182-037-213R451	Nylon 9T Polyamide (PA9T)	Black	-55 C	105 ░C	Flash	37	Signal	Receptacle Female Sockets	Nickel Plated Steel	8.08 mm	0.318 "	Gold	Solder	2	Housing/Shell	4	DC C	UL94 V-0	5 A	D-Sub	Panel Mount Right Angle Through Hole			4-40
NorComp Inc. 182-037-113R561	Nylon 9T Polyamide (PA9T)	Black	-55 C	105 ░C	Flash	37	Signal	Plug Male Pins	Nickel Plated Steel	8.08 mm	0.318 "	Gold	Solder	2	4-40 Mating Side Female Screwlock	4	DC C	UL94 V-0	5 A	D-Sub	Panel Mount Right Angle Through Hole	Board Lock Grounding Indents	Brass
NorComp Inc. 182-037-113R181	Nylon 9T Polyamide (PA9T)	Black	-55 C	105 ░C	Flash	37	Signal	Plug Male Pins	Nickel Plated Steel	8.08 mm	0.318 "	Gold	Solder	2	4-40 Mating Side Female Screwlock	4	DC C	UL94 V-0	5 A	D-Sub	Panel Mount Right Angle Through Hole	Ground Strap Grounding Indents	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	0	$ 1.34

Description

General part information

182-037 Series

37 Position D-Sub Plug, Male Pins Connector
