NORCOMP 182-009-113R161
Connectors, Interconnects

182-009-113R181

Active
NorComp Inc.

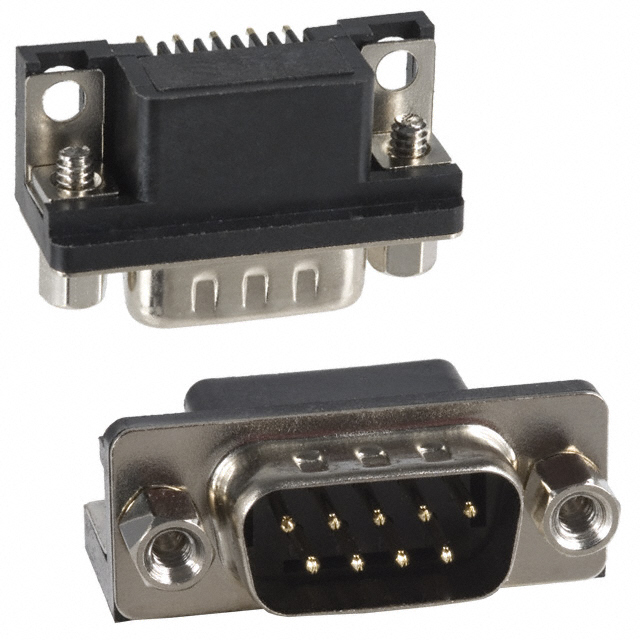

D SUB CONNECTOR, DB9, 9 CONTACTS, PLUG, SOLDER, DE, 182 SERIES, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

Documents3D Product Image ENWhite Papers EN+2
NORCOMP 182-009-113R161
Connectors, Interconnects

182-009-113R181

Active
NorComp Inc.

D SUB CONNECTOR, DB9, 9 CONTACTS, PLUG, SOLDER, DE, 182 SERIES, STEEL BODY

Deep-Dive with AI

Documents3D Product Image ENWhite Papers EN+2

Technical Specifications

Parameters and characteristics for this part

Specification182-009-113R181
Backset Spacing8.08 mm
Backset Spacing0.318 "
ColorBlack
Connector StyleD-Sub
Connector TypePlug, Male Pins
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA9T), Nylon 9T
FeaturesGround Strap, Grounding Indents
Flange FeatureMating Side, Female Screwlock, 4-40
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Panel Mount, Right Angle
Number of Positions9
Number of Rows [custom]2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 C
Shell Material, FinishSteel, Nickel Plated
Shell Size, Connector Layout [custom]1
Shell Size, Connector Layout [custom]DE, E
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyN/A 4277$ 2.66
Tray 1$ 2.60
10$ 2.36
25$ 2.24
40$ 2.18
90$ 2.08
270$ 1.82
450$ 1.77
990$ 1.51
2430$ 1.40
NewarkEach 500$ 1.85
1000$ 1.58
5000$ 1.40
10000$ 1.37

Description

General part information

182-009 Series

9 Position D-Sub Plug, Male Pins Connector
