182-009 Series
Manufacturer: NorComp Inc.
Beta
⌘K

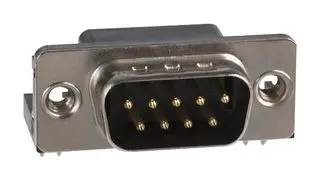

D SUB CONNECTOR, DB9, 9 CONTACTS, PLUG, SOLDER, DE, 182 SERIES, STEEL BODY
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Current Rating (Amps) | Connector Type | Connector Style | Contact Finish | Contact Type | Material Flammability Rating | Backset Spacing | Backset Spacing | Contact Finish Thickness | Termination | Shell Material, Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Features | Number of Rows [custom] | Number of Positions | Mounting Type | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Brass | -55 C | 105 ░C | Black | Nylon 9T Polyamide (PA9T) | 5 A | Plug Male Pins | D-Sub | Gold | Signal | UL94 V-0 | 8.08 mm | 0.318 " | Flash | Solder | Nickel Plated Steel | 1 | DE E | Ground Strap Grounding Indents | 2 | 9 | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | |
 NorComp Inc. | -55 C | 105 ░C | Black | Polyester Glass Filled | 5 A | Receptacle Female Sockets | D-Sub | Gold | Signal | UL94 V-0 | 8.08 mm | 0.318 " | Flash | Solder | 1 | DE E | 2 | 9 | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | ||||
 NorComp Inc. | -55 C | 105 ░C | Black | Polyester Glass Filled | 5 A | Plug Male Pins | D-Sub | Gold | Signal | UL94 V-0 | 8.08 mm | 0.318 " | Flash | Solder | 1 | DE E | Ground Strap Grounding Indents | 2 | 9 | Panel Mount Right Angle Through Hole | Housing/Shell | 4-40 | ||
 NorComp Inc. | -55 C | 105 ░C | Black | Nylon 9T Polyamide (PA9T) | 5 A | Receptacle Female Sockets | D-Sub | Gold | Signal | UL94 V-0 | 8.08 mm | 0.318 " | Flash | Solder | Nickel Plated Steel | 1 | DE E | Ground Strap | 2 | 9 | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | ||
 NorComp Inc. | Brass | -55 C | 105 ░C | Black | Nylon 9T Polyamide (PA9T) | 5 A | Plug Male Pins | D-Sub | Gold | Signal | UL94 V-0 | 8.08 mm | 0.318 " | Flash | Solder | Nickel Plated Steel | 1 | DE E | Ground Strap Grounding Indents | 2 | 9 | Panel Mount Right Angle Through Hole | Housing/Shell (Unthreaded) | |
NorComp Inc. | -55 C | 105 ░C | Black | Polyester Glass Filled | 5 A | Plug Male Pins | D-Sub | Gold | Signal | UL94 V-0 | 8.08 mm | 0.318 " | Flash | Solder | 1 | DE E | Board Lock Grounding Indents | 2 | 9 | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | |||
NorComp Inc. | -55 C | 105 ░C | Black | Polyester Glass Filled | 5 A | Receptacle Female Sockets | D-Sub | Gold | Signal | UL94 V-0 | 8.08 mm | 0.318 " | Flash | Solder | 1 | DE E | Ground Strap | 2 | 9 | Panel Mount Right Angle Through Hole | Housing/Shell (Unthreaded) | |||
NorComp Inc. | Brass | -55 C | 105 ░C | Black | Nylon 9T Polyamide (PA9T) | 5 A | Plug Male Pins | D-Sub | Gold | Signal | UL94 V-0 | 8.08 mm | 0.318 " | Flash | Solder | Nickel Plated Steel | 1 | DE E | Grounding Indents | 2 | 9 | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | |
NorComp Inc. | -55 C | 105 ░C | Black | Nylon 9T Polyamide (PA9T) | 5 A | Receptacle Female Sockets | D-Sub | Gold | Signal | UL94 V-0 | 8.08 mm | 0.318 " | Flash | Solder | Nickel Plated Steel | 1 | DE E | 2 | 9 | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | |||
 NorComp Inc. | Brass | -55 C | 105 ░C | Black | Nylon 9T Polyamide (PA9T) | 5 A | Plug Male Pins | D-Sub | Gold | Signal | UL94 V-0 | 8.08 mm | 0.318 " | Flash | Solder | Nickel Plated Steel | 1 | DE E | Board Lock Grounding Indents | 2 | 9 | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock |
