Connectors, Interconnects

182-009-112-561

Obsolete

NorComp Inc.

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Connectors, Interconnects

182-009-112-561

Obsolete

NorComp Inc.

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	182-009-112-561

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyester, Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Mating Side, Female Screwlock, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount, Right Angle
Number of Positions	9
Number of Rows [custom]	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 C
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	DE, E
Termination	Solder

182-009 Series

Part	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Dielectric Material	Current Rating (Amps)	Connector Type	Connector Style	Contact Finish	Contact Type	Material Flammability Rating	Backset Spacing	Backset Spacing	Contact Finish Thickness	Termination	Shell Material, Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Features	Number of Rows [custom]	Number of Positions	Mounting Type	Flange Feature	Flange Feature
NorComp Inc. 182-009-113R181	Brass	-55 C	105 ░C	Black	Nylon 9T Polyamide (PA9T)	5 A	Plug Male Pins	D-Sub	Gold	Signal	UL94 V-0	8.08 mm	0.318 "	Flash	Solder	Nickel Plated Steel	1	DE E	Ground Strap Grounding Indents	2	9	Panel Mount Right Angle Through Hole	4-40 Mating Side Female Screwlock
NorComp Inc. 182-009-212-481		-55 C	105 ░C	Black	Polyester Glass Filled	5 A	Receptacle Female Sockets	D-Sub	Gold	Signal	UL94 V-0	8.08 mm	0.318 "	Flash	Solder		1	DE E		2	9	Panel Mount Right Angle Through Hole	4-40 Mating Side Female Screwlock
NorComp Inc. 182-009-112-171		-55 C	105 ░C	Black	Polyester Glass Filled	5 A	Plug Male Pins	D-Sub	Gold	Signal	UL94 V-0	8.08 mm	0.318 "	Flash	Solder		1	DE E	Ground Strap Grounding Indents	2	9	Panel Mount Right Angle Through Hole	Housing/Shell	4-40
NorComp Inc. 182-009-213R181		-55 C	105 ░C	Black	Nylon 9T Polyamide (PA9T)	5 A	Receptacle Female Sockets	D-Sub	Gold	Signal	UL94 V-0	8.08 mm	0.318 "	Flash	Solder	Nickel Plated Steel	1	DE E	Ground Strap	2	9	Panel Mount Right Angle Through Hole	4-40 Mating Side Female Screwlock
NorComp Inc. 182-009-113R161	Brass	-55 C	105 ░C	Black	Nylon 9T Polyamide (PA9T)	5 A	Plug Male Pins	D-Sub	Gold	Signal	UL94 V-0	8.08 mm	0.318 "	Flash	Solder	Nickel Plated Steel	1	DE E	Ground Strap Grounding Indents	2	9	Panel Mount Right Angle Through Hole	Housing/Shell (Unthreaded)
NorComp Inc. 182-009-112-561		-55 C	105 ░C	Black	Polyester Glass Filled	5 A	Plug Male Pins	D-Sub	Gold	Signal	UL94 V-0	8.08 mm	0.318 "	Flash	Solder		1	DE E	Board Lock Grounding Indents	2	9	Panel Mount Right Angle Through Hole	4-40 Mating Side Female Screwlock
NorComp Inc. 182-009-212-161		-55 C	105 ░C	Black	Polyester Glass Filled	5 A	Receptacle Female Sockets	D-Sub	Gold	Signal	UL94 V-0	8.08 mm	0.318 "	Flash	Solder		1	DE E	Ground Strap	2	9	Panel Mount Right Angle Through Hole	Housing/Shell (Unthreaded)
NorComp Inc. 182-009-113R481	Brass	-55 C	105 ░C	Black	Nylon 9T Polyamide (PA9T)	5 A	Plug Male Pins	D-Sub	Gold	Signal	UL94 V-0	8.08 mm	0.318 "	Flash	Solder	Nickel Plated Steel	1	DE E	Grounding Indents	2	9	Panel Mount Right Angle Through Hole	4-40 Mating Side Female Screwlock
NorComp Inc. 182-009-213R481		-55 C	105 ░C	Black	Nylon 9T Polyamide (PA9T)	5 A	Receptacle Female Sockets	D-Sub	Gold	Signal	UL94 V-0	8.08 mm	0.318 "	Flash	Solder	Nickel Plated Steel	1	DE E		2	9	Panel Mount Right Angle Through Hole	4-40 Mating Side Female Screwlock

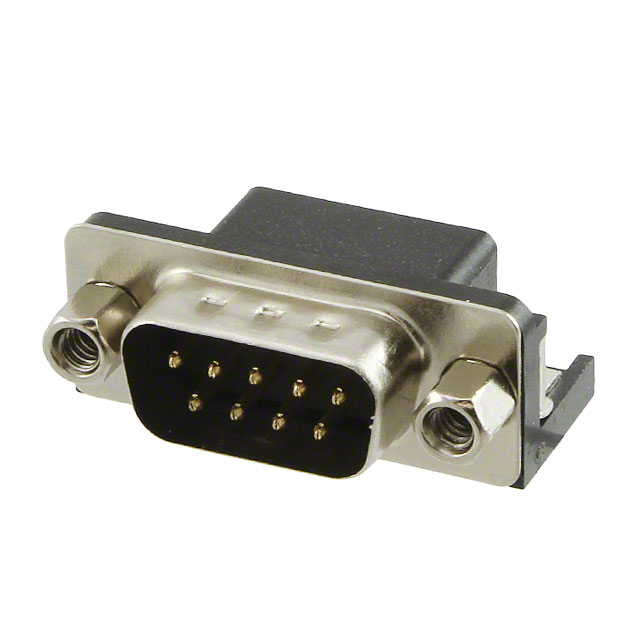

NorComp Inc. 182-009-113R561	Brass	-55 C	105 ░C	Black	Nylon 9T Polyamide (PA9T)	5 A	Plug Male Pins	D-Sub	Gold	Signal	UL94 V-0	8.08 mm	0.318 "	Flash	Solder	Nickel Plated Steel	1	DE E	Board Lock Grounding Indents	2	9	Panel Mount Right Angle Through Hole	4-40 Mating Side Female Screwlock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	0	$ 0.80

Description

General part information

182-009 Series

9 Position D-Sub Plug, Male Pins Connector
