Motors, Actuators, Solenoids and Drivers

PD60-4-1160-TMCL

Active

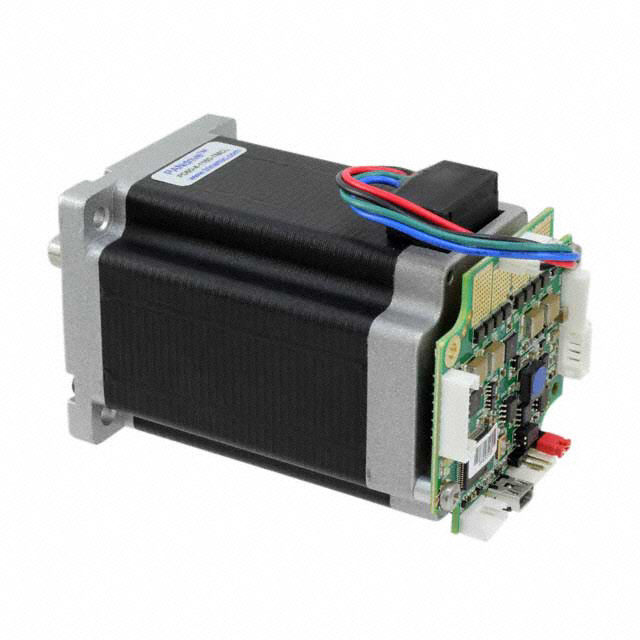

NEMA 23 SMART STEPPER MOTOR 9 TO 51V, 55NCM, 256 ΜSTEPS, WITH USB, S/D, CAN AND RS485 INTERFACE, SENSOSTEP, STALLGUARD2 AND COOLSTEP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPd 1160 Canopen Firmware Manual Fw3.20 (Rev.2.12)Pd 1160 Tmcl Firmware Manual Fw1.46 (Rev.1.09)+3

Motors, Actuators, Solenoids and Drivers

PD60-4-1160-TMCL

Active

Analog Devices Inc./Maxim Integrated

NEMA 23 SMART STEPPER MOTOR 9 TO 51V, 55NCM, 256 ΜSTEPS, WITH USB, S/D, CAN AND RS485 INTERFACE, SENSOSTEP, STALLGUARD2 AND COOLSTEP

Deep-Dive with AI

DocumentsPd 1160 Canopen Firmware Manual Fw3.20 (Rev.2.12)Pd 1160 Tmcl Firmware Manual Fw1.46 (Rev.1.09)+3

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PD60-4-1160-TMCL

Coil Type	Bipolar
Current Rating (Amps)	2.8 A
Diameter - Shaft [diameter]	0.315 in
Diameter - Shaft [diameter]	8 mm
Features	Integrated Controller, Flatted Shaft
Length - Shaft and Bearing [x]	24 mm
Length - Shaft and Bearing [x]	0.945 "
Mounting Hole Spacing [custom]	1.856 in
Mounting Hole Spacing [custom]	47.14 mm
NEMA Frame Size	24
Size / Dimension [x]	2.362 in
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Size / Dimension [y]	2.362 in
Step Angle	1.8 °
Steps per Revolution	200
Torque - Holding (oz-in / mNm)	3100 mNm
Torque - Holding (oz-in / mNm)	438.99 oz-in
Type	Hybrid
Voltage - Rated	48 VDC

PD60-4 Series

NEMA 23 smart stepper motor 12 to 52V, 55Ncm, 256 µSteps, SixPoint ramp controller with CAN interface, SensOstep, StallGuard2 and CoolStep, StealthChop

Part	Step Angle	Accuracy	Rotor Inertia	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Coil Resistance	NEMA Frame Size	Features	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Coil Type	Steps per Revolution	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Rated	Type	Size / Dimension [x]	Size / Dimension [y]	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Mounting Hole Spacing [custom]	Mounting Hole Spacing [custom]

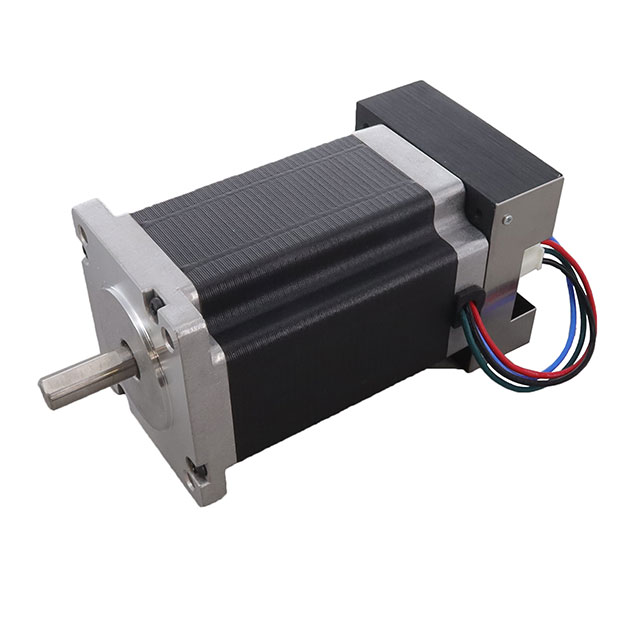

Analog Devices Inc./Maxim Integrated PD60-4H-1378-CANOPEN	1.8 1.8 °	5 % 5 %	840 gcm²	50 °C	-20 ░C	9 A	0.15 Ohms	24	Flatted Shaft Integrated Controller	424.93 oz-in	3000 mNm	Bipolar	200	2.362 in	60 mm	60 mm	2.362 in	2.1 V	Hybrid

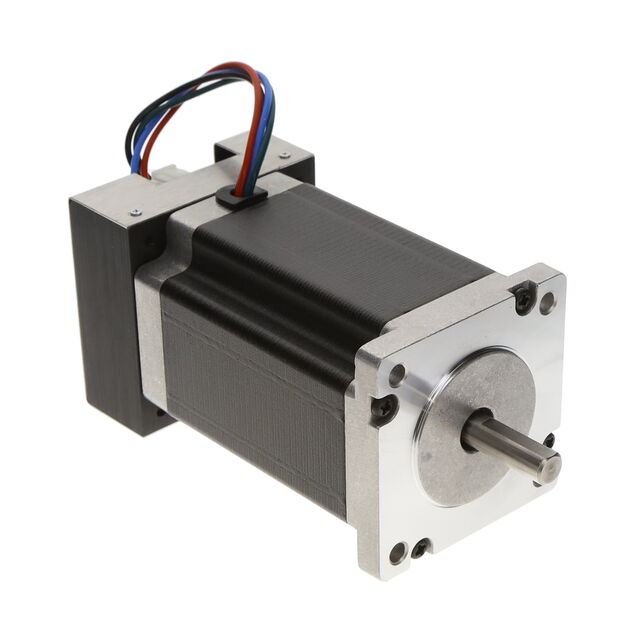

Analog Devices Inc./Maxim Integrated PD60-4H-1278-CANOPEN	1.8 1.8 °	5 % 5 %	840 gcm²	50 °C	-20 ░C	9 A	15 Ohms	24	Flatted Shaft Integrated Controller	424.93 oz-in	3000 mNm	Bipolar	200		86 mm	86 mm		2.1 V	Hybrid	3.386 "	3.386 in

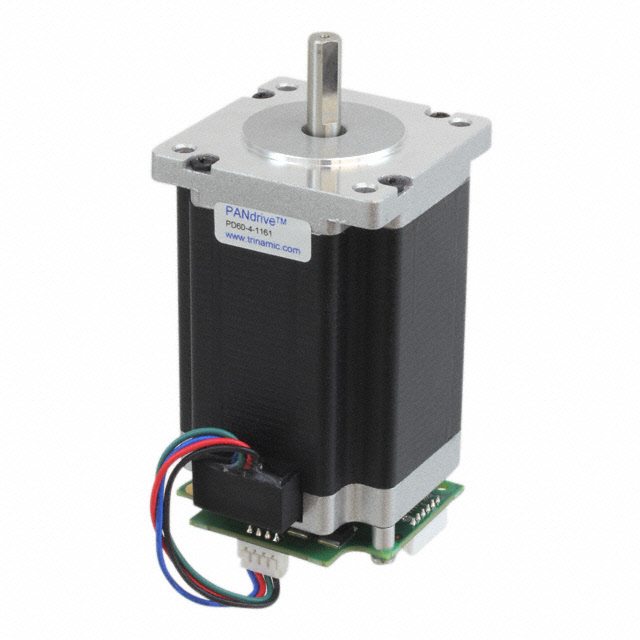

Analog Devices Inc./Maxim Integrated PD60-4-1161	1.8 °					2.8 A		24	Flatted Shaft Integrated Controller	438.99 oz-in	3100 mNm	Bipolar	200	2.362 in	60 mm	60 mm	2.362 in	24 VDC	Hybrid			0.315 in	8 mm	24 mm	0.945 "	1.856 in	47.14 mm
Analog Devices Inc./Maxim Integrated PD60-4-1160-CANOPEN	1.8 °					2.8 A		24	Flatted Shaft Integrated Controller	438.99 oz-in	3100 mNm	Bipolar	200	2.362 in	60 mm	60 mm	2.362 in	48 VDC	Hybrid			0.315 in	8 mm	24 mm	0.945 "	1.856 in	47.14 mm
Analog Devices Inc./Maxim Integrated PD60-4-1260-TMCL	1.8 °		840 gcm²	50 °C	-20 ░C	2.8 A		24	Flatted Shaft Integrated Controller	438.99 oz-in	3100 mNm	Bipolar	200	2.362 in	60 mm	60 mm	2.362 in	6.8 V	Hybrid			0.315 in	8 mm	24 mm	0.945 "	1.856 in	47.14 mm
Analog Devices Inc./Maxim Integrated PD60-4-1260-CANOPEN	1.8 °		840 gcm²	50 °C	-20 ░C	2.8 A		24	Flatted Shaft Integrated Controller	438.99 oz-in	3100 mNm	Bipolar	200	2.362 in	60 mm	60 mm	2.362 in	6.8 V	Hybrid			0.315 in	8 mm	24 mm	0.945 "	1.856 in	47.14 mm
Analog Devices Inc./Maxim Integrated PD60-4-1076	1.8 °	5 %	840 gcm²	50 °C	-20 ░C	2.8 A	1.5 Ohms	24	Flatted Shaft Integrated Controller	438.99 oz-in	3100 mNm	Bipolar	200	2.362 in	60 mm	60 mm	2.362 in	4.17 VDC	Hybrid
Analog Devices Inc./Maxim Integrated PD60-4H-1278-TMCL	1.8 °	5 %	840 gcm²	50 °C	-20 ░C	9 A	0.15 Ohms	24	Flatted Shaft Integrated Controller	424.93 oz-in	3000 mNm	Bipolar	200		86 mm	86 mm		2.1 V	Hybrid	3.386 "	3.386 in
Analog Devices Inc./Maxim Integrated PD60-4-1160-TMCL	1.8 °					2.8 A		24	Flatted Shaft Integrated Controller	438.99 oz-in	3100 mNm	Bipolar	200	2.362 in	60 mm	60 mm	2.362 in	48 VDC	Hybrid			0.315 in	8 mm	24 mm	0.945 "	1.856 in	47.14 mm
Analog Devices Inc./Maxim Integrated PD60-4-1276-TMCL	1.8 °	5 %	840 gcm²	50 °C	-20 ░C	2.8 A	1.5 Ohms	24	Flatted Shaft Integrated Controller	438.99 oz-in	3100 mNm	Bipolar	200	2.362 in	60 mm	60 mm	2.362 in	4.17 VDC	Hybrid

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Case	1	$ 362.41
		5	$ 333.06
		10	$ 331.04
	N/A	2	$ 359.15

Description

General part information

PD60-4 Series

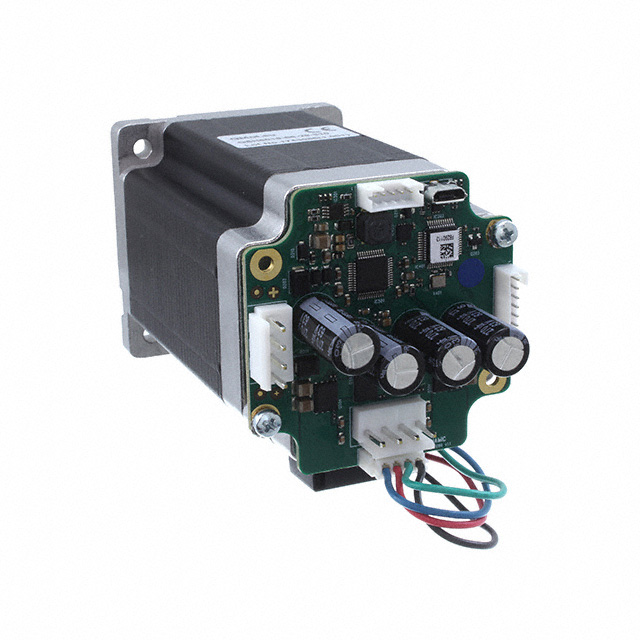

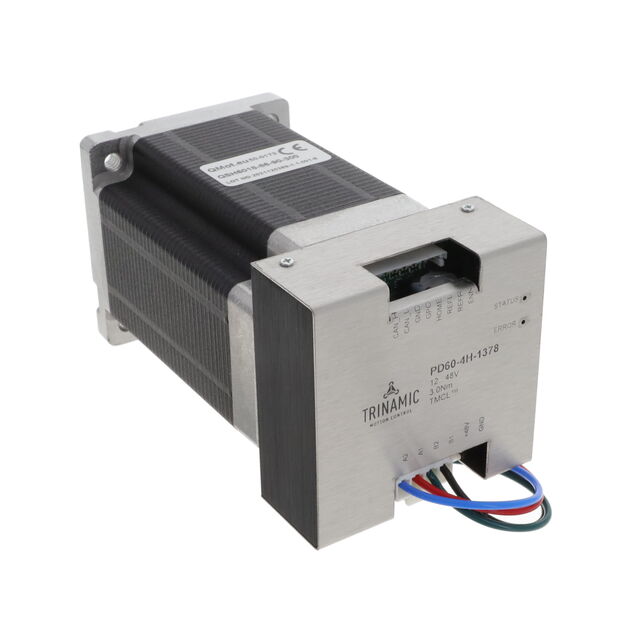

PD60/86-1278 is a full-mechatronic solution combining of easy-to-use, high-power motion controller/ driver module and PANdrive™smart stepper motor.The driver module is conveniently mounted on the NEMA24/34 size PANdrive™motor. This driver module is controlled via a CAN bus interface and comes with two firmware options – TMCL™and CANopen®. PD60/86-1278 features StealthChop™for absolute silent motor control, SpreadCycle™for high speed stepper motor commutation, a fully integrated hardware motion controller with SixPoint™motion ramps, as well as StallGuard2™and CoolStep™.All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.More about the TMCL-IDEAPPLICATIONSLab-AutomationManufacturingRoboticsFactory AutomationCNC

Documents

Technical documentation and resources

PD60-4-1160-TMCL

Deep-Dive with AI

PD60-4-1160-TMCL

Deep-Dive with AI

Technical Specifications

PD60-4 Series

Pricing

Description

PD60-4 Series

Documents

Pd 1160 Canopen Firmware Manual Fw3.20 (Rev.2.12)

Pd 1160 Tmcl Firmware Manual Fw1.46 (Rev.1.09)

Pd 1160 Hardware Manual Hw1.10 (Rev.1.02)

Pd 1160 Canopen Firmware Manual Fw3.25 (Rev.2.13)

Pd 1160 Tmcl Firmware Manual Fw1.47 (Rev.1.10)

PD60-4 Series
