Traco Power is a Swiss manufacturer of high-quality DC-DC converters and AC-DC power supplies, delivering reliable power solutions for industrial, medical, communications, and transportation applications since 1944.
Parts that are not part of a series
Company background and product focus
Traco Power, headquartered in Baar, Switzerland, has been a recognized brand name in power conversion for over 35 years, with company roots dating back to 1944. Traco Power specializes in designing and manufacturing high-quality DC-DC converters and AC-DC power supplies for demanding applications worldwide.
Traco Power's product portfolio includes:
Traco Power products are designed for high reliability across industrial, commercial, communications, transportation, and medical applications. With TRACO Power North America supporting distribution and customers directly, the company provides comprehensive technical and commercial support throughout the Americas.
© 2026 Zenode. All rights reserved.
Product families from Traco Power
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
ACCESSORYPower-Sonic Sealing Strip;Motorcycle Batt. | External/Internal Power Supply Accessories | 2 | Active | Power-Sonic Sealing Strip;Motorcycle Batt. |

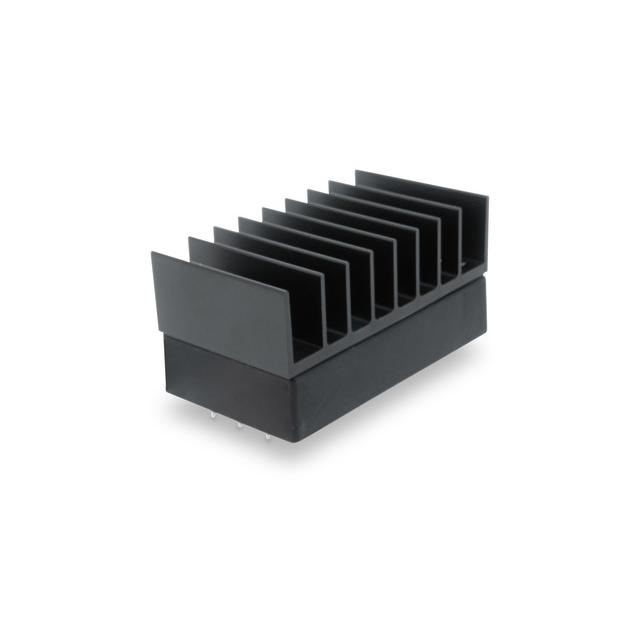

AccessoryHeat Sinks Product Type: DC/DC; Package Style: Heatsink; Output Power (W): N/A; Input Voltage: N/A; Output 1 (Vdc): N/A; Output 2 (Vdc): N/A; Output 3 (Vdc): N/A | Inductors, Coils, Chokes | 4 | Active | Heat Sinks Product Type: DC/DC; Package Style: Heatsink; Output Power (W): N/A; Input Voltage: N/A; Output 1 (Vdc): N/A; Output 2 (Vdc): N/A; Output 3 (Vdc): N/A |
| Power Supplies - Board Mount | 18 | Active | ||
| DC DC Converters | 2 | Active | ||
| Power Supplies - Board Mount | 8 | Active | ||
| Industrial, DIN Rail Power Supplies | 2 | Active | ||
| Power Supplies - External/Internal (Off-Board) | 1 | Active | ||
| Power Supplies - External/Internal (Off-Board) | 1 | Active | ||
TBLCDIN Rail Power Supplies | Industrial, DIN Rail Power Supplies | 1 | Active | DIN Rail Power Supplies |
| Industrial, DIN Rail Power Supplies | 1 | Active |
Parts from Traco Power that are not part of a series
| Part Information | Pricing (lowest) | Current - Output (Max) | Features | Power (Watts) | Type | Voltage - Input (Max) | Voltage - Output 1 | Operating Temperature (Max) | Operating Temperature (Min) | Size / Dimension Length | Size / Dimension Height | Size / Dimension Width | Voltage - Input (Min) | Number of Outputs | Package / Case | Efficiency | Voltage - Isolation | Mounting Type | Applications | Package Leads | Package Name |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power DC DC CONVERTER 3.3V 858MW | Sign in to see pricing | 260 mA | SCP | 858 mW | Isolated Module | 3.63 V | 3.3 V | 95 °C | -40 °C | 0.46 in | 0.4 in | 0.24 in | 2.97 V | 1 | 4-SIP Module | 73 % | 1500 Vrns | Through Hole | ITE (Commercial) | — | — |
Traco Power DC DC CONVERTER 5V 1W | Sign in to see pricing | 200 mA | SCP | 1 W | Isolated Module | 3.63 V | 5 V | 95 °C | -40 °C | 0.46 in | 0.4 in | 0.24 in | 2.97 V | 1 | 4-SIP Module | 76 % | 1500 Vrns | Through Hole | ITE (Commercial) | — | — |
 Traco Power DC DC CONVERTER 5V 1W | Sign in to see pricing | 200 mA | SCP | 1 W | Isolated Module | 5.5 V | 5 V | 95 °C | -40 °C | 0.46 in | 0.4 in | 0.24 in | 4.5 V | 1 | 4-SIP Module | 79 % | 1500 Vrns | Through Hole | ITE (Commercial) | — | — |
 Traco Power DC DC CONVERTER 5V 1W | Sign in to see pricing | 200 mA | SCP | 1 W | Isolated Module | 5.5 V | 5 V | 95 °C | -40 °C | 0.77 in | 0.39 in | 0.24 in | 4.5 V | 1 | — | 79 % | 1500 Vrns | Through Hole | ITE (Commercial) | 4 Leads | 7-SIP Module |
 Traco Power DC DC CONVERTER 5V 1W | Sign in to see pricing | 200 mA | SCP | 1 W | Isolated Module | 5.5 V | 5 V | 95 °C | -40 °C | 0.77 in | 0.39 in | 0.24 in | 4.5 V | 1 | — | 79 % | 3 kV | Through Hole | ITE (Commercial) | 4 Leads | 7-SIP Module |
Traco Power DC DC CONVERTER 12V 960MW | Sign in to see pricing | 80 mA | SCP | 960 mW | Isolated Module | 5.5 V | 12 V | 95 °C | -40 °C | 0.46 in | 0.4 in | 0.24 in | 4.5 V | 1 | 4-SIP Module | 82 % | 1500 Vrns | Through Hole | ITE (Commercial) | — | — |
 Traco Power DC DC CONVERTER 12V 1W | Sign in to see pricing | 84 mA | SCP | 1 W | Isolated Module | 5.5 V | 12 V | 95 °C | -40 °C | 0.77 in | 0.39 in | 0.24 in | 4.5 V | 1 | — | 82 % | 1500 Vrns | Through Hole | ITE (Commercial) | 4 Leads | 7-SIP Module |
 Traco Power DC DC CONVERTER 12V 1W | Sign in to see pricing | 84 mA | SCP | 1 W | Isolated Module | 5.5 V | 12 V | 95 °C | -40 °C | 0.77 in | 0.39 in | 0.24 in | 4.5 V | 1 | — | 82 % | 3 kV | Through Hole | ITE (Commercial) | 4 Leads | 7-SIP Module |
 Traco Power DC DC CONVERTER 15V 990MW | Sign in to see pricing | 66 mA | SCP | 0.99 W | Isolated Module | 5.5 V | 15 V | 95 °C | -40 °C | 0.77 in | 0.39 in | 0.24 in | 4.5 V | 1 | — | 82 % | 3 kV | Through Hole | ITE (Commercial) | 4 Leads | 7-SIP Module |
Traco Power DC DC CONVERTER 9V 999MW | Sign in to see pricing | 111 mA | SCP | 999 mW | Isolated Module | 5.5 V | 9 V | 95 °C | -40 °C | 0.77 in | 0.39 in | 0.24 in | 4.5 V | 1 | — | 80 % | 3 kV | Through Hole | ITE (Commercial) | 4 Leads | 7-SIP Module |
