TBA 1 Series
Manufacturer: Traco Power
Beta
⌘K

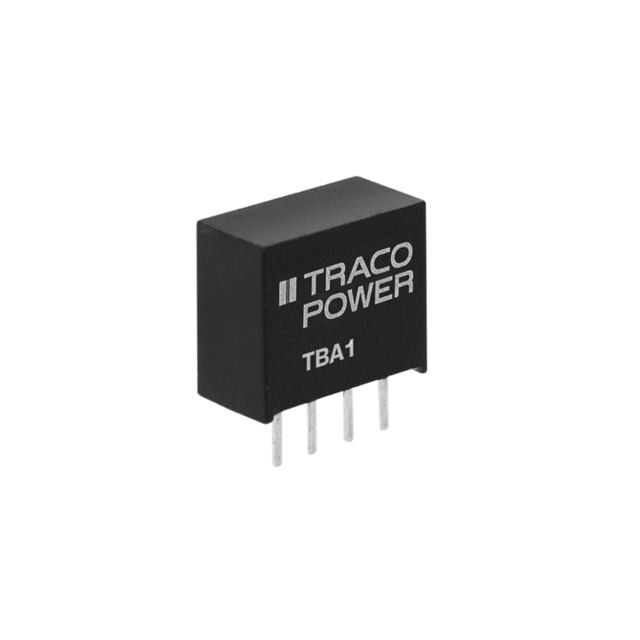

MODULE DC-DC 12VIN 1-OUT 5V 0.2A 1W 4-PIN SIP MODULE
| Part | Voltage - Output 1 | Type | Voltage - Input (Min) [Min] | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Efficiency | Number of Outputs | Voltage - Input (Max) [Max] | Mounting Type | Package / Case | Features | Voltage - Isolation | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Power (Watts) | Size / Dimension [y] | Size / Dimension [z] | Voltage - Output 2 | Current - Output (Max) [Min] | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 5 V | Isolated Module | 10.8 V | ITE (Commercial) | 95 °C | -40 °C | 200 mA | 79 % | 1 | 13.2 V | Through Hole | 4-SIP Module | SCP | 1.5 kV | 11.7 mm | 0.46 in | 10.2 mm | 0.4 " | 0.24 " | 6 mm | |||||||
 Traco Power | 9 V | Isolated Module | 4.5 V | ITE (Commercial) | 95 °C | -40 °C | 110 mA | 80 % | 1 | 5.5 V | Through Hole | 4-SIP Module | SCP | 1.5 kV | 11.7 mm | 0.46 in | 10.2 mm | 0.4 " | 0.24 " | 6 mm | 0.99 W | ||||||

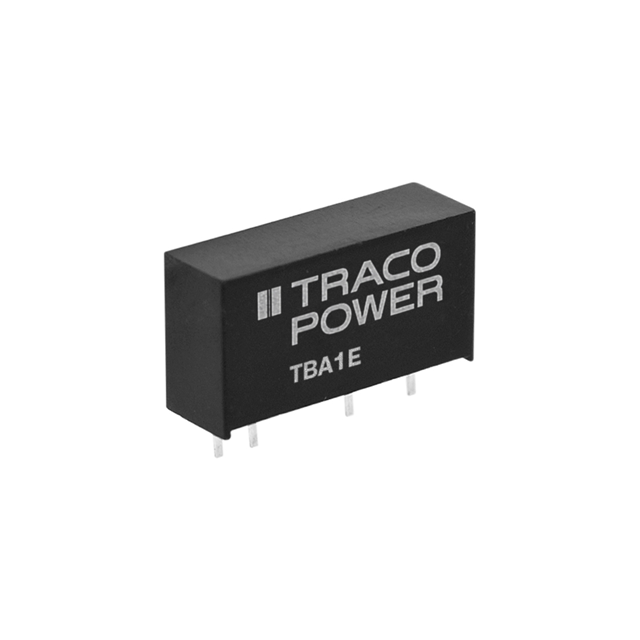

 Traco Power | 15 V | Isolated Module | 21.6 V | ITE (Commercial) | 95 °C | -40 °C | 66 mA | 1 | 26.4 V | Through Hole | 7-SIP Module 4 Leads | SCP | 1.5 kV | 19.5 mm | 0.77 in | 0.39 " | 0.24 " | 0.99 W | 6 mm | 10 mm | |||||||
 Traco Power | 15 V | Isolated Module | 10.8 V | ITE (Commercial) | 95 °C | -40 °C | 33 mA | 80 % | 2 | 13.2 V | Through Hole | 7-SIP Module 5 Leads | SCP | 3000 V | 19.5 mm | 0.77 in | 0.39 " | 0.24 " | 0.99 W | 6 mm | 10 mm | -15 V | 33 mA | ||||
Traco Power | 15 V | Isolated Module | 4.5 V | ITE (Commercial) | 95 °C | -40 °C | 33 mA | 2 | 5.5 V | Through Hole | 7-SIP Module 5 Leads | SCP | 1.5 kV | 19.5 mm | 0.77 in | 0.39 " | 0.24 " | 0.99 W | 6 mm | 10 mm | -15 V | 33 mA | |||||
Traco Power | 15 V | Isolated Module | 21.6 V | ITE (Commercial) | 95 °C | -40 °C | 33 mA | 2 | 26.4 V | Through Hole | 7-SIP Module 5 Leads | SCP | 3000 V | 19.5 mm | 0.77 in | 0.39 " | 0.24 " | 0.99 W | 6 mm | 10 mm | -15 V | 33 mA | |||||
 Traco Power | 5 V | Isolated Module | 4.5 V | ITE (Commercial) | 95 °C | -40 °C | 79 % | 2 | 5.5 V | Through Hole | 7-SIP Module 5 Leads | SCP | 3000 V | 19.5 mm | 0.77 in | 0.39 " | 0.24 " | 6 mm | 10 mm | -5 V | 100 mA | 100 mA | |||||
Traco Power | 5 V | Isolated Module | 4.5 V | ITE (Commercial) | 95 °C | -40 °C | 79 % | 2 | 5.5 V | Through Hole | 7-SIP Module 5 Leads | SCP | 1.5 kV | 19.5 mm | 0.77 in | 0.39 " | 0.24 " | 6 mm | 10 mm | -5 V | 100 mA | 100 mA | |||||
Traco Power | 12 V | Isolated Module | 4.5 V | ITE (Commercial) | 95 °C | -40 °C | 41 mA | 2 | 5.5 V | Through Hole | 7-SIP Module 5 Leads | SCP | 1.5 kV | 19.5 mm | 0.77 in | 0.39 " | 0.24 " | 984 mW | 6 mm | 10 mm | -12 V | ||||||
Traco Power | 9 V | Isolated Module | 21.6 V | ITE (Commercial) | 95 °C | -40 °C | 110 mA | 80 % | 1 | 26.4 V | Through Hole | 4-SIP Module | SCP | 1.5 kV | 11.7 mm | 0.46 in | 10.2 mm | 0.4 " | 0.24 " | 6 mm | 0.99 W |
