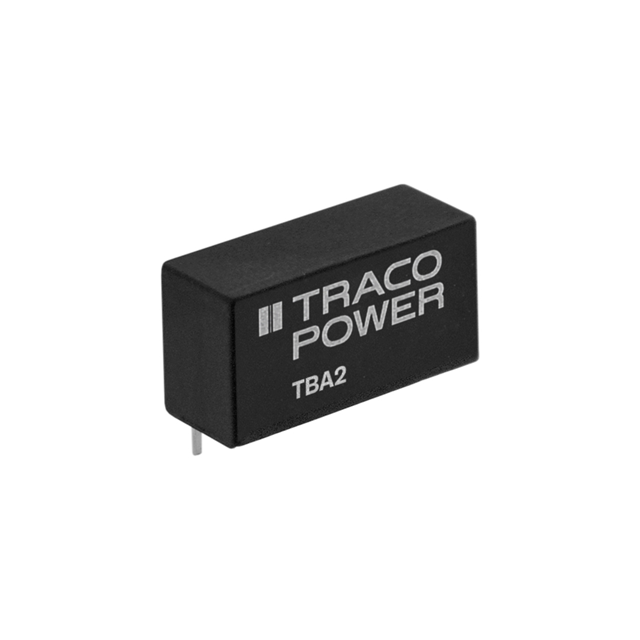

TBA 2 Series

Catalog

DC DC CONVERTER +/-12V 1.9W

Part	Mounting Type	Features	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Applications	Package / Case	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Voltage - Output 2	Type	Number of Outputs	Efficiency
Traco Power TBA 2-0522	Through Hole	SCP	5.5 V	80 mA	4.5 V	ITE (Commercial)	6-SIP Module 5 Leads	12 V	19.6 mm	0.4 "	10.2 mm	0.3 "	0.77 in	7.6 mm	1.9 W	90 °C	-40 °C	1.5 kV	-12 V	Isolated Module	2
Traco Power TBA 2-2422	Through Hole	SCP	26.4 V	80 mA	21.6 V	ITE (Commercial)	6-SIP Module 5 Leads	12 V	19.6 mm	0.4 "	10.2 mm	0.3 "	0.77 in	7.6 mm	1.9 W	90 °C	-40 °C	1.5 kV	-12 V	Isolated Module	2	84 %
Traco Power TBA 2-2411	Through Hole	SCP	26.4 V	400 mA	21.6 V	ITE (Commercial)	6-SIP Module 4 Leads	5 V	19.6 mm	0.4 "	10.2 mm	0.3 "	0.77 in	7.6 mm	2 W	90 °C	-40 °C	1.5 kV		Isolated Module	1	78 %
Traco Power TBA 2-1211	Through Hole	SCP	13.2 V	400 mA	10.8 V	ITE (Commercial)	6-SIP Module 4 Leads	5 V	19.6 mm	0.4 "	10.2 mm	0.3 "	0.77 in	7.6 mm	2 W	90 °C	-40 °C	1.5 kV		Isolated Module	1	79 %
Traco Power TBA 2-0512	Through Hole	SCP	5.5 V	165 mA	4.5 V	ITE (Commercial)	6-SIP Module 4 Leads	12 V	19.6 mm	0.4 "	10.2 mm	0.3 "	0.77 in	7.6 mm	2 W	90 °C	-40 °C	1.5 kV		Isolated Module	1
Traco Power TBA 2-2423	Through Hole	SCP	26.4 V	65 mA	21.6 V	ITE (Commercial)	6-SIP Module 5 Leads	15 V	19.6 mm	0.4 "	10.2 mm	0.3 "	0.77 in	7.6 mm	2 W	90 °C	-40 °C	1.5 kV	-15 V	Isolated Module	2	84 %
Traco Power TBA 2-1222	Through Hole	SCP	13.2 V	80 mA	10.8 V	ITE (Commercial)	6-SIP Module 5 Leads	12 V	19.6 mm	0.4 "	10.2 mm	0.3 "	0.77 in	7.6 mm	1.9 W	90 °C	-40 °C	1.5 kV	-12 V	Isolated Module	2	83 %
Traco Power TBA 2-1212	Through Hole	SCP	13.2 V	165 mA	10.8 V	ITE (Commercial)	6-SIP Module 4 Leads	12 V	19.6 mm	0.4 "	10.2 mm	0.3 "	0.77 in	7.6 mm	2 W	90 °C	-40 °C	1.5 kV		Isolated Module	1
