LME4972450-MHz, high-fidelity, high-performance, fully-differential audio op amp | Integrated Circuits (ICs) | 2 | Active | The LME49724 is an ultra-low distortion, low noise, high slew rate fully-differential operational amplifier optimized and fully specified for high performance, high fidelity applications. Combining advanced leading-edge process technology with state of the art circuit design, the LME49724 fully-differential audio operational amplifier delivers superior audio signal amplification for outstanding audio performance. The LME49724 combines extremely low voltage noise density (2.1nV/√Hz) with vanishingly low THD+N (0.00003%) to easily satisfy the most demanding audio applications. To ensure that the most challenging loads are driven without compromise, the LME49724 has a high slew rate of ±18V/μs and an output current capability of ±80mA. Further, dynamic range is maximized by an output stage that drives 600Ω loads to 52VP-Pwhile operating on a ±15V supply voltage.
The LME49724's outstanding CMRR (102dB), PSRR (125dB), and VOS(0.2mV) results in excellent operational amplifier DC performance.
The LME49724 has a wide supply range of ±2.5V to ±18V. Over this supply range the LME49724’s input circuitry maintains excellent common-mode and power supply rejection, as well as maintaining its low input bias current. The LME49724 is unity gain stable. This Fully-Differential Audio Operational Amplifier achieves outstanding AC performance while driving complex loads with capacitive values as high as 100pF.
The LME49724 is an ultra-low distortion, low noise, high slew rate fully-differential operational amplifier optimized and fully specified for high performance, high fidelity applications. Combining advanced leading-edge process technology with state of the art circuit design, the LME49724 fully-differential audio operational amplifier delivers superior audio signal amplification for outstanding audio performance. The LME49724 combines extremely low voltage noise density (2.1nV/√Hz) with vanishingly low THD+N (0.00003%) to easily satisfy the most demanding audio applications. To ensure that the most challenging loads are driven without compromise, the LME49724 has a high slew rate of ±18V/μs and an output current capability of ±80mA. Further, dynamic range is maximized by an output stage that drives 600Ω loads to 52VP-Pwhile operating on a ±15V supply voltage.
The LME49724's outstanding CMRR (102dB), PSRR (125dB), and VOS(0.2mV) results in excellent operational amplifier DC performance.
The LME49724 has a wide supply range of ±2.5V to ±18V. Over this supply range the LME49724’s input circuitry maintains excellent common-mode and power supply rejection, as well as maintaining its low input bias current. The LME49724 is unity gain stable. This Fully-Differential Audio Operational Amplifier achieves outstanding AC performance while driving complex loads with capacitive values as high as 100pF. |
| Evaluation Boards | 3 | Obsolete | |

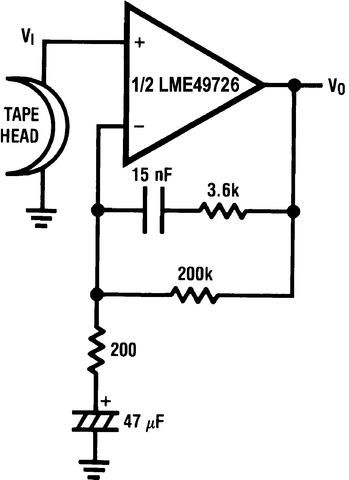

LME497262-channel, 6.25-MHz, RRO, low-distortion audio op amp with 350-mA output current | Instrumentation, Op Amps, Buffer Amps | 2 | Active | The LME49726 is a low distortion, low noise rail-to-rail output audio operational amplifier optimized and fully specified for high performance, high fidelity applications. The LME49726 delivers superior audio signal amplification for outstanding audio performance. The LME49726 has a very low THD+N to easily satisfy demanding audio applications. To ensure that the most challenging loads are driven without compromise, the LME49726 provides output current greater than 300mA at 5V. Further, dynamic range is maximized by an output that drives 2kΩ loads to within 4mV of either power supply voltage.
The LME49726 has a supply range of 2.5V to 5.5V. Over this supply range the LME49726’s input circuitry maintains excellent common-mode and power supply rejection, as well as maintaining its low input bias current. The LME49726 is unity gain stable.
The LME49726 is a low distortion, low noise rail-to-rail output audio operational amplifier optimized and fully specified for high performance, high fidelity applications. The LME49726 delivers superior audio signal amplification for outstanding audio performance. The LME49726 has a very low THD+N to easily satisfy demanding audio applications. To ensure that the most challenging loads are driven without compromise, the LME49726 provides output current greater than 300mA at 5V. Further, dynamic range is maximized by an output that drives 2kΩ loads to within 4mV of either power supply voltage.
The LME49726 has a supply range of 2.5V to 5.5V. Over this supply range the LME49726’s input circuitry maintains excellent common-mode and power supply rejection, as well as maintaining its low input bias current. The LME49726 is unity gain stable. |
| Instrumentation, Op Amps, Buffer Amps | 5 | Obsolete | |

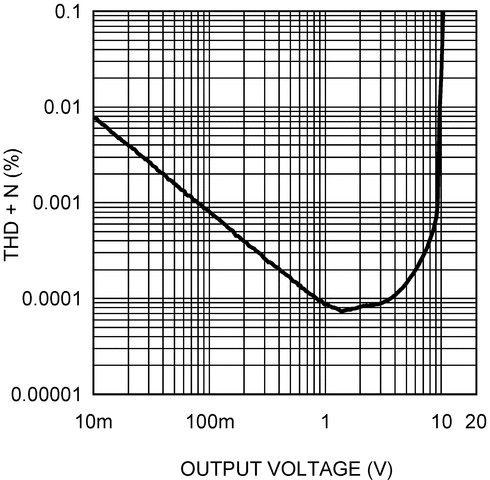

LME497434-channel, 30-MHz, high-fidelity, high-performance audio op amp | Integrated Circuits (ICs) | 1 | Obsolete | The LME49743 is a low distortion, low noise, high slew rate operational amplifier optimized and fully specified for high performance, high fidelity applications. The LME49743 audio operational amplifier delivers superior audio signal amplification for outstanding audio performance. The LME49743 combines low voltage noise density (3.5nV/√Hz) and THD+N (0.0001%) to easily satisfy demanding audio applications. To ensure that the most challenging loads are driven without compromise, the LME49743 has a slew rate of ±12V/μs and an output current capability of ±21mA.
The LME49743's outstanding CMRR(106dB), PSRR(98dB), and VOS(±0.15mV) give the amplifier excellent operational amplifier DC performance.
The LME49743 has a wide supply range of ±4.0V to ±17V. Over this supply range the LME49743’s input circuitry maintains excellent common-mode, power supply rejection, and low input bias current. The LME49743 is unity gain stable.
The LME49743 is available in 14–lead TSSOP.
The LME49743 is a low distortion, low noise, high slew rate operational amplifier optimized and fully specified for high performance, high fidelity applications. The LME49743 audio operational amplifier delivers superior audio signal amplification for outstanding audio performance. The LME49743 combines low voltage noise density (3.5nV/√Hz) and THD+N (0.0001%) to easily satisfy demanding audio applications. To ensure that the most challenging loads are driven without compromise, the LME49743 has a slew rate of ±12V/μs and an output current capability of ±21mA.
The LME49743's outstanding CMRR(106dB), PSRR(98dB), and VOS(±0.15mV) give the amplifier excellent operational amplifier DC performance.
The LME49743 has a wide supply range of ±4.0V to ±17V. Over this supply range the LME49743’s input circuitry maintains excellent common-mode, power supply rejection, and low input bias current. The LME49743 is unity gain stable.
The LME49743 is available in 14–lead TSSOP. |
| Audio Amplifiers | 1 | Obsolete | |
| Amplifiers | 1 | Obsolete | |
| Evaluation Boards | 1 | Unknown | |
| Development Boards, Kits, Programmers | 3 | Active | |
| Integrated Circuits (ICs) | 3 | Obsolete | |
