The DLPA200 is a DLPdigital micromirror device (DMD) driver that generates the micromirror clocking pulses for certain DMDs in the DLP portfolio. A complete DLP chipset provides developers easier access to the DMD, as well as high-speed micromirror control. The DLPA200 is a DLPdigital micromirror device (DMD) driver that generates the micromirror clocking pulses for certain DMDs in the DLP portfolio. A complete DLP chipset provides developers easier access to the DMD, as well as high-speed micromirror control.

DLPA2005 is a dedicated PMIC/RGB LED/Lamp driver for the DLP2010, DLP2010NIR and DLP3010 Digital Micromirror Devices (DMD) when used with a DLPC3430, DLPC3433, DLPC3435, DLCP3438, or DLPC150 digital controller. For reliable operation of these chipsets it is mandatory to use a DLPA2000 or DLPA2005. DLPA2005 is a dedicated PMIC/RGB LED/Lamp driver for the DLP2010, DLP2010NIR and DLP3010 Digital Micromirror Devices (DMD) when used with a DLPC3430, DLPC3433, DLPC3435, DLCP3438, or DLPC150 digital controller. For reliable operation of these chipsets it is mandatory to use a DLPA2000 or DLPA2005.

DLP® driver for DLP780NE (0.78 1080p), DLP780TE (0.78 4K UHD), DLP800RE (0.80 WUXGA) DMD

The DLPA4000 device is a highly-integrated power management driver. It is optimized for DLP®LED projector systems. The DLPA4000 supports projectors up to 32 A per LED with high-side pump functionality. An integrated, high-efficiency buck controller energizes the device. The drivers control switches support the sequencing of R, G, and B LEDs. The device contains five buck converters, two of which are dedicated for the DLPC4422 controller low-voltage supply. Another dedicated regulated supply energizes the DLPA200 DMD micromirror driver and the three timing critical DC supplies for the DMD: VBIAS, VRST, and VOFS. The DLPA4000 device contains several auxiliary blocks. These blocks allow flexibility in LED projector system design. An 8-bit programmable buck converter can drive an RGB projector fan or make an auxiliary supply line. Two LDOs can generate a lower-current supply, up to 200 mA. These LDOs are specified to operate at 2.5 V and 3.3 V. The serial protocol interface (SPI) addresses all blocks of the DLPA4000 device. These addressable features include: the generation of the system reset, power sequencing, input signals for sequentially selecting the active LED, IC self-protections, and an analog MUX for routing analog information to an external ADC. The DLPA4000 device is a highly-integrated power management driver. It is optimized for DLP®LED projector systems. The DLPA4000 supports projectors up to 32 A per LED with high-side pump functionality. An integrated, high-efficiency buck controller energizes the device. The drivers control switches support the sequencing of R, G, and B LEDs. The device contains five buck converters, two of which are dedicated for the DLPC4422 controller low-voltage supply. Another dedicated regulated supply energizes the DLPA200 DMD micromirror driver and the three timing critical DC supplies for the DMD: VBIAS, VRST, and VOFS. The DLPA4000 device contains several auxiliary blocks. These blocks allow flexibility in LED projector system design. An 8-bit programmable buck converter can drive an RGB projector fan or make an auxiliary supply line. Two LDOs can generate a lower-current supply, up to 200 mA. These LDOs are specified to operate at 2.5 V and 3.3 V. The serial protocol interface (SPI) addresses all blocks of the DLPA4000 device. These addressable features include: the generation of the system reset, power sequencing, input signals for sequentially selecting the active LED, IC self-protections, and an analog MUX for routing analog information to an external ADC.

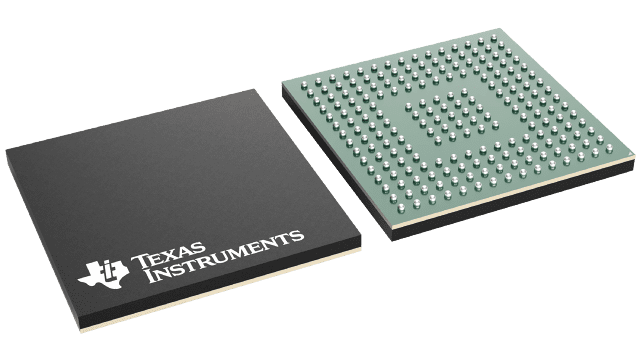

The DLPC1438 3D print controller supports reliable operation of theDLP300SandDLP301Sdigital micromirror devices (DMDs) for DLP 3D Printer applications. The DLPC1438 controller provides a convenient interface between user electronics and the DMD to enable fast, high resolution, reliable DLP 3D printers. Get started withTI DLP® light-controltechnology page to learn how to get started with the DLP300S. The DLP advanced light control resources onti.comaccelerate time to market, which includereference designs,optical modules manufactures, andDLP design network partners. The DLPC1438 3D print controller supports reliable operation of theDLP300SandDLP301Sdigital micromirror devices (DMDs) for DLP 3D Printer applications. The DLPC1438 controller provides a convenient interface between user electronics and the DMD to enable fast, high resolution, reliable DLP 3D printers. Get started withTI DLP® light-controltechnology page to learn how to get started with the DLP300S. The DLP advanced light control resources onti.comaccelerate time to market, which includereference designs,optical modules manufactures, andDLP design network partners.

The DLPC23x-Q1 digital micromirror display (DMD) controller for automotive applications is used in chipsets for interior applications such as HUD and exterior applications such as high-resolution headlights. TheDLP553x-Q1chipset includes a 0.55" DMD and theDLP4621-Q1chipset includes a 0.46" DMD. Both chipsets also include the TPS99000-Q1 System Management and Illumination Controller. The DLPC23x-Q1 integrates an embedded processor with error code correction (SECDED ECC), enabling host control and real-time feedback, on-chip diagnostics, and system monitoring functions. On-chip SRAM is included to remove the need for external DRAM. Combined with the TPS99000-Q1, the DLPC23x-Q1 supports high dynamic range dimming of over 5000:1 for HUD applications. SubLVDS 600MHz DMD interface allows high DMD refresh rates to generate seamless and brilliant digital images while reducing radiated emissions. To aid in the design and manufacture of automotive-qualified projectors based on DLP technology, several establishedoptical module manufacturers and design housescan be leveraged to support your design. The DLPC23x-Q1 digital micromirror display (DMD) controller for automotive applications is used in chipsets for interior applications such as HUD and exterior applications such as high-resolution headlights. TheDLP553x-Q1chipset includes a 0.55" DMD and theDLP4621-Q1chipset includes a 0.46" DMD. Both chipsets also include the TPS99000-Q1 System Management and Illumination Controller. The DLPC23x-Q1 integrates an embedded processor with error code correction (SECDED ECC), enabling host control and real-time feedback, on-chip diagnostics, and system monitoring functions. On-chip SRAM is included to remove the need for external DRAM. Combined with the TPS99000-Q1, the DLPC23x-Q1 supports high dynamic range dimming of over 5000:1 for HUD applications. SubLVDS 600MHz DMD interface allows high DMD refresh rates to generate seamless and brilliant digital images while reducing radiated emissions. To aid in the design and manufacture of automotive-qualified projectors based on DLP technology, several establishedoptical module manufacturers and design housescan be leveraged to support your design.

The DLPC23xS-Q1 digital micromirror device (DMD) Controller for automotive applications is used in chipsets for interior and exterior display applications with a functional safety requirement (such as augmented reality HUDs and windshield clusters). TheDLP5530S-Q1chipset includes a 0.55" DMD and theDLP4620S-Q1chipset includes a 0.46" DMD. Both chipsets also include the TPS99000S-Q1 System Management and Illumination controller. The DLPC23xS-Q1 integrates an embedded processor with error code correction (SECDED ECC), enabling host control and real-time feedback, on-chip diagnostics, and system monitoring functions. On-chip SRAM is included to remove the need for external DRAM. Combined with the TPS99000S-Q1, the DLPC23xS-Q1 supports high dynamic range dimming of over 5000:1 for HUD applications. SubLVDS 600MHz DMD interface allows high DMD refresh rates to generate seamless and brilliant digital images, while simultaneously reducing radiated emissions. To aid in the design and manufacture of automotive qualified projectors based on DLP technology, there are a number of establishedoptical module manufacturers and design housesthat can be leveraged to support your design. The DLPC23xS-Q1 digital micromirror device (DMD) Controller for automotive applications is used in chipsets for interior and exterior display applications with a functional safety requirement (such as augmented reality HUDs and windshield clusters). TheDLP5530S-Q1chipset includes a 0.55" DMD and theDLP4620S-Q1chipset includes a 0.46" DMD. Both chipsets also include the TPS99000S-Q1 System Management and Illumination controller. The DLPC23xS-Q1 integrates an embedded processor with error code correction (SECDED ECC), enabling host control and real-time feedback, on-chip diagnostics, and system monitoring functions. On-chip SRAM is included to remove the need for external DRAM. Combined with the TPS99000S-Q1, the DLPC23xS-Q1 supports high dynamic range dimming of over 5000:1 for HUD applications. SubLVDS 600MHz DMD interface allows high DMD refresh rates to generate seamless and brilliant digital images, while simultaneously reducing radiated emissions. To aid in the design and manufacture of automotive qualified projectors based on DLP technology, there are a number of establishedoptical module manufacturers and design housesthat can be leveraged to support your design.
