TPS228600.73-Ω, 5-V, ultra-low leakage load switch | Power Management (PMIC) | 1 | Active | The TPS22860 is a small, ultra-low leakage current, single channel load switch. The device requires a VBIASvoltage and can operate over an input voltage range of 0 V to VBIAS. It can support a maximum continuous current of 200 mA. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals. The TPS22860 is available in two small, space-saving 6-pin SOT-23 and SC70 packages. The device is characterized for operation over the free-air temperature range of –40°C to 85°C.
The TPS22860 is a small, ultra-low leakage current, single channel load switch. The device requires a VBIASvoltage and can operate over an input voltage range of 0 V to VBIAS. It can support a maximum continuous current of 200 mA. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals. The TPS22860 is available in two small, space-saving 6-pin SOT-23 and SC70 packages. The device is characterized for operation over the free-air temperature range of –40°C to 85°C. |
| Evaluation Boards | 7 | Obsolete | |
| Integrated Circuits (ICs) | 2 | Active | |
| Evaluation and Demonstration Boards and Kits | 4 | Active | |
| Power Distribution Switches, Load Drivers | 1 | Obsolete | |
| Power Distribution Switches, Load Drivers | 2 | Active | |

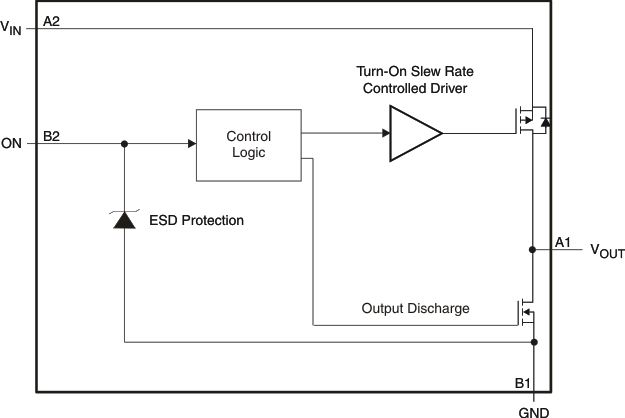

TPS229063.6-V, 0.5-A, 90-mΩ load switch with output discharge | Power Distribution Switches, Load Drivers | 1 | NRND | TPS22906 device is an ultra-small, low ON-state resistance (rON) load switch with controlled turn on. The device contains a P-channel MOSFET that operates over an input voltage range of 1.0 V to 3.6 V. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals. A 120-Ω on-chip load resistor is added for output quick discharge when the switch is turned off. TPS22906 is available in a space-saving 4-terminal WCSP with 0.5-mm pitch (YZV). The device is characterized for operation over the free-air temperature range of –40°C to 85°C.
TPS22906 device is an ultra-small, low ON-state resistance (rON) load switch with controlled turn on. The device contains a P-channel MOSFET that operates over an input voltage range of 1.0 V to 3.6 V. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals. A 120-Ω on-chip load resistor is added for output quick discharge when the switch is turned off. TPS22906 is available in a space-saving 4-terminal WCSP with 0.5-mm pitch (YZV). The device is characterized for operation over the free-air temperature range of –40°C to 85°C. |

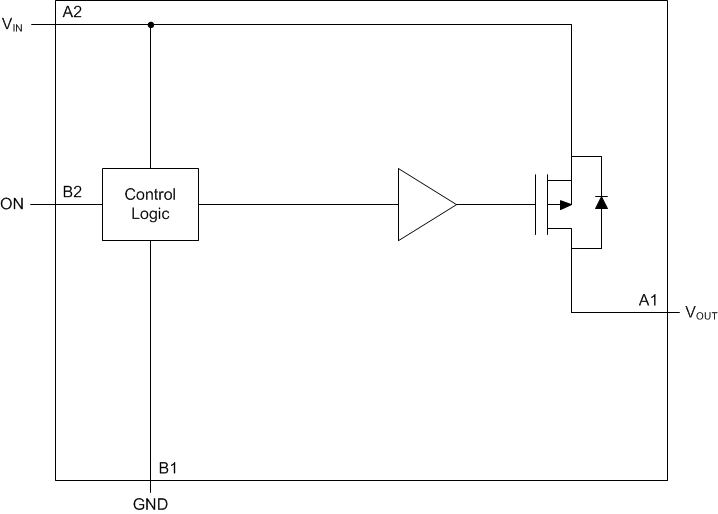

| Power Distribution Switches, Load Drivers | 2 | NRND | The TPS22907 is a small, low RONload switch with controlled turnon. The device contains a P-channel MOSFET that operates over an input voltage range of 1.1 V to 3.6 V. The switch is controlled by an on and off input (ON), which can interface directly with low-voltage control signals.
The TPS22907 is available in a space-saving 4-terminal WCSP with 0.5-mm pitch (YZT). The device is characterized for operation over the free-air temperature range of –40°C to 85°C.
The TPS22907 is a small, low RONload switch with controlled turnon. The device contains a P-channel MOSFET that operates over an input voltage range of 1.1 V to 3.6 V. The switch is controlled by an on and off input (ON), which can interface directly with low-voltage control signals.
The TPS22907 is available in a space-saving 4-terminal WCSP with 0.5-mm pitch (YZT). The device is characterized for operation over the free-air temperature range of –40°C to 85°C. |
| Evaluation Boards | 3 | Active | |
| Power Management (PMIC) | 3 | Active | |
