TPS22901 Series

3.6-V, 0.5-A, 78-mΩ, 22-nA leakage load switch

Catalog

3.6-V, 0.5-A, 78-mΩ, 22-nA leakage load switch

Part	Output Configuration	Voltage - Supply (Vcc/Vdd)	Interface	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Features	Mounting Type	Output Type	Ratio - Input:Output [custom]	Current - Output (Max) [Max]	Number of Outputs	Input Type	Voltage - Load [Max]	Voltage - Load [Min]	Switch Type	Rds On (Typ)	Type	Utilized IC / Part	Function	Supplied Contents
Texas Instruments TPS22901YFPR	High Side		On/Off	4-XFBGA DSBGA	85 °C	-40 °C	4-DSBGA	Slew Rate Controlled	Surface Mount	P-Channel	1:1	500 mA	1	Non-Inverting	3.6 V	1 V	General Purpose	78 mOhm

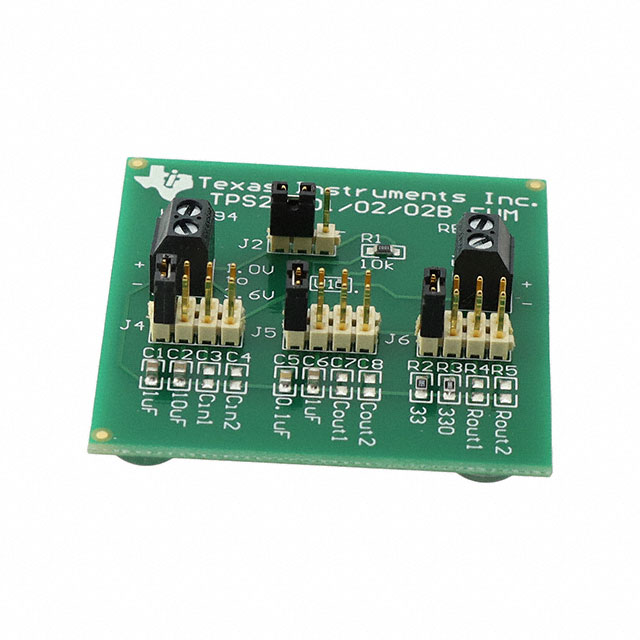

Texas Instruments TPS22901EVM																			Power Management	TPS22901	Power Distribution Switch (Load Switch)	Board(s)

Catalog

3.6-V, 0.5-A, 78-mΩ, 22-nA leakage load switch

Key Features

• Integrated P-Channel Load SwitchLow Input Voltage: 1 V to 3.6 VON-Resistance (Typical Values)rON= 78 mΩ at VIN= 3.6 VrON= 93 mΩ at VIN= 2.5 VrON= 109 mΩ at VIN= 1.8 VrON= 146 mΩ at VIN= 1.2 V500 mA Maximum Continuous Switch CurrentQuiescent Current: 82 nA at 1.8 VShutdown Current: 44 nA at 1.8 VLow Control Input Thresholds Enable Use of 1.2-V, 1.8-V, 2.5-V, and 3.3-V LogicControlled Slew Rate to Avoid Inrush Currentstr= 40 µs at VIN= 1.8 V (TPS22901/2)tr= 220 µs at VIN= 1.8 V (TPS22902B)Quick Output Discharge (TPS22902/2B)ESD Performance Tested Per JESD 222000-V Human Body Model (A114-B, Class II)1000-V Charged-Device Model (C101)Four-Pin Wafer-Chip-Scale DSBGA Package0.8-mm × 0.8-mm, 0.4-mm Pitch, 0.5-mm Height (YFP)Integrated P-Channel Load SwitchLow Input Voltage: 1 V to 3.6 VON-Resistance (Typical Values)rON= 78 mΩ at VIN= 3.6 VrON= 93 mΩ at VIN= 2.5 VrON= 109 mΩ at VIN= 1.8 VrON= 146 mΩ at VIN= 1.2 V500 mA Maximum Continuous Switch CurrentQuiescent Current: 82 nA at 1.8 VShutdown Current: 44 nA at 1.8 VLow Control Input Thresholds Enable Use of 1.2-V, 1.8-V, 2.5-V, and 3.3-V LogicControlled Slew Rate to Avoid Inrush Currentstr= 40 µs at VIN= 1.8 V (TPS22901/2)tr= 220 µs at VIN= 1.8 V (TPS22902B)Quick Output Discharge (TPS22902/2B)ESD Performance Tested Per JESD 222000-V Human Body Model (A114-B, Class II)1000-V Charged-Device Model (C101)Four-Pin Wafer-Chip-Scale DSBGA Package0.8-mm × 0.8-mm, 0.4-mm Pitch, 0.5-mm Height (YFP)

Description

The TPS22901, TPS22902, and TPS22902B are small, low ON-resistance (rON) load switches with a controlled turnon. These devices contain a P-channel MOSFET that operates over an input voltage range of 1.0 V to 3.6 V. The switch is controlled by an on/off input (ON), which can interface directly with low-voltage control signals. In the TPS22902 and TPS22902B, an 88-Ω on-chip load resistor is added for output quick discharge when the switch is turned off. The TPS22901, TPS22902, and TPS22902B are available in a space-saving 4-pin DSBGA (YFP) with 0.4-mm pitch. These devices are characterized for operation over the free-air temperature range of –40°C to 85°C. The TPS22901, TPS22902, and TPS22902B are small, low ON-resistance (rON) load switches with a controlled turnon. These devices contain a P-channel MOSFET that operates over an input voltage range of 1.0 V to 3.6 V. The switch is controlled by an on/off input (ON), which can interface directly with low-voltage control signals. In the TPS22902 and TPS22902B, an 88-Ω on-chip load resistor is added for output quick discharge when the switch is turned off. The TPS22901, TPS22902, and TPS22902B are available in a space-saving 4-pin DSBGA (YFP) with 0.4-mm pitch. These devices are characterized for operation over the free-air temperature range of –40°C to 85°C.
