L98008 channels low side driver | Power Distribution Switches, Load Drivers | 1 | Active | The L9800 is an 8-channel LS driver designed for automotive applications (LEDs and relays) and compatible with resistive, inductive and capacitive loads. The device offers advanced diagnostic and protection functionalities such as open load, overcurrent and overtemperature detections, short to GND. The eight output channels can be driven by SPI or by dedicated parallel inputs. Limp-home functionality is present. Daisy chain available (no constraint on SPI number of bits of devices in chain). The device is able to guarantee cranking scenario down to VBATT = 3 V and ensures very low-quiescent current under RESET.
The device is an 8-channel low-side power switch in a TFQFN24 4x4x0.9 package. It is specially designed to control relays and LEDs in automotive and industrial applications.
A serial peripheral interface (SPI) is used for control and diagnosis of the loads as well as of the device. For direct control and PWM there are two input pins (IN0 and IN1) available, connected to two outputs by default (OUT2 and OUT3). Additional or different outputs can be controlled by the same input pins if programmed by SPI. |
L9822EOctal Serial Solenoid Driver | Power Distribution Switches, Load Drivers | 2 | Active | The L9822E is an octal low-side solenoid driver realized in Multipower BCD technology particularly suited for driving lamps, relays and solenoids in automotive environment. The DMOS outputs L9822E has a very low power consumption.
Data is transmitted serially to the device using the Serial Peripheral Interface (SPI) protocol.
Status monitor function is available on all output lines. |

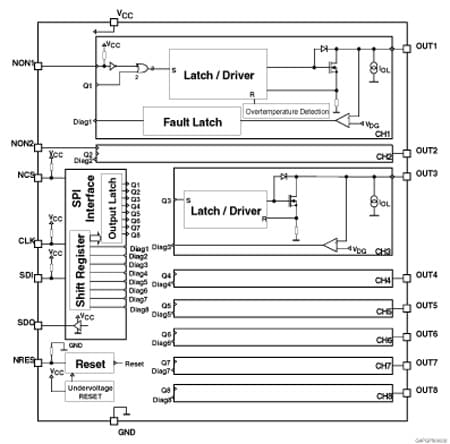

L9826Octal Low-Side Driver for Resistive and Inductive Loads With Serial/Parallel lnput Control Output Protection and Diagnostic | Power Management (PMIC) | 1 | Active | The L9826 is a protected octal low-side driver IC designed for the automotive environment.
The 8 -bit serial peripheral interface (SPI) is able to control the device's eight channels and to provide its load's diagnosis. In addition output 1 and 2 can also be controlled through dedicated input pins NON1 and NON2.
Overcurrent and short-circuit protections are present as well as the output voltage clamping which is able to protect the L9826 during operation with inductive loads. |
| Power Management (PMIC) | 1 | Active | |
| Gate Drivers | 1 | Active | |
L9911Multifunction Smart Regulator with Lamp/Relay Diagnostic Driver | Special Purpose Regulators | 1 | Active | The L9911 is a monolithic multifunction alternator voltage regulator intended for use in automotive application.
It includes the control section, the field power stage, fault diagnostic circuit which drives a warning lamp, and the protection against short circuits. |
L9915C-terminal alternator voltage regulator (CTAVR) | Integrated Circuits (ICs) | 1 | Active | The device is a monolithic alternator voltage regulator intended for use in automotive application.
It includes the control section, the field power stage, fault diagnostic circuit which drives a warning lamp, and the protection against short circuits.
This device regulates in close loop the output of an automotive generator by controlling the field winding current by means of a pulse-width modulation (PWM) high side driver at fixed frequency.
The set-point voltage reference selected by the Engine Control Unit via C-terminal protocol is temperature flat. An internal voltage reference thermally compensated is present in the device and used when the protocol coming from ECU is absent or the wire is broken.
A self-bias circuitry is present on L pin in order to turn-on the warning lamp also when the device is not supplied (battery connection broken). |
