| Development Boards, Kits, Programmers | 1 | Active | |
| Power Management (PMIC) | 1 | Active | The SLG59H1313C high-voltage load switch features a low 23mΩ RDSONinternal nFET and protects low‑voltage 2.5Vdc to 5.5Vdc operating systems against voltage faults up to 29Vdc. An internal clamp circuit protects the downstream components from surge voltage up to 100V. The SLG59H1313C features a fast 50ns (typ.) overvoltage response time that turns off the internal nFET if the input voltage exceeds the OVP threshold. The OVP threshold is adjustable with optional external resistors to any voltage between 4V and 20V. Over‑temperature protection powers down the device at 145 °C (typ.). SLG59H1313C also features an overcurrent protection that turns off the switch if the current exceeds 7A (typ.), this gives additional protection from overheating the device. SLG59H1313C incorporates an open-drain output PG pin. When VIN_min< VIN< VOVLOand the switch is on, PG will be driven low indicating a good power input, otherwise, it is high impedance. |

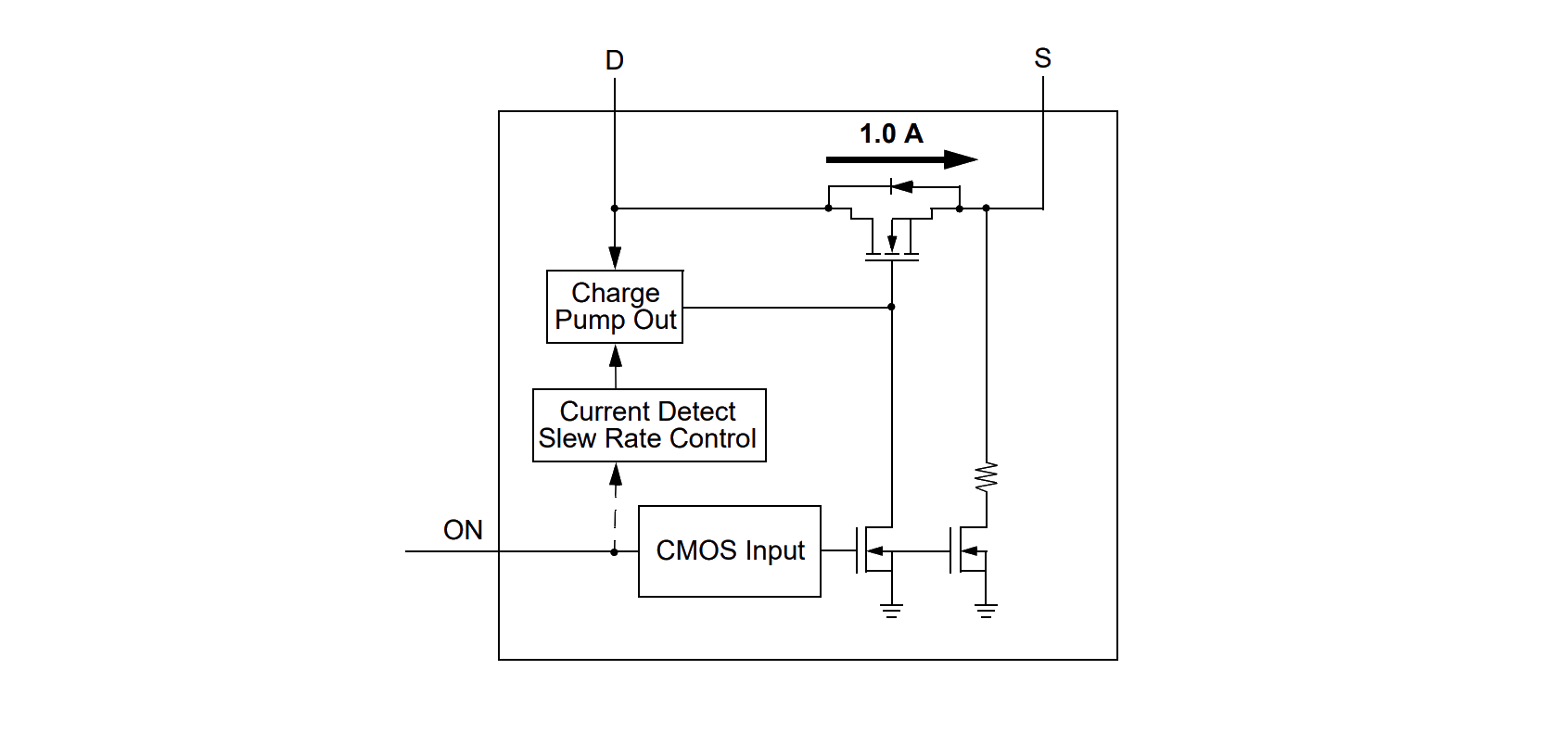

| Power Distribution Switches, Load Drivers | 1 | Active | The SLG59M1440V single N-channel load switch is designed for load switching applications. The part comes with one 40mΩ 1.0A rated MOSFET controlled by a single ON control pin. The MOSFET’s ramp rate is adjustable depending on the input current level of the ON pin. The product is packaged in an ultra-small 1.0mm x 1.0mm package. |

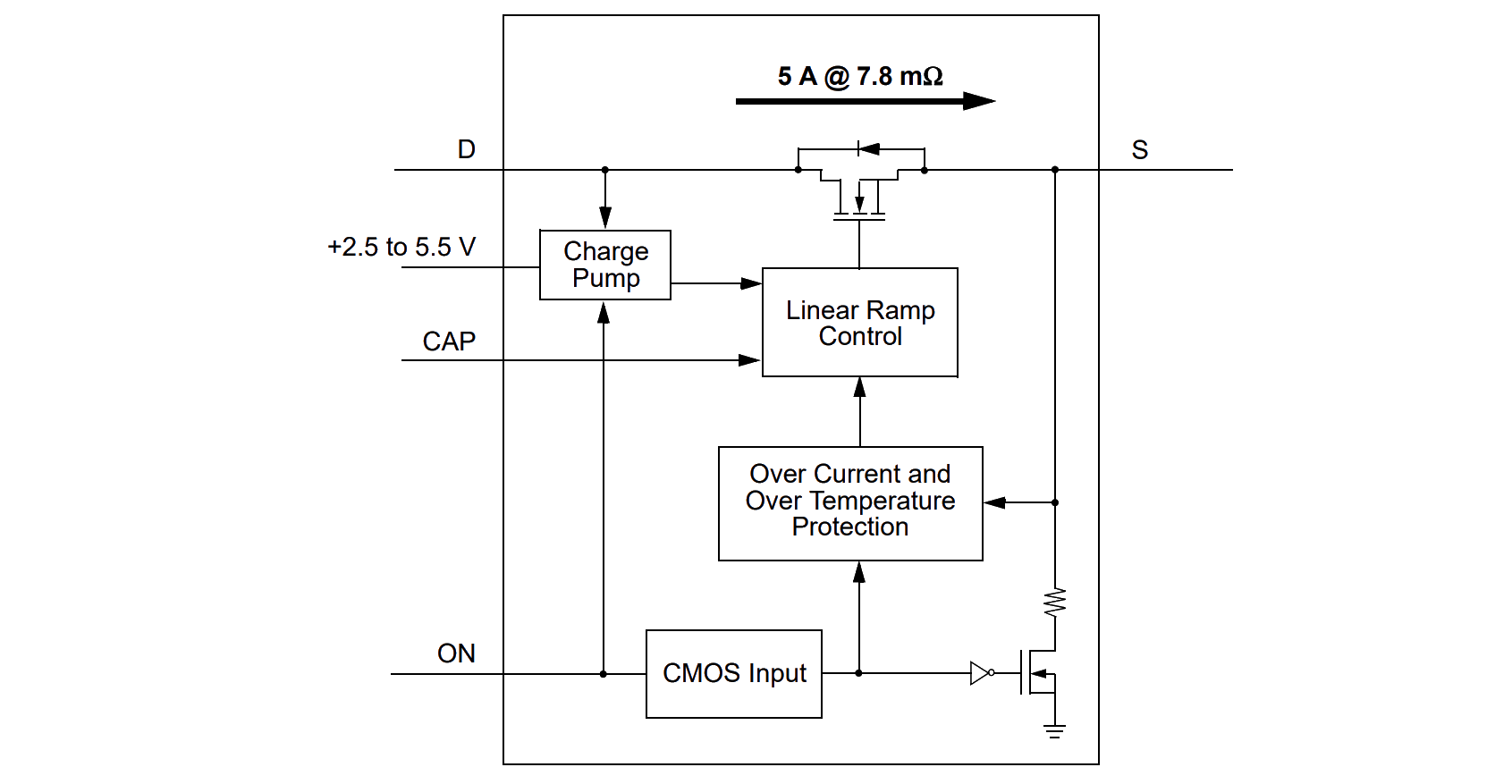

| Power Distribution Switches, Load Drivers | 1 | Active | The SLG59M1456V is a 7.8mΩ 5A single-channel load switch that can switch 1V to 5.5V power rails. The product is packaged in an ultra-small 1.5mm x 2.0mm package. |
| Power Management (PMIC) | 1 | Active | The SLG59M1460V is a 30mΩ 2.0A single-channel load switch that can switch 0.85V to 3.3V power rails. The product is packaged in an ultra‑small 1.0mm x 1.6mm package. |
| Power Management (PMIC) | 1 | Active | The SLG59M1527V dual N-channel load switch is designed for load switching applications. The device comes with two 4.5A-rated MOSFETs switched on by two ON control pins. The turn-on time for each MOSFET is independently adjusted by an external capacitor. |
| Power Distribution Switches, Load Drivers | 1 | Active | |

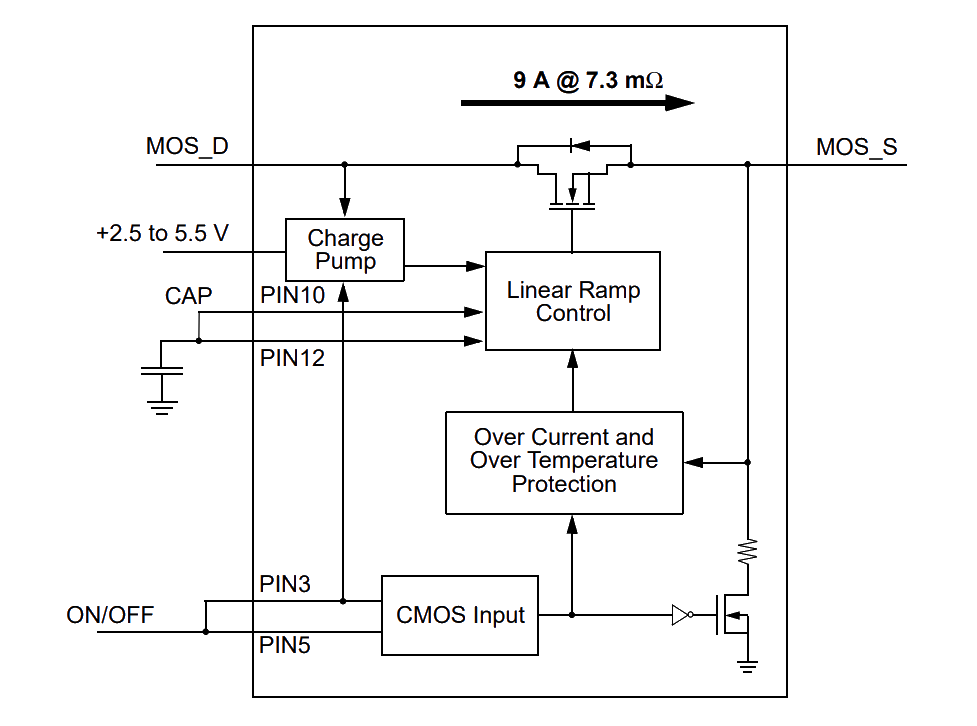

| Power Distribution Switches, Load Drivers | 1 | Active | The SLG59M1568V single N-channel load switch is designed for load switching applications. The device comes with one 9A-rated MOSFET switched on by an ON control pin. Turn-on time for the MOSFET is independently adjusted by an external capacitor. |
SLG59M1714VGreenFET Single N-Channel Reverse Blocking Load Switch | Evaluation Boards | 1 | Active | Operating from a 2.5V to 5.5V power supply, the SLG59M1714V is a 15mΩ, 4A single-channel load switch withback-to-backreverse‑current blocking when the power switch is disabled. With a fixed VOUTslew rate of 2.8V/ms, inrush current is internally limited. Incorporating two-stage current protection as well as thermal protection and fault signaling, the SLG59M1714V is designed for all 0.8V to 5.5V power rail applications. Fully specified over the -40 °C to 85 °C temperature range, the SLG59M1714V is packaged in a space-efficient, low thermal resistance 1.6mm x 2.5mm STQFN package. |
| Power Management (PMIC) | 19 | Active | |
