SLG5NT Series

Manufacturer: Renesas Electronics Corporation

Catalog

AN ADJUSTABLE TURN-ON TIME 5 M?

Part	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Features	Switch Type	Voltage - Load [Max]	Voltage - Load [Min]	Voltage - Supply (Vcc/Vdd)	Ratio - Input:Output	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Input Type	Output Configuration	Output Type	Rds On (Typ)	Mounting Type	Number of Outputs	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Fault Protection	Interface

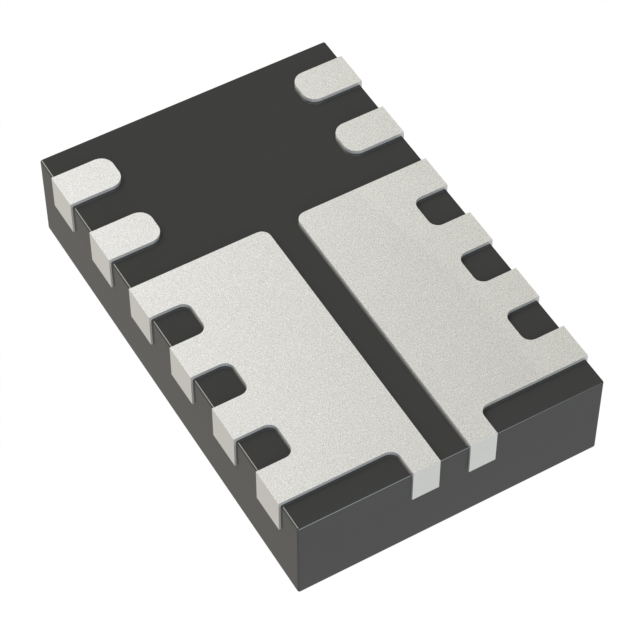

Renesas Electronics Corporation SLG5NT1757V	1.6	2.5	16-FC-STQFN	Slew Rate Controlled	General Purpose	5.5 V	3 V	Not Required	1:1	4 A	85 C	-40 ¯C	16-PowerUFQFN	CMOS	High Side	N-Channel	6.8 mOhm	Surface Mount	5

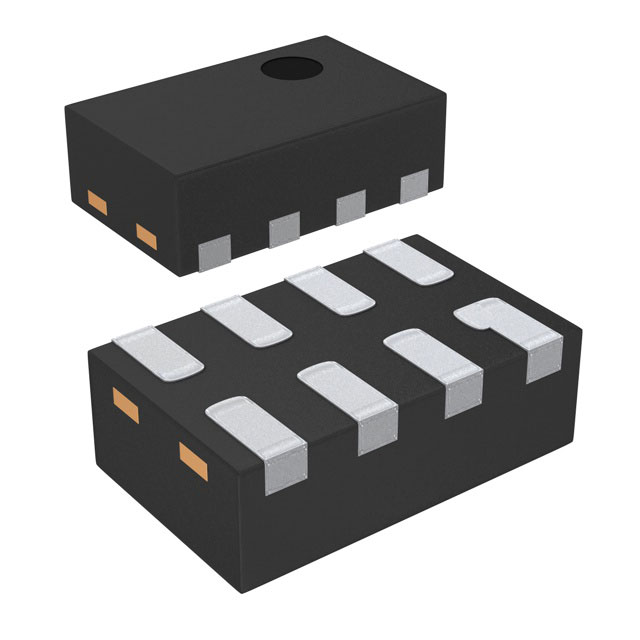

Renesas Electronics Corporation SLG5NT1533V			8-STDFN (1x1.6)		General Purpose				1:1	2.5 A	85 C	-40 ¯C	8-UFDFN	CMOS	High Side	N-Channel	20 mOhm	Surface Mount	1	2.5 V	5.5 V
Renesas Electronics Corporation SLG5NT1547V			4-STDFN (1x1)		General Purpose				1:1	1 A	70 °C	-20 °C	4-UFDFN	CMOS	High Side	N-Channel	80 mOhm	Surface Mount	1	2.5 V	5.5 V
Renesas Electronics Corporation SLG5NT1581V			14-STDFN (1x3)		General Purpose				1:1	9 A	85 C	-40 ¯C	14-PowerUFDFN	CMOS	High Side	N-Channel	7.3 mOhm	Surface Mount	1	2.5 V	5.5 V	Over Current Over Temperature	On/Off
Renesas Electronics Corporation SLG5NT1719V

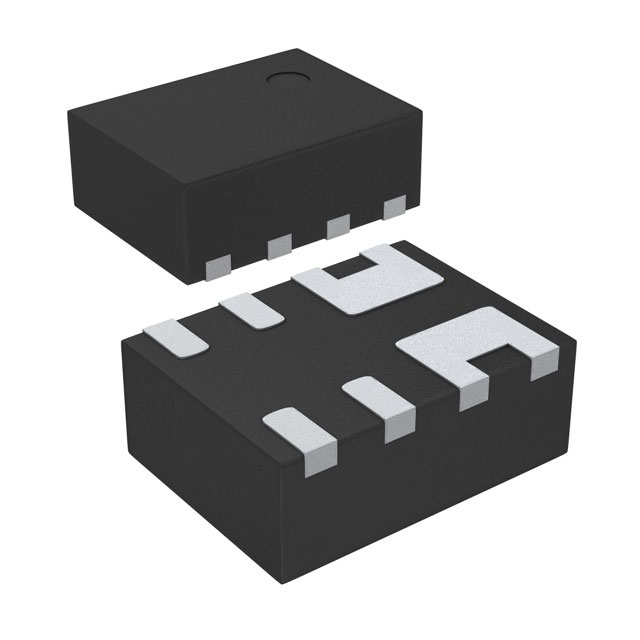

Renesas Electronics Corporation SLG5NT1432V	1.5	2	8-FC-TDFN		General Purpose				1:1	4 A	70 °C	-20 °C	8-PowerWFDFN	CMOS	High Side	N-Channel	7.8 mOhm	Surface Mount	1	1.5 V	5.5 V
Renesas Electronics Corporation SLG5NT1758V
Renesas Electronics Corporation SLG5NT1477V			9-FC-TDFN (1.5x2)		General Purpose				1:1	6 A	85 C	-40 ¯C	9-PowerWFDFN	CMOS	High Side	N-Channel	7.4 mOhm	Surface Mount	1	3 V	5.25 V
Renesas Electronics Corporation SLG5NT1464V			4-STDFN (1x1)		General Purpose				1:1	1 A	70 °C	-20 °C	4-UFDFN	CMOS	High Side	N-Channel	40 mOhm	Surface Mount	1	2.5 V	5.5 V		On/Off
Renesas Electronics Corporation SLG5NT1462V			8-STDFN (1x1.6)	Slew Rate Controlled	General Purpose				1:1	1 A	85 °C	-40 C	8-UFDFN	CMOS	High Side or Low Side	N-Channel	40 mOhm	Surface Mount	2	2.5 V	5.5 V
