SLG59M1639V Series

GreenFET Single P-Channel Reverse Blocking Load Switch

Manufacturer: Renesas Electronics Corporation

Catalog

GreenFET Single P-Channel Reverse Blocking Load Switch

Part	Current - Output (Max) [Max]	Output Configuration	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Output Type	Ratio - Input:Output [custom]	Switch Type	Supplier Device Package	Package / Case	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Rds On (Typ)	Input Type	Interface	Fault Protection	Features	Voltage - Load [Max]	Voltage - Load [Min]	Supplier Device Package [x]	Supplier Device Package [y]	Voltage - Load
Renesas Electronics Corporation SLG59M1558V	1 A	High Side	5.5 V	1.5 V	P-Channel	1:1	General Purpose	4-STDFN (1x1)	4-UFDFN	1	85 °C	-40 °C	Surface Mount	28.5 mOhm

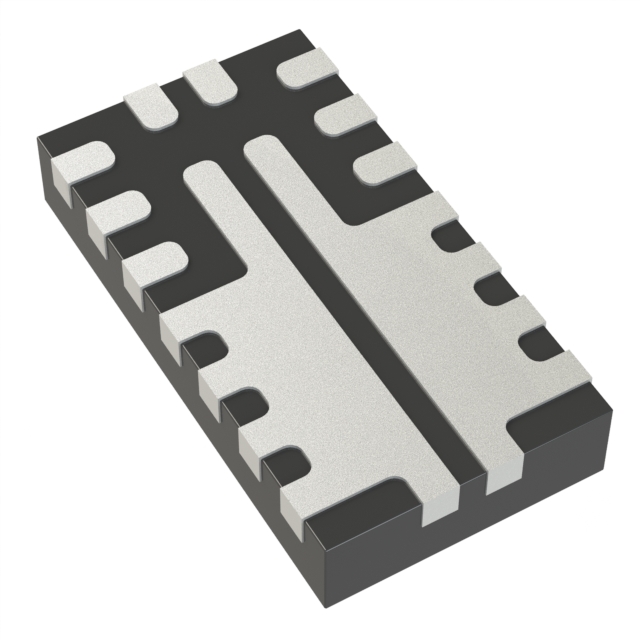

Renesas Electronics Corporation SLG59H1005V	3 A	High Side	22 V	4.5 V	N-Channel	1:1	General Purpose	18-STQFN (1.6x3)	18-PowerUFQFN	1	85 °C	-40 °C	Surface Mount	50 mOhm	CMOS
Renesas Electronics Corporation SLG59H1127V	4 A	High Side	13.2 V	4.5 V	N-Channel	1:1	General Purpose	18-STQFN (1.6x3)	18-PowerUFQFN	1	85 °C	-40 °C	Surface Mount	15 mOhm	CMOS
Renesas Electronics Corporation SLG59M309V	4 A	High Side	5.5 V	2.5 V	N-Channel	1:1	General Purpose	8-FC-TDFN (1.5x2)	8-PowerWFDFN	1	85 °C	-40 °C	Surface Mount	7.8 mOhm	CMOS
Renesas Electronics Corporation SLG59M1466V	2 A	High Side	5.5 V	2.5 V	N-Channel	1:1	General Purpose	4-STDFN (1x1)	4-UFDFN	1	70 °C	-20 °C	Surface Mount	40 mOhm	CMOS
Renesas Electronics Corporation SLG59M1641V	2 A	High Side			P-Channel	1:1	General Purpose	8-STDFN (1x1.6)	8-UFDFN	2	85 °C	-40 °C	Surface Mount	45 mOhm	CMOS	On/Off	Reverse Current UVLO	Slew Rate Controlled	5.5 V	1.5 V

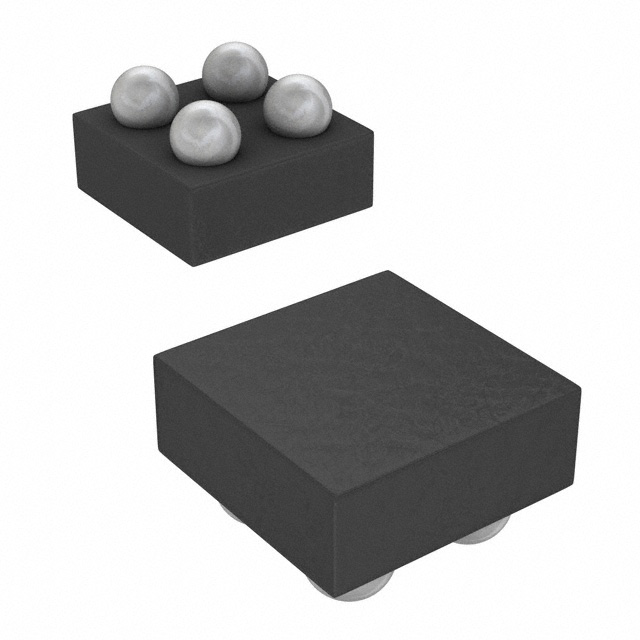

Renesas Electronics Corporation SLG59M1736C	2.2 A	High Side	5.5 V	2.5 V	P-Channel	1:1	General Purpose	4-WLCSP (0.8x0.8)	4-XFBGA WLCSP	1	85 °C	-40 °C	Surface Mount	33 mOhm	CMOS
Renesas Electronics Corporation SLG59M1746C	1 A	High Side	3.6 V	2.7 V	N-Channel	1:1	General Purpose	6-WLCSP	6-XFBGA WLCSP	1	85 °C	-40 °C	Surface Mount	17.6 mOhm	CMOS	On/Off		Load Discharge Slew Rate Controlled	1.5 V	0.25 V	0.71	1.16
Renesas Electronics Corporation SLG59H1009V	4 A	High Side			N-Channel	1:1	General Purpose	18-STQFN (1.6x3)	18-PowerUFQFN	1	85 °C	-40 °C	Surface Mount	13.1 mOhm	CMOS	On/Off	Current Limiting (Adjustable) Over Temperature UVLO	Auto Restart Load Discharge Slew Rate Controlled					20 V
Renesas Electronics Corporation SLG59M1457V	6 A	High Side	5.5 V	2.5 V	N-Channel	1:1	General Purpose	8-FC-TDFN (1.5x2)	8-PowerWFDFN	1	85 °C	-40 °C	Surface Mount	7.8 mOhm	CMOS

Catalog

GreenFET Single P-Channel Reverse Blocking Load Switch

Description

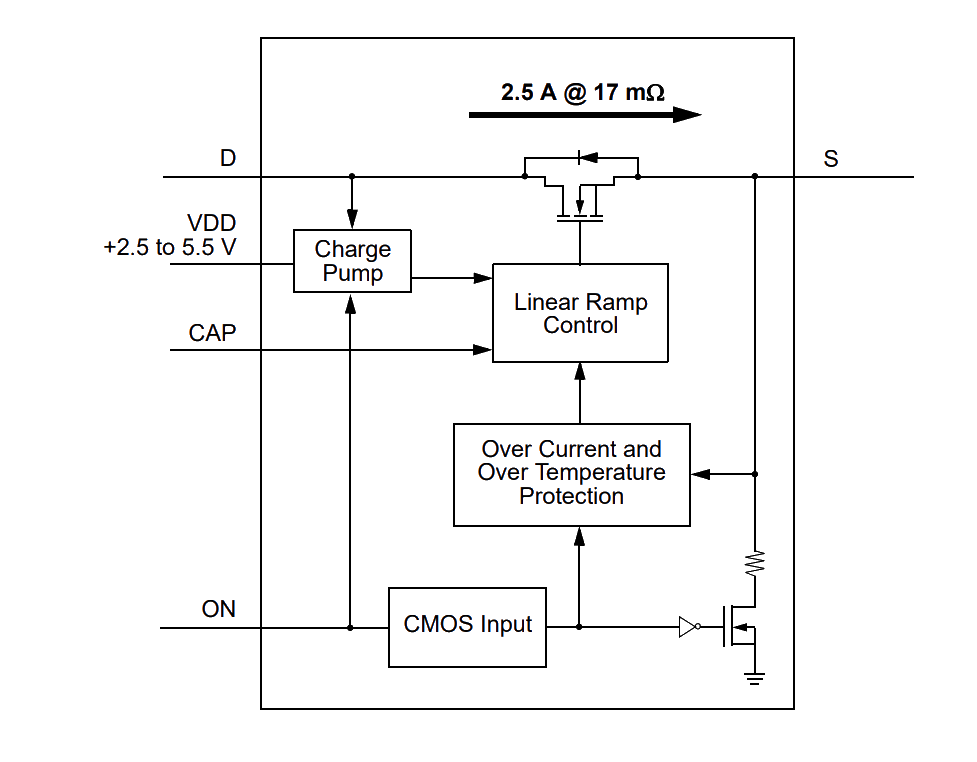

The SLG59M1658V is a high-performance 17mΩ, 2.5A single‑channel nFET load switch that can operate with a 2.5V to 5.5V VDDsupply to switch power rails from as low as 0.9V up to the supply voltage. The SLG59M1658V incorporates two‑level overload current protection, thermal shutdown protection, fast output voltage discharge, and inrush current control which can easily be adjusted by a small external capacitor. Using a proprietary MOSFET design, the SLG59M1658V achieves a stable 17mΩ RDSONacross a wide input voltage range. In addition, the SLG59M1658V’s package also exhibits low thermal resistance for high‑current operation. Fully specified over the -40 °C to 125 °C temperature range, the SLG59M1658V is packaged in a space-efficient, low thermal resistance, RoHS‑compliant 1.0mm x 1.6mm STDFN package.
