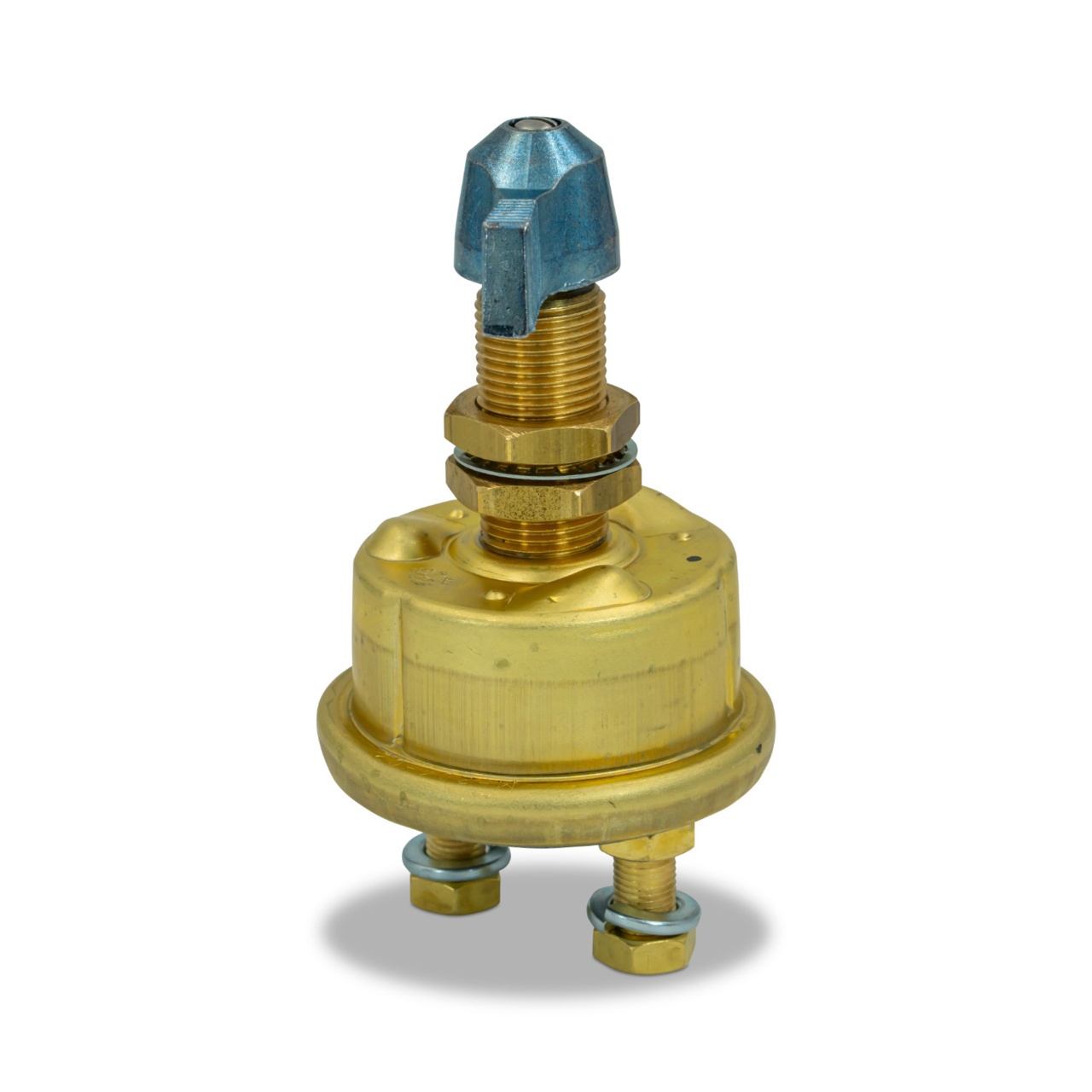

The M-284 Series 36 V 175 A Marine Battery Disconnect Switch is a marine-grade, brass-body master battery disconnect switch for boat and commercial vehicle applications that features single-pole, single-throw (SPST) circuitry. Disconnecting a boat or vehicle battery from the electrical system with a master battery disconnect switch prevents potential thermal events and ensures the system is shut down during maintenance or an emergency. In addition, using a manual battery disconnect switch during periods of inactivity, such as when a boat or vehicle is stored, prevents parasitic loads from draining the battery. This Cole Hersee brand disconnect switch (M-284-02) is rated for 1000 A intermittent at 15 seconds on, 5 minutes off and features silver-plated brass studs. This model also features an O-ring seal at the mounting stem and a gasket seal at the terminal insulator.

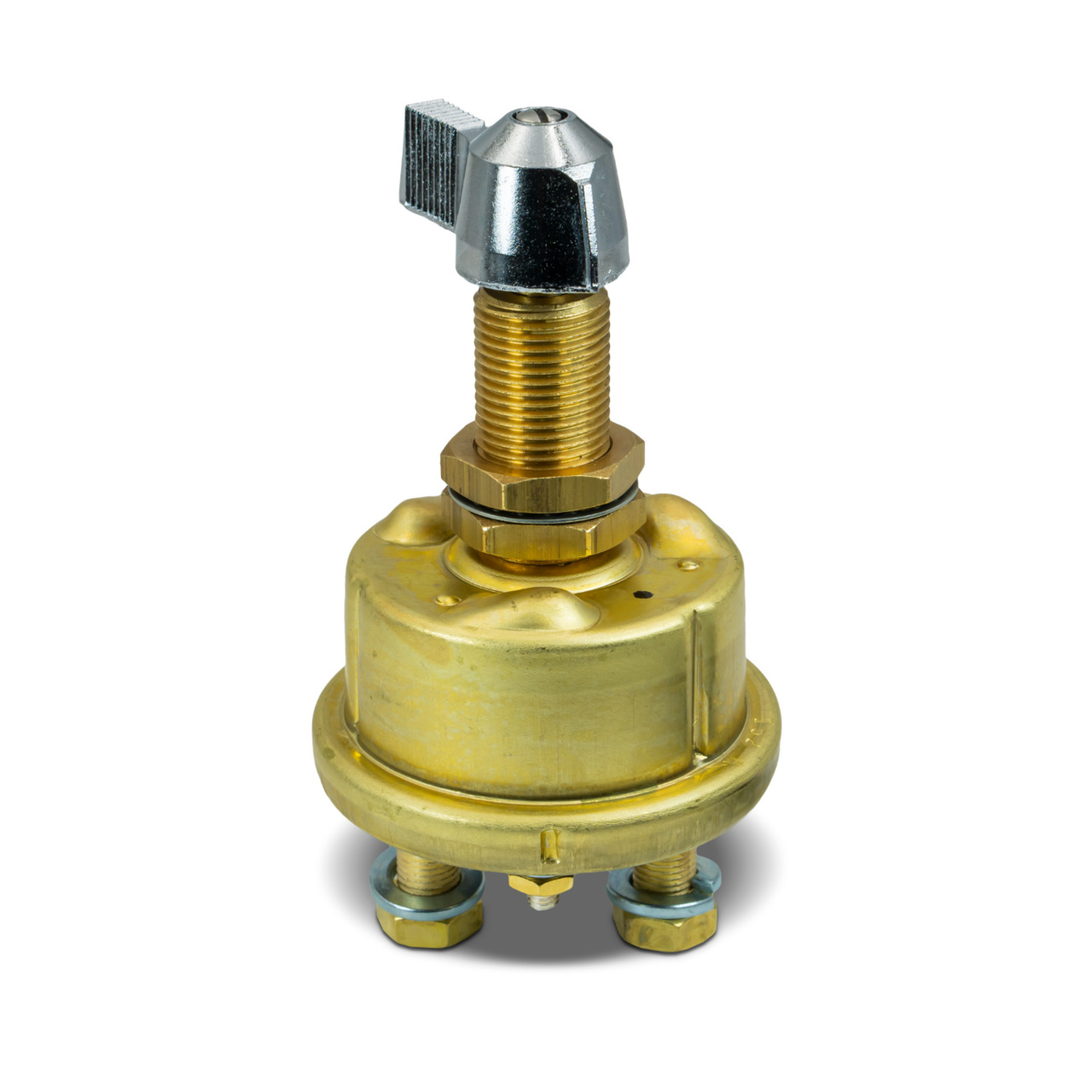

Ideal for boats, commercial marine vehicles, buses, heavy trucks, and emergency vehicles, the M-290 Series 36V DPST Marine-Grade Manual Master Battery Disconnect Switch features a compact design with a marine-grade, brass case and lever actuator. The marine battery disconnect switch has double-pole, single-throw (DPST), normally open (NO) circuitry, which reliably disconnects a battery from a vehicle electrical system. This model of the battery cutoff switch (M-290-01) features a continuous current rating of 175A on its large studs and an O-ring seal in the bushing.

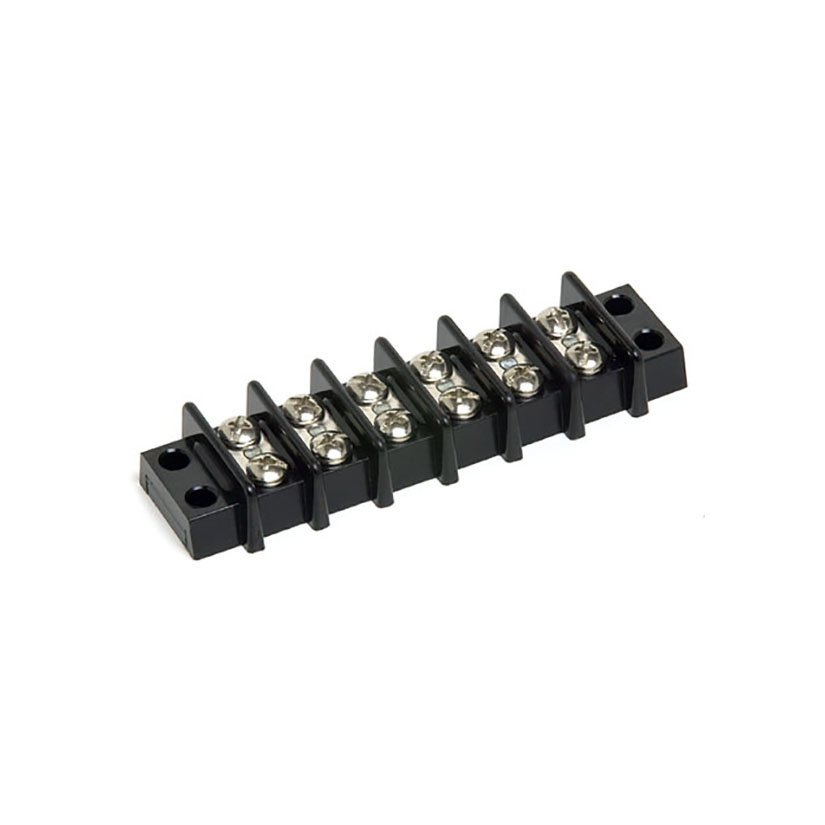

Individual feed terminal block. 6-gang Moisture-trepellent molded insulator base with barrier strips. Nickel-plated brass terminal links and 8-32 binding screws. 1.31W x 4.33"L x 0.67H ((33.33 x 110.1 x 17.0mm). Paired mounting holes 3.93" on centers (99.9mm)

These general-purpose switches are ideal for marine applications but work in all kinds of applications. See specification tab below to select the part that meets your needs. 20A at 12Vdc & 15A at 24Vdc They are weather-resistant with contact areas sealed to IP66 (high pressure wash-resistant). Snaps into a standard rectangular mounting hole 1.450" x 0.830" (36.8 x 21.1mm) in panels from 0.09" to 0.19" thick (2.4 x 4.7mm). Plastic housing, bezel and actuator Silver contacts Brass blade terminals

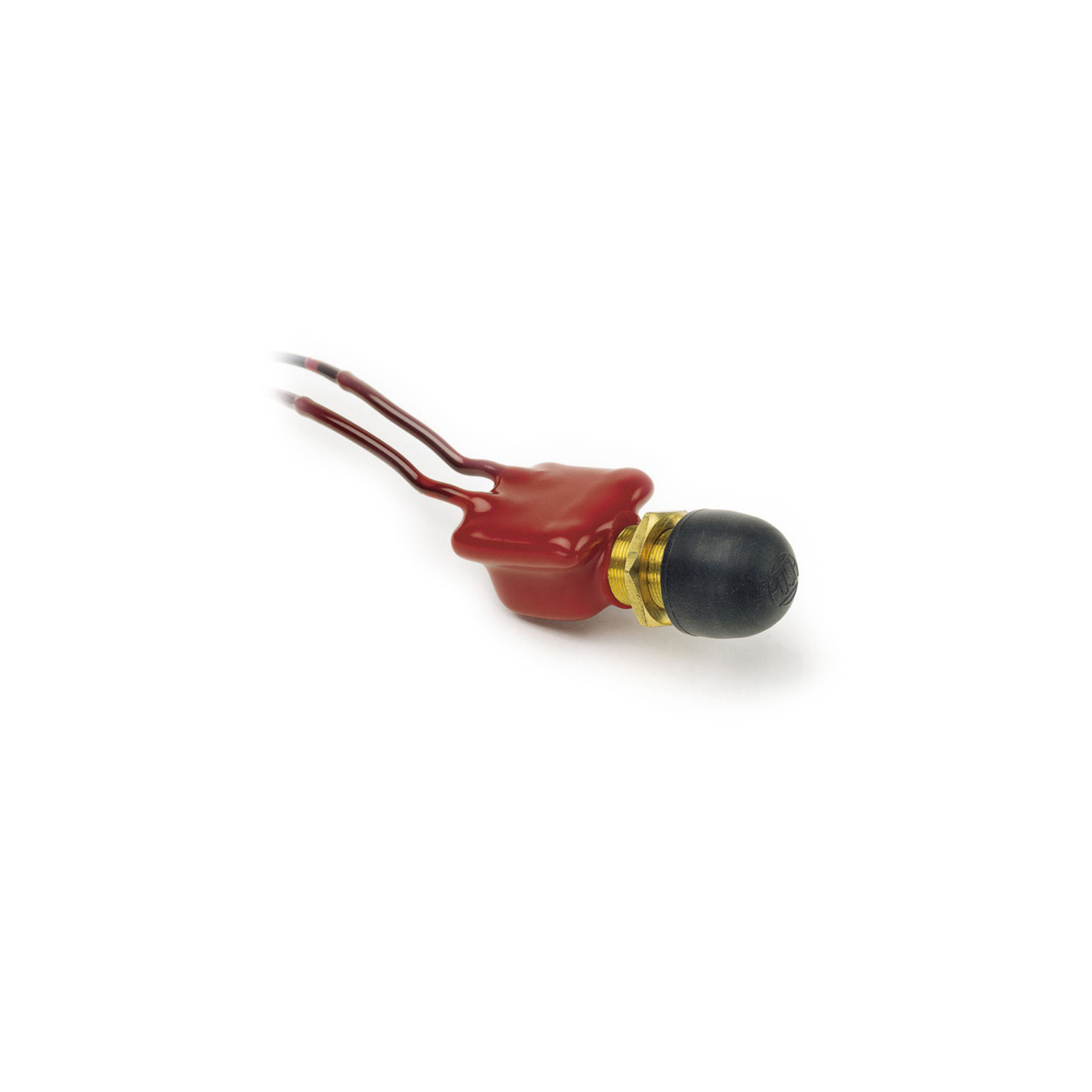

PVC-coatedbody sealed against moisture and dirt, with black rubber snap-on cap (407-03) Fits panels up to 1/2" Corrosion-resistant brass case For applications up to 36V DC On with button depressed, spring return to Off

This pass-thru stud boasts high installation torque values to allow the use of large cable sizes for high current applications. Stud caps are included to protect from accidental shorts.

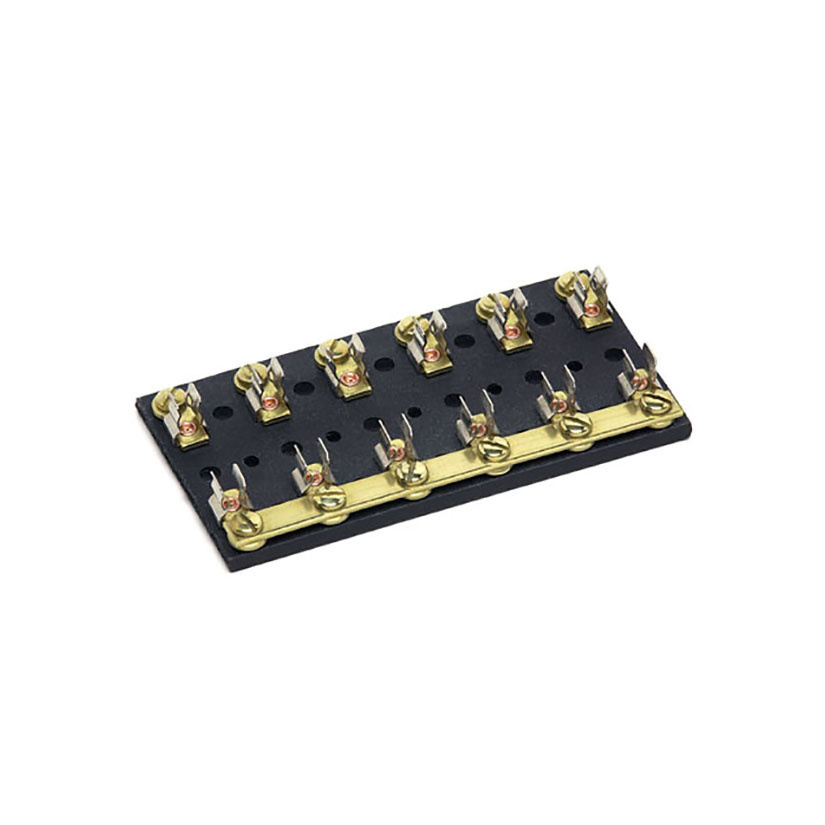

The Glass FBG Series 32V Multi-Pole Bolt-Down SFE/30410 Type Glass Fuse Block is compatible with SFE glass fuses and 30410 type circuit breakers (sold separately). This automotive glass fuse holder (M-641-01) features a solid brass busbar and accommodates 6 fuses or circuit breakers. Brass screws and terminals help ensure reliable fuse connections.

The high reliability Littelfuse varistor is the latest step in increased product performance, and is available for applications requiring quality and reliability assurance levels consistent with military or other standards. (MIL-STD-19500, MIL-S-750, Method 202.) Additionally, Littelfuse varistors are inherently radiation hardened compared to silicon diode suppressors as illustrated in Figure 1. This series of high-reliability varistors involve five categories: DSCC Qualified Parts List (QPL) MIL-R-83530 4 Types Presently Available DSCC Standard Military Drawings Based on MIL-R 83530 63 Types Presently Available: ZA Series- Drawing # 87063 DB Series- Drawing # 90065 Littelfuse High Reliability Series Offers TX Equivalents 29 Types Presently Available Custom Types Processed to Customer-Specific Requirements –(SCD) or to Standard Military Flow
