M-54111 Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Beta
⌘K

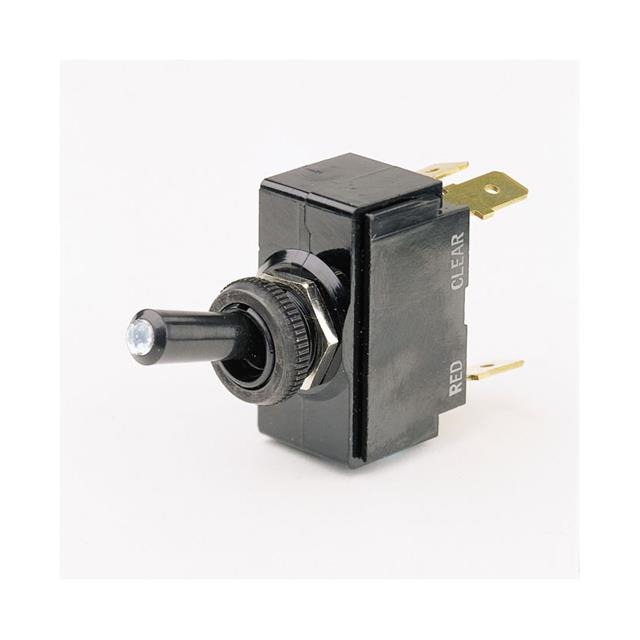

SWITCH TOGGLE SPST 25A 12V
| Part | Voltage Rating - DC | Actuator Length [x] | Actuator Type | Illumination Voltage (Nominal) | Illumination Type, Color | Current Rating (Amps) | Actuator Material | Circuit | Termination Style | Bushing Thread | Switch Function | Illumination | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | 12 V | 17.46 mm | Standard Round | 12 VDC | Incandescent Red | 25 A | Brass Nickel Plated | SPST | Quick Connect - 0.250" (6.3mm) | 15/32-32 | On-Off | Illuminated | 11.9 mm |
