Littelfuse/Commercial Vehicle Products

The MINI® FHM Series 58V Standard-Duty In-Line Waterproof Blade Fuse Holder is ideal for adding accessory and remote circuit protection in automotive and marine applications. It features an integrated cover, which connects with the fuse holder body to form a sealed enclosure that meets IP67 dustproof and waterproof standards. This configuration of the MINI® FHM Series fuse holder (0FHM0001LXN) features a black TPV body and cover and 14 AWG GXL wire leads with black insulation. The lead wires are 3.7" long.

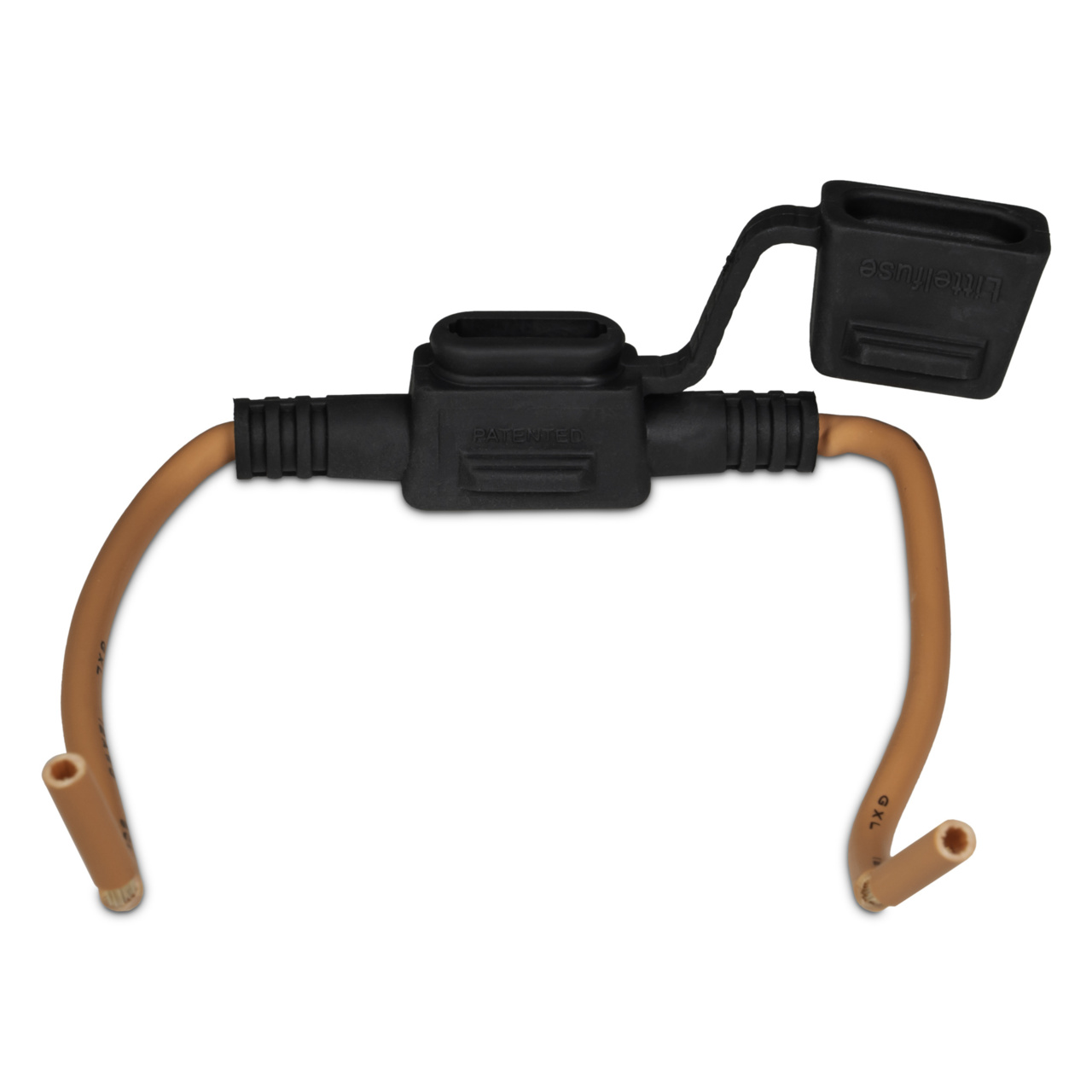

The MINI® FHM Series 58V Heavy-Duty In-Line Waterproof Blade Fuse Holder is ideal for adding accessory and remote circuit protection in automotive and marine applications. It features a built-in cover that connects with the fuse holder body to form a sealed enclosure. The protective enclosure meets IP67 dustproof and waterproof standards. This model of the MINI® FHM Series fuse holder (0FHM0002ZXJB) features a black TPV body and cover and 12 AWG GXL wire leads for heavy-duty applications. The lead wires, one with red insulation and one with orange insulation, are 6.575" (167mm) long and have one 0.315" (8mm) end strip and one 0.67" (17mm) end strip. The UL 94 V-0-rated fuse holder accepts up to 30-amp MINI® blade fuses (sold separately).

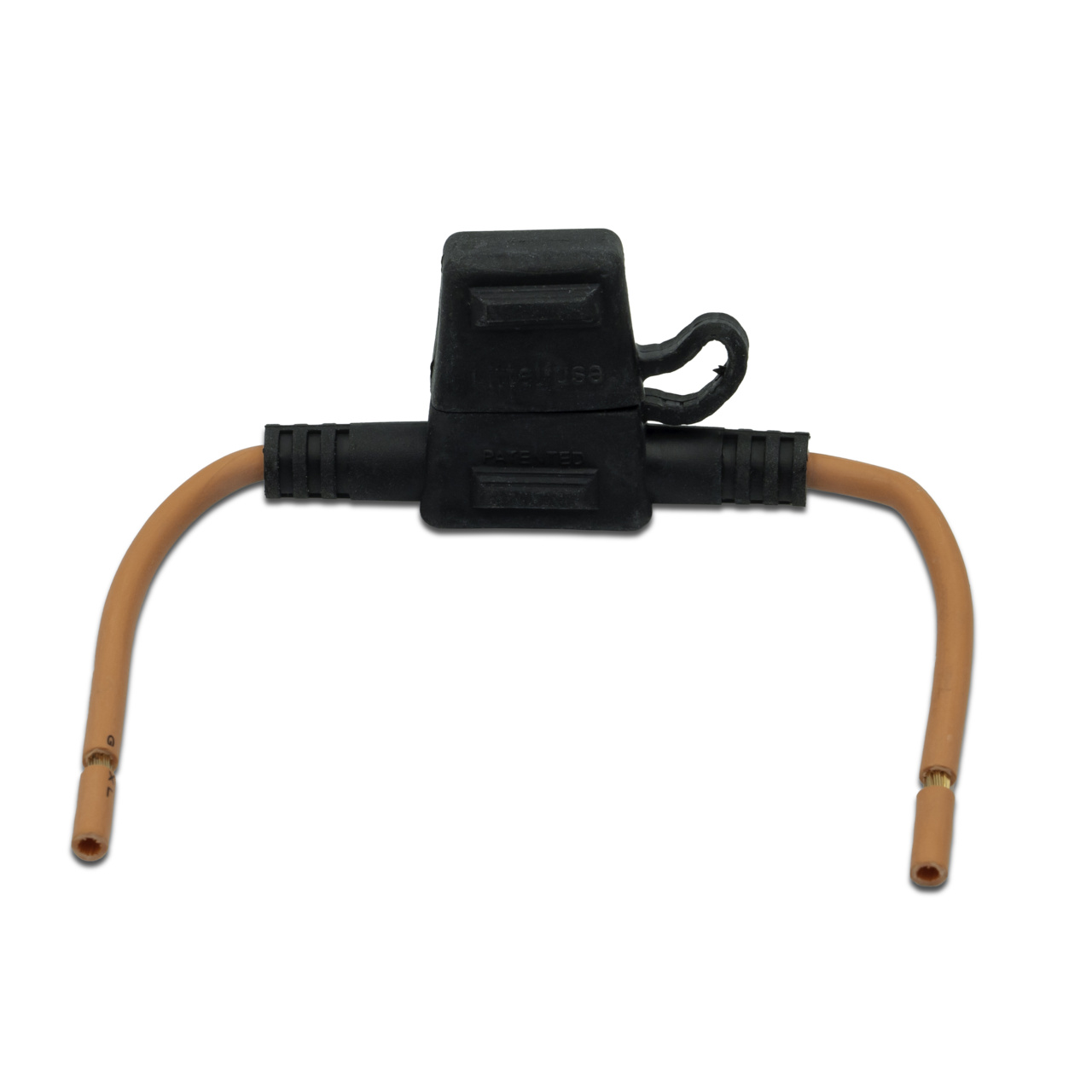

The MINI® FHM Series 58V Heavy-Duty In-Line Waterproof Blade Fuse Holder is ideal for adding accessory and remote circuit protection in automotive and marine applications. It features a built-in cover that connects with the fuse holder body to form a sealed enclosure. The protective enclosure meets IP67 dustproof and waterproof standards. This model of the MINI® FHM Series fuse holder (0FHM0002ZXJF) features a black TPV body and cover and 12 AWG GXL wire leads for heavy-duty applications. The lead wires with orange insulation are 2.36" (60mm) long and have 0.394" (10mm) end strips. The UL 94 V-0-rated fuse holder accepts up to 30-amp MINI® blade fuses (sold separately).

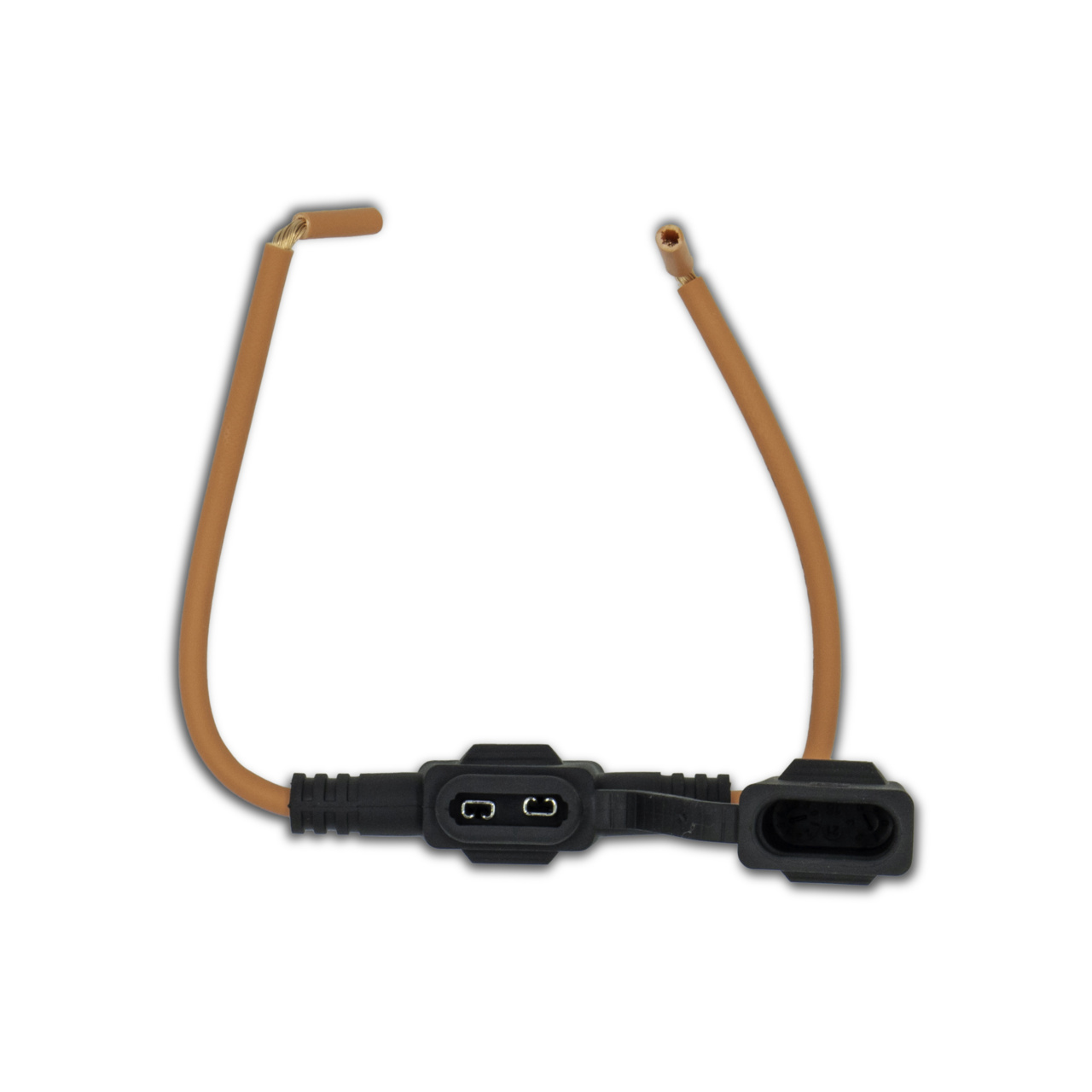

The MINI® FHM Series 58V Heavy-Duty In-Line Waterproof Blade Fuse Holder is ideal for adding accessory and remote circuit protection in automotive and marine applications. It features a built-in cover that connects with the fuse holder body to form a sealed enclosure. The protective enclosure meets IP67 dustproof and waterproof standards. This model of the MINI® FHM Series fuse holder (0FHM0002ZXJL) features a black TPV body and cover and 12 AWG GXL wire leads for heavy-duty applications. The lead wires, one with red insulation and one with orange insulation, are 3.68" long and have 0.48" end strips. The UL 94 V-0-rated fuse holder accepts up to 30-amp MINI® blade fuses (sold separately).

FUSE HOLDER, Mini Inline

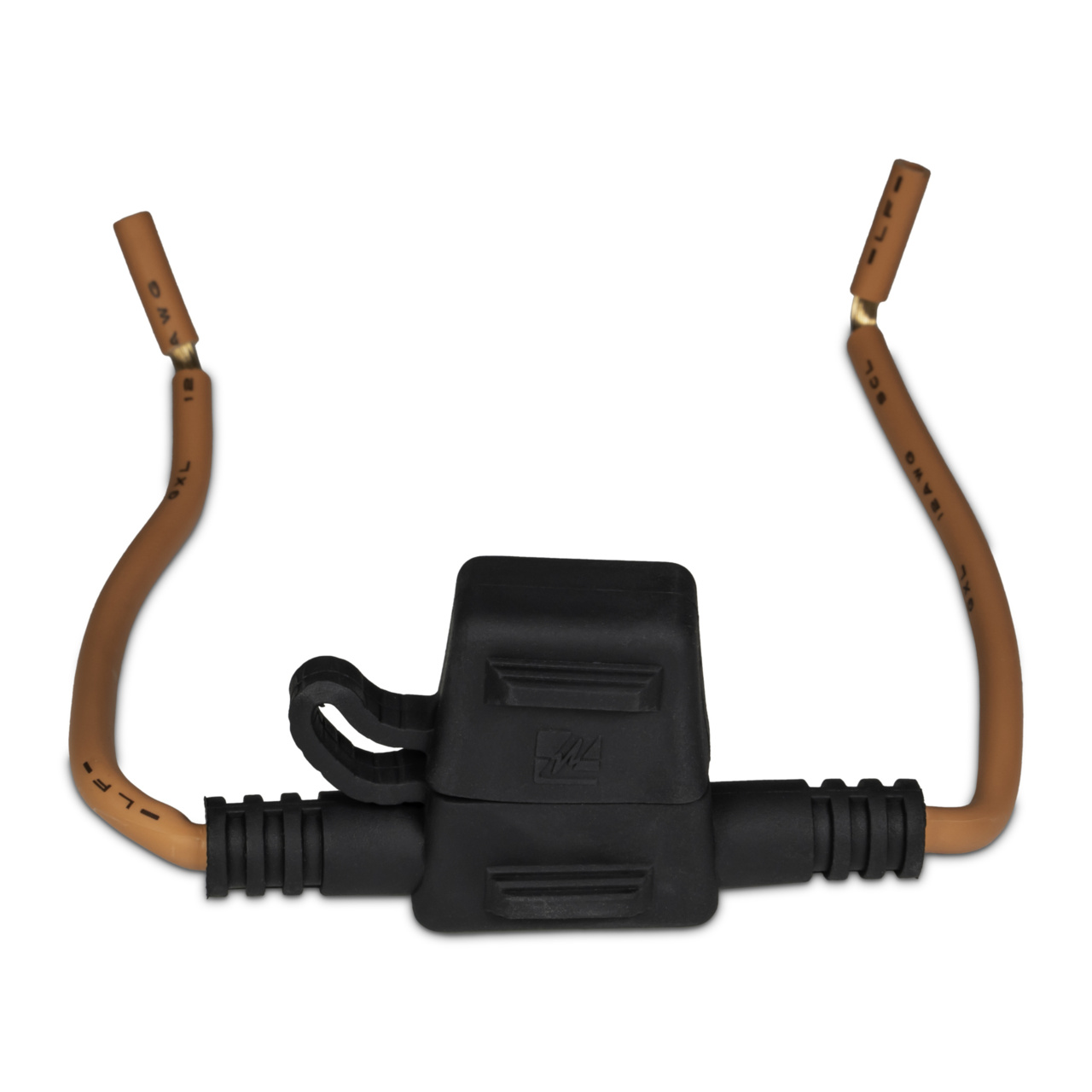

The MINI® FHM 58V Standard-Duty In-Line Waterproof Blade Fuse Holder with 10-Amp Fuse is ideal for adding accessory and remote circuit protection in automotive and marine applications. It features an integrated cover, which connects with the fuse holder body to form a sealed enclosure that meets IP67 dustproof and waterproof standards. This configuration of the MINI® FHM Series fuse holder (0FHM0003ZXJC-F10) features a black TPV body and cover, plus 16 AWG GXL wire leads with black insulation. A 10-amp MINI® blade fuse is included.

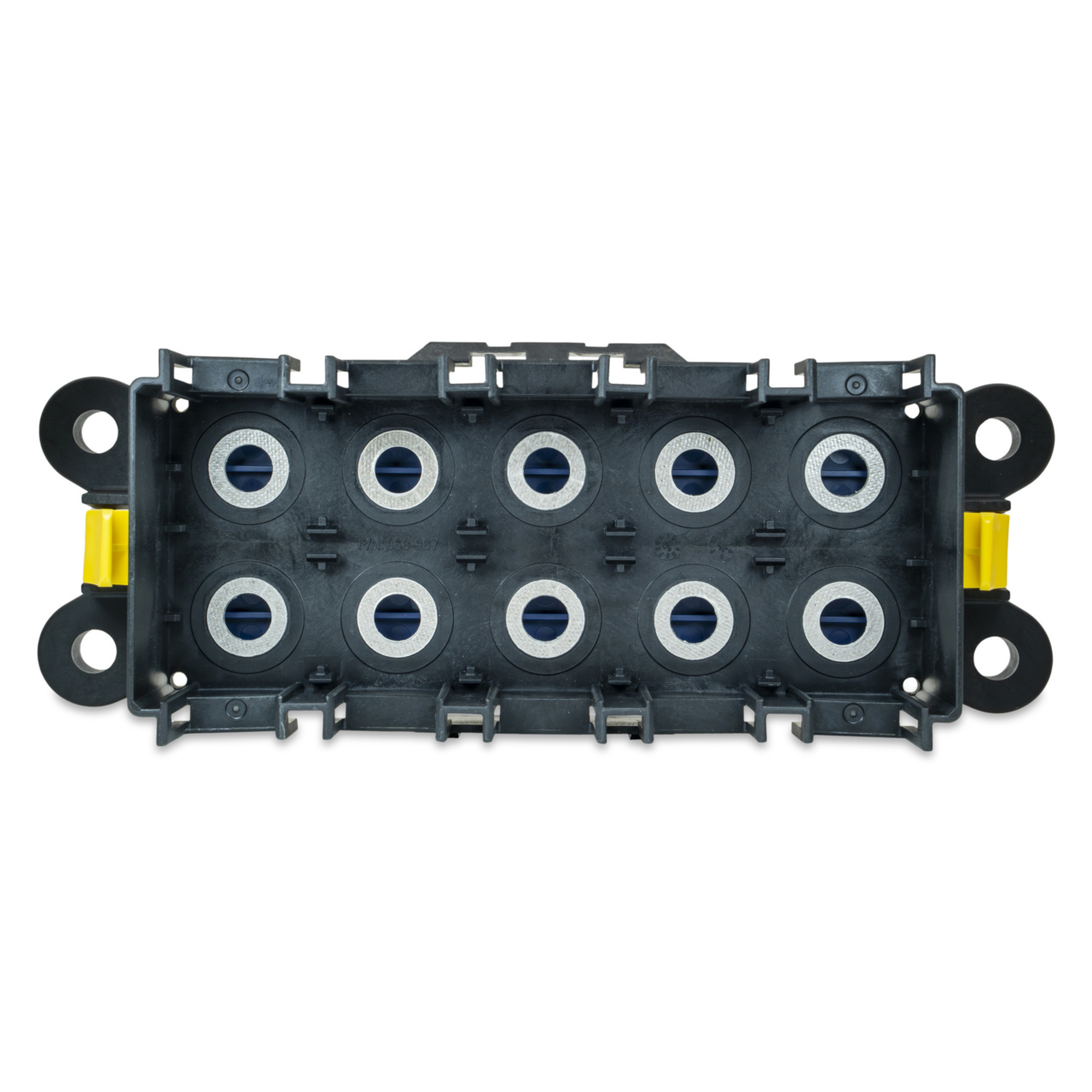

The ZCASE® FHZ bolt-down fuse box (0FHZ0003Z) is designed for primary high-current power distribution. This model of the ZCASE® FHZ fuse box includes the base, bottom caps, cover, and latches, allowing you to configure your own power distribution module with available M10, M8, or M6 studs, dust covers, bus bars and other parts.

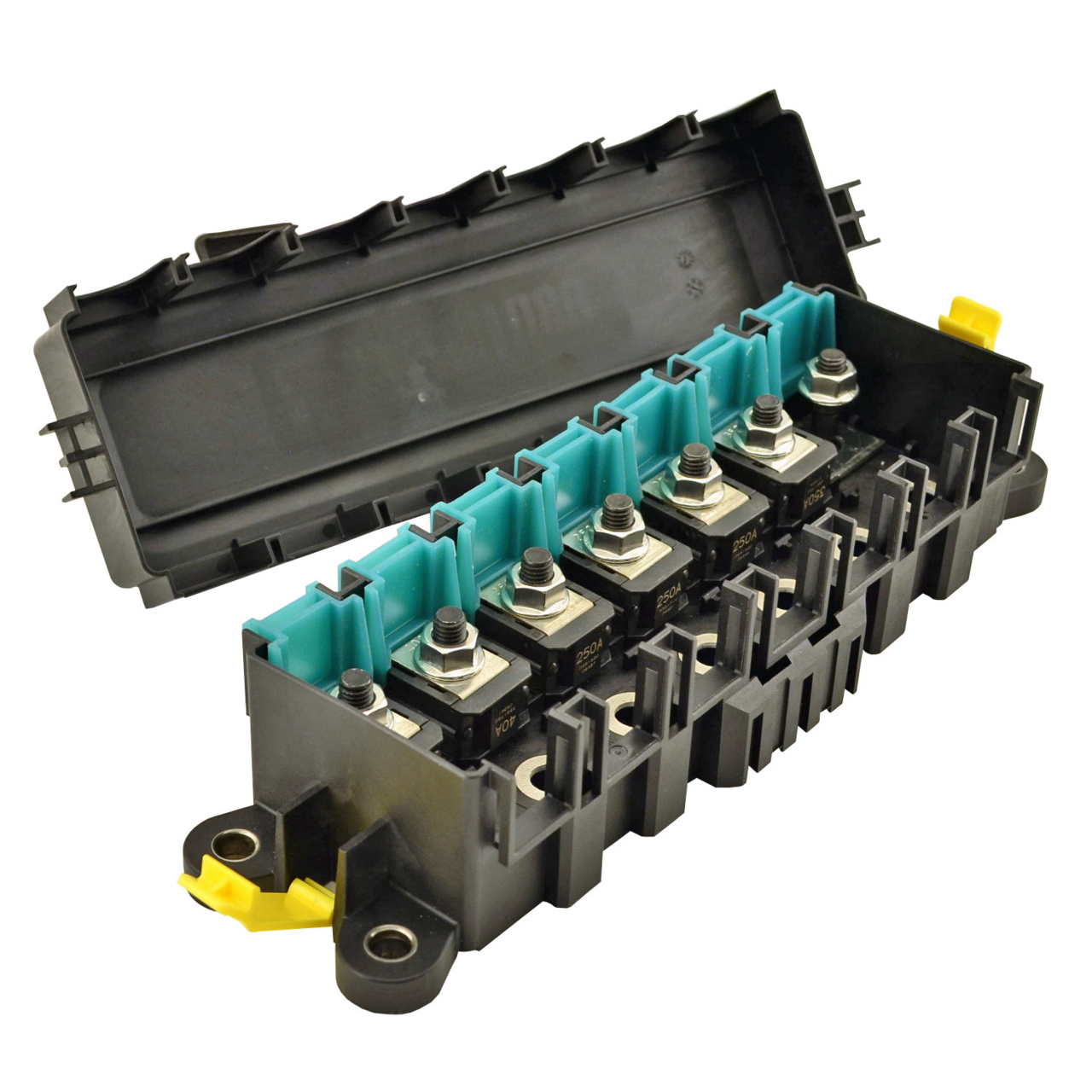

This ZCASE® FHZ bolt-down power distribution module (0FHZ0007Z) is a seven-stud fuse holder designed for primary high-current power distribution. It features an M8 input stud and six M8 output studs. The unsealed configuration of the ZCASE® FHZ fuse box includes a seven-position bus bar, and it comes with dust covers, a tether, and a cover with latches to protect installed fuses (sold separately) from debris.

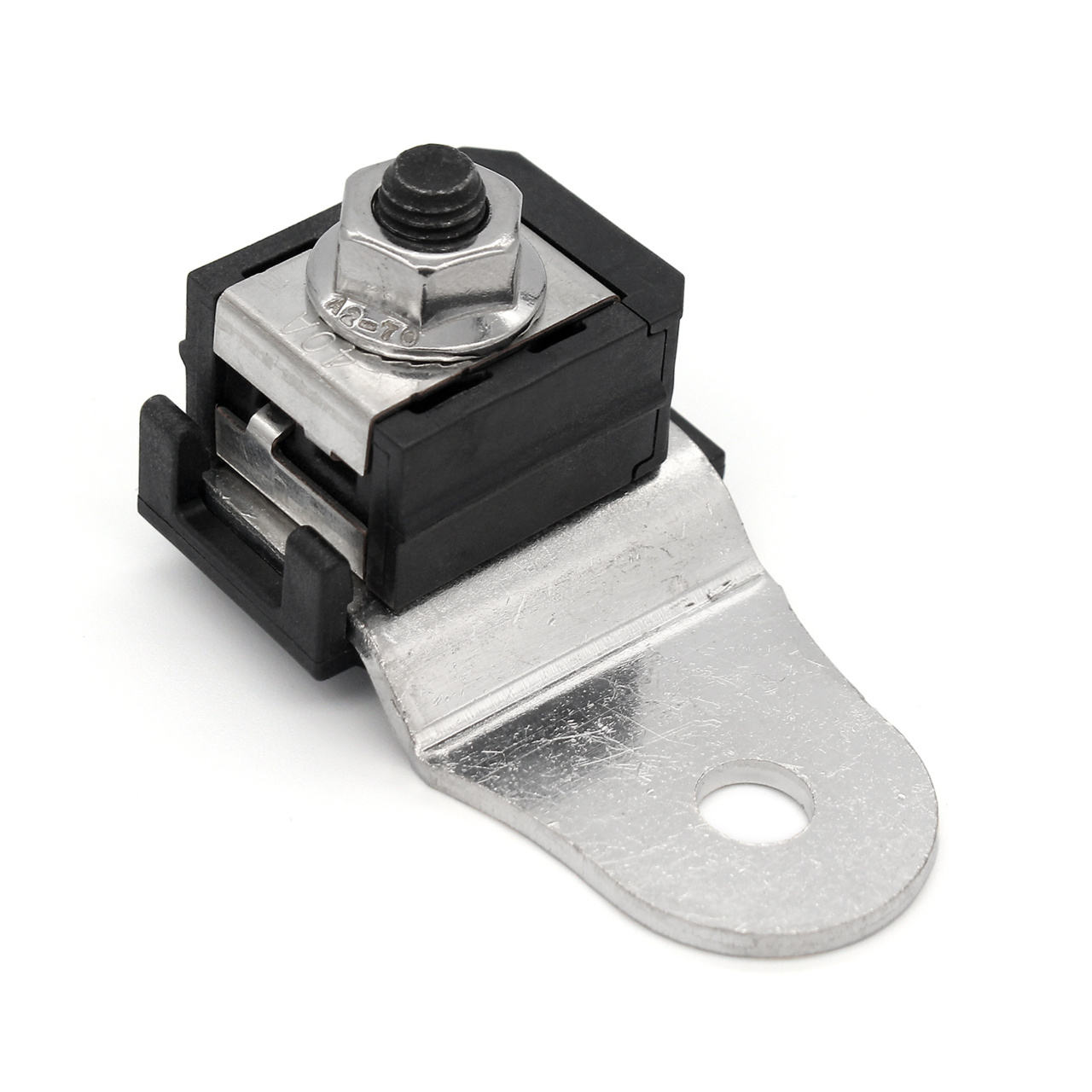

The ZCASE® SMZ Series Bolt-Down Stud-Mount Fuse Holder reduces the need for wiring and parts by allowing ZCASE® high-current fuses to be directly installed on an alternator, battery switch, or electrical relay. Thanks to an insulated M8 or M10 stud on the busbar, the compatible fuse (sold separately) and output cable with a ring terminal (not included) can be assembled using the included standard nut.The SMZ Series M8 ZCASE® fuse holder is available with an M6, M8, or M10 mounting hole to meet the requirements of various applications, and the M10 ZCASE® fuse holder features an M10 mounting hole. Various configurations, including with a protective cover for the fuse only, with a protective cover for the fuse and mounting stud, and without a cover, are available.
