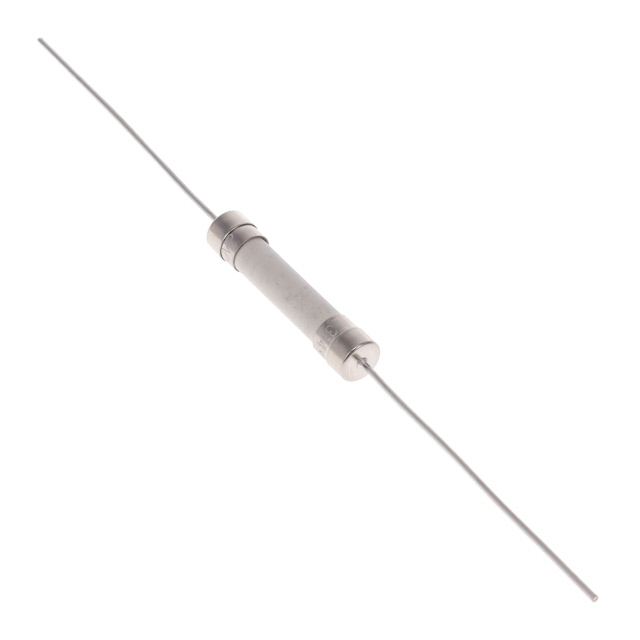

FUSE 250V FA 3AB ROHS 30A
Description
AI
The 3AB Fast-Acting Fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected.
Beta
⌘K
FUSE 250V FA 3AB ROHS 30A
FUSE 250V FA 3AB ROHS 30A
| Part | DC Cold Resistance | Response Time | Operating Temperature [Min] | Operating Temperature [Max] | Melting I²t | Fuse Type | Voltage Rating - DC | Package / Case [y] | Package / Case [x] | Package / Case | Breaking Capacity @ Rated Voltage | Voltage Rating - AC | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Mounting Type | Approval Agency | Current Rating (Amps) | Melting I˛t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.00182 Ohms | Fast Blow | -55 C | 125 °C | 2490 I²t | Cartridge Ceramic | 125 VDC | 0.25 in | 3AB 3AG | 100 A 400 A | 250 V | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | Requires Holder | CE K-Mark PSE UL | 30 A | ||
LITTELFUSE | 0.00182 Ohms | Fast Blow | -55 C | 125 °C | 2490 I²t | Cartridge Ceramic | 150 V | 0.25 in | 3AB 3AG | 100 A 400 A | 250 V | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | Requires Holder | CE KC PSE UL | 30 A | 2490 | |
 LITTELFUSE | 0.00182 Ohms | Fast Blow | -55 C | 125 °C | 2490 I²t | Cartridge Ceramic | 0.25 in 0.25 " | 3AB 3AG | 100 A | 250 V | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | Requires Holder Through Hole | CE KC METI UL | 30 A | 2490 | ||
 LITTELFUSE | 0.00182 Ohms | Fast Blow | -55 C | 125 °C | 2490 I²t | Cartridge Ceramic | 125 VDC | 0.25 in | 3AB 3AG | 100 A 400 A | 250 V | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | Requires Holder | CE K-Mark PSE UL | 30 A |
