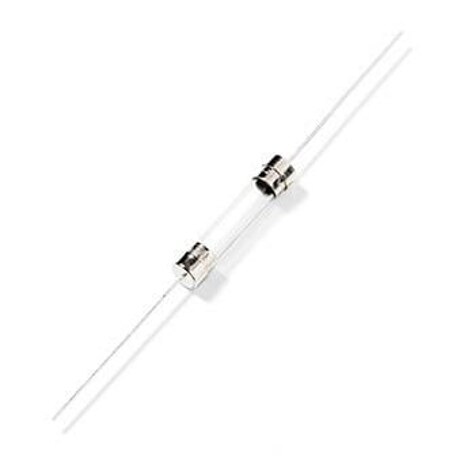

FUSE 250V SB PT 3AG Pb-FREE .150A
Description
AI
The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and costeffective circuit protection.
Beta
⌘K
FUSE 250V SB PT 3AG Pb-FREE .150A
FUSE 250V SB PT 3AG Pb-FREE .150A
| Part | Melting I²t | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Breaking Capacity @ Rated Voltage | Current Rating (Amps) | Voltage Rating - AC | Approval Agency | Mounting Type | Response Time | Package / Case [y] | Package / Case | Package / Case [x] | Fuse Type | Operating Temperature [Min] | Operating Temperature [Max] | Melting I˛t | DC Cold Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.27 I²t | 0.275 in | 1.275 in | 6.99 mm | 32.39 mm | 35 A | 150 mA | 250 V | CE CSA UL | Through Hole | Slow Blow | 3AB 3AG | 0.25 " | Cartridge Glass | -55 C | 125 °C | |||
 LITTELFUSE | 0.27 I²t | 0.275 in | 1.275 in | 6.99 mm | 32.39 mm | 35 A | 150 mA | 250 V | CE CSA UL | Through Hole | Slow Blow | 3AB 3AG | 0.25 " | Cartridge Glass | -55 C | 125 °C | 0.27 | 20 Ohms | |
 LITTELFUSE | 0.27 I²t | 0.275 in | 1.275 in | 6.99 mm | 32.39 mm | 35 A | 150 mA | 250 V | CE CSA UL | Through Hole | Slow Blow | 3AB 3AG | 0.25 " | Cartridge Glass | -55 C | 125 °C | 0.27 | 20 Ohms |
