Isocom Components is a UK-based manufacturer of optoelectronic devices including optocouplers, optoisolators, solid state relays, and infrared components for space, aerospace, and defense applications.
Parts that are not part of a series
Company background and product focus
Isocom Components 2004 LTD is a UK-based company established in 2004 with over thirty years of expertise in infrared optoelectronic devices. As an AS9100 and ISO 9001 approved manufacturer, Isocom specializes in high-reliability components for space, aerospace, and defense applications.
Their product range includes optocouplers, optoisolators, MOSFETs, solid state relays, infrared emitters and detectors, phototransistors, VCSEL lasers, and voltage regulators. Isocom's components have been selected for prestigious space programs including the International Space Station, Galileo, Glonass, and ExoMars Pancam.
© 2026 Zenode. All rights reserved.
Product families from Isocom Components 2004 LTD
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
| Series | Category | Parts | Status | Description |
|---|---|---|---|---|
| Optocouplers, Optoisolators | 12 | Active | ||
| Optocouplers, Optoisolators | 1 | Active | ||
| Transistor, Photovoltaic Output Optoisolators | 1 | Active | ||
| Transistor, Photovoltaic Output Optoisolators | 1 | Active | ||
| Optocouplers, Optoisolators | 1 | Active | ||
| Transistor, Photovoltaic Output Optoisolators | 1 | Active | ||
| Isolators | 1 | Active | ||
| Optocouplers, Optoisolators | 1 | Active | ||
| Logic Output Optoisolators | 1 | Active | ||
| Isolators | 1 | Active |
Parts from Isocom Components 2004 LTD that are not part of a series
| Part Information | Pricing (lowest) | Output Type | Number of Channels | Current - Output / Channel | Rise Time (Typ) | Fall Time (Typ) | Current - DC Forward (If) (Max) | Package Length | Package Name | Package Width | Input Type | Voltage - Isolation | Vce Saturation (Max) | Voltage - Forward (Vf) (Typ) | Mounting Type | Current Transfer Ratio (Min) | Voltage - Output (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

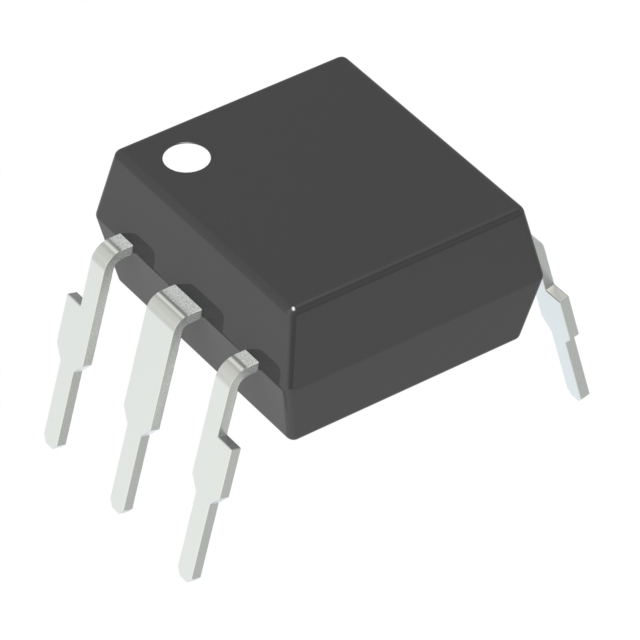

 Isocom Components 2004 LTD OPTOISO 5.3KV TRANS W/BASE 6-DIP | Sign in to see pricing | Transistor with Base | 1 | 50 mA | 2 µs | 2 µs | 60 mA | 0.3 in | 6-DIP | 7.62 mm | DC | 5.3 kV | 500 mV | 1.2 V | Through Hole | 20 % | 30 V | -55 °C | 100 °C | — |
Isocom Components 2004 LTD 6PIN TRANSISTOR, SINGLE OPTOCOUP | Sign in to see pricing | Transistor with Base | 1 | 50 mA | 2 µs | 2 µs | 60 mA | 10.16 mm | 6-DIP | 10.16 mm | DC | 5.3 kV | 500 mV | 1.2 V | Through Hole | 20 % | 30 V | -55 °C | 100 °C | — |
 Isocom Components 2004 LTD OPTOISO 5.3KV 1CH TRANS W/BASE | Sign in to see pricing | Transistor with Base | 1 | 50 mA | 2 µs | 2 µs | 60 mA | — | — | — | DC | 5.3 kV | 500 mV | 1.2 V | Surface Mount | 20 % | 30 V | -55 °C | 100 °C | 6-SMD, Gull Wing |
Isocom Components 2004 LTD OPTOCPLR, TRANSISTOR, 1CH, 7.5KV, SMDDIP ROHS COMPLIANT: YES | Sign in to see pricing | Transistor with Base | 1 | 50 mA | 2 µs | 2 µs | 60 mA | — | — | — | DC | 5.3 kV | 500 mV | 1.2 V | Surface Mount | 20 % | 30 V | -55 °C | 100 °C | 6-SMD, Gull Wing |
 Isocom Components 2004 LTD OPTOISO 5.3KV TRANS W/BASE 6-DIP | Sign in to see pricing | Transistor with Base | 1 | 50 mA | 2 µs | 2 µs | 60 mA | 0.3 in | 6-DIP | 7.62 mm | DC | 5.3 kV | 500 mV | 1.2 V | Through Hole | 20 % | 30 V | -55 °C | 100 °C | — |
Isocom Components 2004 LTD OPTOISO 5.3KV TRANS W/BASE 6-DIP | Sign in to see pricing | Transistor with Base | 1 | 50 mA | 2 µs | 2 µs | 60 mA | 10.16 mm | 6-DIP | 10.16 mm | DC | 5.3 kV | 500 mV | 1.2 V | Through Hole | 20 % | 30 V | -55 °C | 100 °C | — |
Isocom Components 2004 LTD OPTOISO 5.3KV TRANS W/BASE 6-SMD | Sign in to see pricing | Transistor with Base | 1 | 50 mA | 2 µs | 2 µs | 60 mA | — | 6-SMD | — | DC | 5.3 kV | 500 mV | 1.2 V | Surface Mount | 20 % | 30 V | -55 °C | 100 °C | 6-SMD, Gull Wing |
Isocom Components 2004 LTD OPTOISO 5.3KV 1CH TRANS W/BASE | Sign in to see pricing | Transistor with Base | 1 | 50 mA | 2 µs | 2 µs | 60 mA | — | — | — | DC | 5.3 kV | 500 mV | 1.2 V | Surface Mount | 20 % | 30 V | -55 °C | 100 °C | 6-SMD, Gull Wing |
Isocom Components 2004 LTD OPTOISO 5.3KV TRANS W/BASE 6-DIP | Sign in to see pricing | Transistor with Base | 1 | 50 mA | 2 µs | 2 µs | 60 mA | 0.3 in | 6-DIP | 7.62 mm | DC | 5.3 kV | 500 mV | 1.2 V | Through Hole | 20 % | 30 V | -55 °C | 100 °C | — |
Isocom Components 2004 LTD OPTOISO 5.3KV TRANS W/BASE 6-DIP | Sign in to see pricing | Transistor with Base | 1 | 50 mA | 2 µs | 2 µs | 60 mA | 10.16 mm | 6-DIP | 10.16 mm | DC | 5.3 kV | 500 mV | 1.2 V | Through Hole | 20 % | 30 V | -55 °C | 100 °C | — |
