ICPL0453 Series
Manufacturer: Isocom Components 2004 LTD
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

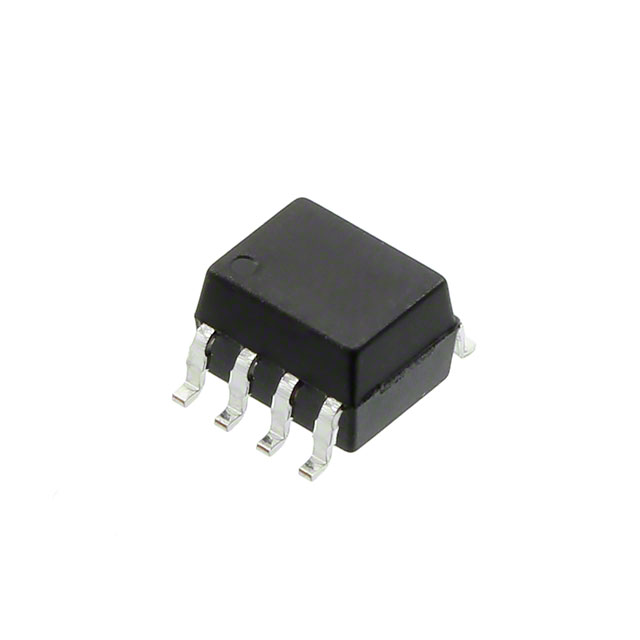

OPTOCPLR, TRANS, 1CH, 3.75KV, SOIC-8 ROHS COMPLIANT: YES
| Part | Voltage - Output (Max) | Current Transfer Ratio (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Current - DC Forward (If) (Max) | Output Type | Turn Off Time (Max) | Turn On Time (Typ) | Current - Output / Channel | Number of Channels | Voltage - Isolation | Input Type | Package Length | Package Name | Package Width | Current Transfer Ratio (Min) | Mounting Type | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Isocom Components 2004 LTD | 20 V | 50 % | -55 °C | 100 °C | 25 mA | Transistor | 800 ns | 800 ns | 8 mA | 1 | 3750 VDC | DC | 0.154 in | 8-SOIC | 3.9 mm | 19 % | Surface Mount | 1.5 V |
